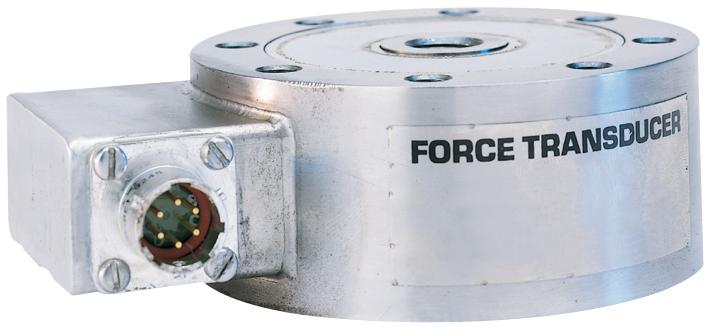

OMEGA LCHD1K Load Cell
The LCHD-1K from Omega is a low-profile pancake-style load cell designed for tension and compression measurements. Made entirely of stainless steel with high-quality strain gauges, it ensures long-term stability and reliability in harsh environments. Featuring mounting through holes, a threaded center shaft, and welded stabilizing diaphragms, it minimizes off-center effects for accurate measurement. Suitable for smooth, flat surfaces, it offers high accuracy, easy installation, and 0.25% interchangeability. The sensor operates at 10 VDC excitation, providing a 3 mV/V output and excellent linearity, hysteresis, and repeatability, making it ideal for scale, sensing, and instrumentation applications.
OMEGA LCHD1K Load Cell Specifications:
- Material: Stainless steel
- Capacity: 1,000 lb (455 kgf)
- Output: 3 mV/V ±0.25% FSO
- Linearity: ±0.10% FSO
- Hysteresis: ±0.08% FSO
- Repeatability: ±0.03% FSO
- Zero Balance: +1% of FSO
- Operating Temp Range: -54 to 121°C (-65 to 250°F)
- Excitation: 10 Vdc (max 15 V)
- Dimensions: Includes mounting holes and threaded shaft
- Construction: All stainless steel with welded stabilizing diaphragms
- Calibration: 5-point NIST-traceable calibration
- Connection: Mating connector included
- Compliance: Suitable for scale and instrumentation applications
Buy the Buy Omega Load Cell Part Number LCHD1K Online
Purchase the Omega LCHD-1K load cell online today to benefit from its low-profile, stainless steel construction, high accuracy, and easy installation. Designed for tension and compression measurement, this sensor provides 3 mV/V output, excellent linearity, and repeatability, making it ideal for scale, sensing, and instrumentation applications. With a 1,000 lb capacity and 0.25% interchangeability, it ensures long-term stability even in harsh environments. Order now with included mating connector and calibration for fast, reliable delivery.
Buy Omega load cell LCHD-1K now and experience unmatched reliability and high-precision measurement capabilities for your force sensing needs.
Frequently Asked Questions
Where can I buy OMEGA LCHD1K?
You can click on the BUY or RFQ button to purchase LCHD1K from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LCHD1K?
You can download the LCHD1K datasheet or visit the OMEGA website for support.
Who is the manufacturer of LCHD1K?
OMEGA
