OMEGA LCCD500 Load Cell

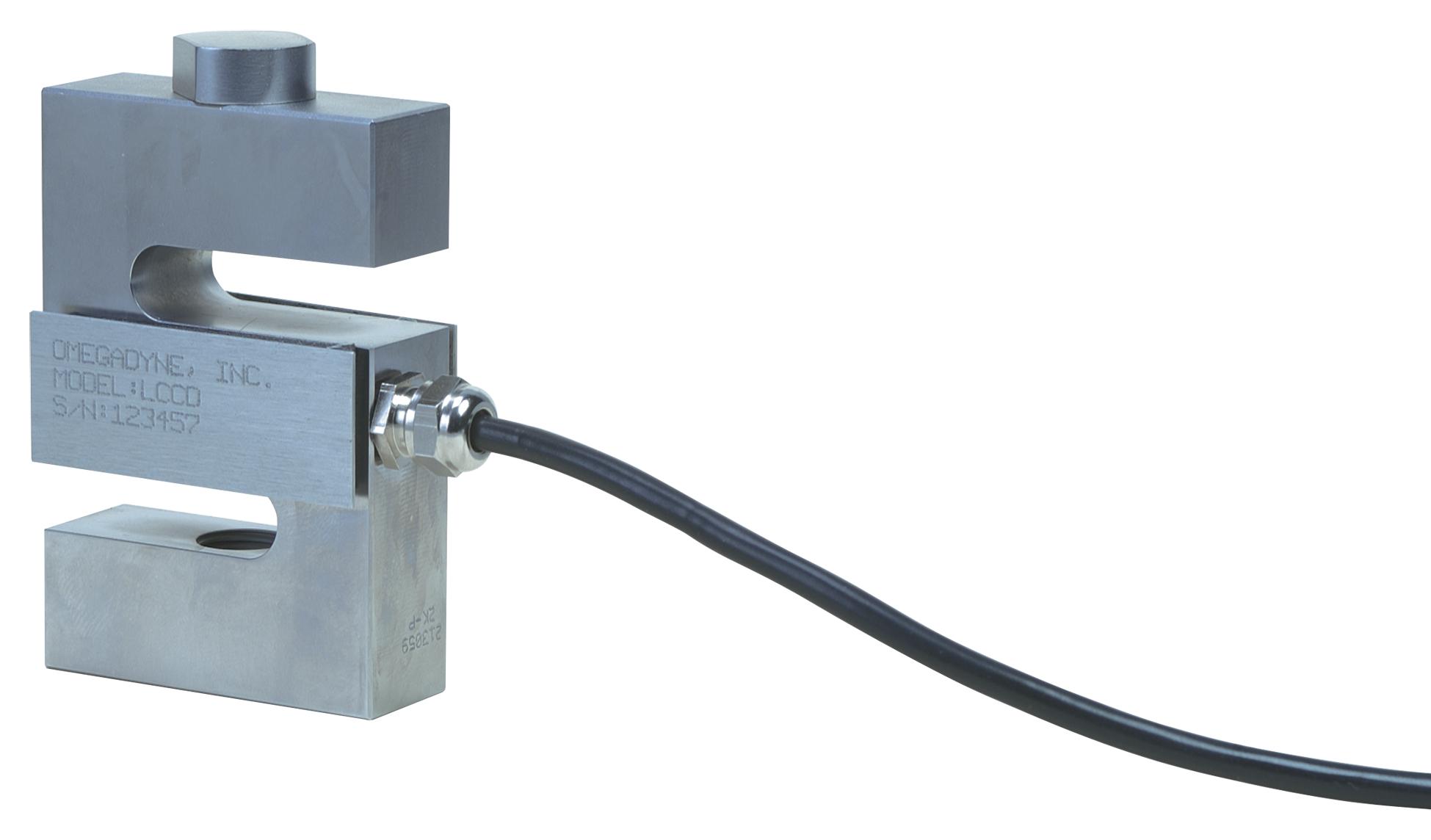

The LCCD-500 is a stainless steel S-beam load cell capable of measuring up to 500 pounds (227 kg). Designed for industrial use, it features an environmentally protected IP67 rating, a 10VDC excitation voltage, and an output of 3mV/V with ±0.25% interchangeability. It offers high accuracy with 0.03% FS creep, 0.02% hysteresis, and 0.01% repeatability. Operating from -18°C to 66°C (0°F to 150°F), the load cell's maximum safe load is 150% of capacity. Made of 17-4PH stainless steel, it includes a shielded 6-meter PVC cable, calibration, and is compatible with various meters.
OMEGA LCCD500 Load Cell Specifications:
- Capacity: 500 lb (227 kg)
- Material: 17-4PH stainless steel
- Protection Class: IP67
- Excitation Voltage: 10 VDC (up to 15 VDC)
- Output: 3.0 mV/V +0.25%
- Creep in 20 min: 0.03% FS
- Operating Temperature: -18 to 66°C (0 to 150°F)
- Zero Balance: 1% of full scale
- Resistances: 350 ohms nominal
- Cable: 6 m (20 ft), 4-conductor shielded PVC wire, 22 AWG
- Safe Load: 150% of capacity
- Ultimate Load: 300% of capacity
- Construction: 17-4PH stainless steel
- Calibration: Includes 5-point NIST-traceable calibration
- Shunt Data: 59K ohm
Buy the Envirotech Series Load Cell: 500 lb Stainless Steel IP67 Protection
Order the Envirotech 500 lb stainless steel load cell online today and ensure precise, reliable weight measurement for industrial applications. Featuring IP67 protection, high accuracy, and a durable construction, this load cell is ideal for demanding environments. Includes a 5-point NIST-traceable calibration and 59K ohm shunt data, providing confidence in your measurements. Easy to install with a shielded 6-meter PVC cable and compatible with multiple digital meters, making it an excellent choice for industrial weighing and force measurement tasks.
Buy Envirotech 500 lb capacity stainless steel load cell now and experience unmatched reliability and performance in harsh industrial environments.
Frequently Asked Questions
Where can I buy OMEGA LCCD500?
You can click on the BUY or RFQ button to purchase LCCD500 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LCCD500?
You can download the LCCD500 datasheet or visit the OMEGA website for support.
Who is the manufacturer of LCCD500?
OMEGA
