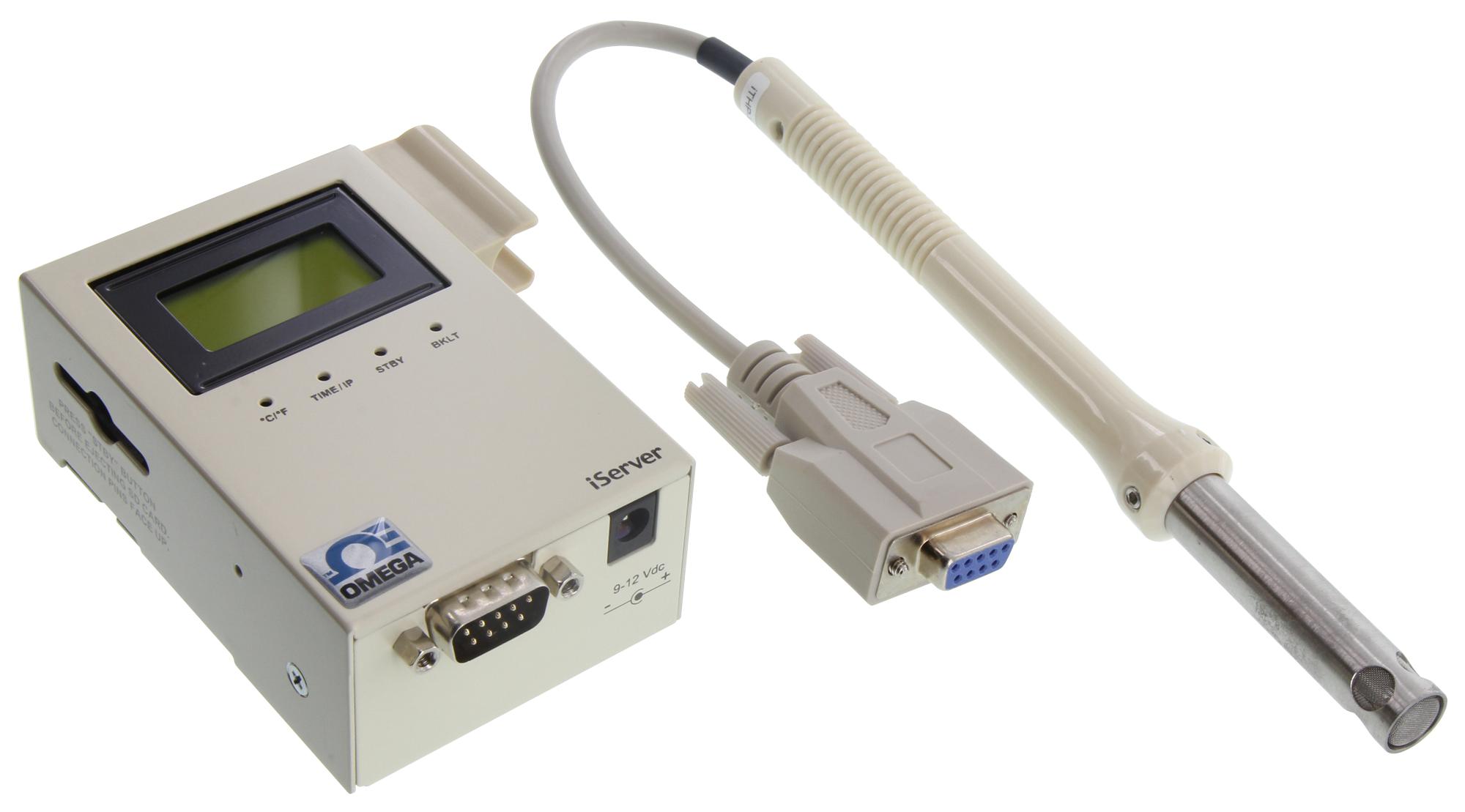

OMEGA ITHXSD Temperature and Humidity Data Logger
The Omega ITHX-SD is an advanced temperature and humidity data logger with Ethernet connectivity, allowing remote monitoring and recording through a web browser. It features real-time readings, chart visualization, and data logging on a removable 2GB SD card for up to seven years at ten-second intervals. The device includes email alerts, webcam linking, a durable steel housing, dual relays, and supports universal power input. Its sensors offer high accuracy with ±2% RH and ±0.5°C to ±1°C temperature precision, making it ideal for clean rooms, data centers, hospitals, and environmental monitoring applications.
OMEGA ITHXSD Temperature and Humidity Data Logger Specifications:
- Humidty Range: 0 to 100% RH, Accuracy: ±2% (10-90%), Resolution: 0.1%
- Temperature Range: -40°C to 124°C, Accuracy: ±0.5°C to ±1°C depending on probe, Resolution: 0.1°C
- Power Supply: 100-240 VAC, included 9 Vdc backup battery, supports 9-12 Vdc direct input
- Data Storage: 2GB SD card, up to seven years of data at 10-second intervals
- Communication: Ethernet RJ45, TCP/IP, supports protocols such as TCP, UDP, SNMP, SMTP, HTTP
- Relays: Two, 1.5A @ 30V, programmable for high/low limits and latch/reset options
- Display: Embedded web server with real-time data and chart visualization, includes web browser access
- Environmental: Operating temperature 0-60°C for the main unit, -18 to 55°C for battery, storage -40 to 85°C
- Certifications: NIST-Traceable calibration certificates available, compliant with ISO 9001, MIL-STD-45662A
Buy the Omega Series iTHX-SD Temperature and Humidity Data Logger: ITHXSD
Order the Omega ITHX-SD temperature and humidity data logger online today to ensure precise environmental monitoring in critical environments. Featuring Ethernet connectivity, real-time web access, and extensive data storage, this device provides reliable, hands-free data logging for clean rooms, pharmaceutical facilities, and data centers. Its dual relays support alarms for high or low conditions, while the included SD card stores up to seven years of data at ten-second intervals. Easy installation, NIST calibration options, and web-based control make it the ideal solution for professional environmental management and ensuring regulatory compliance.
Buy Omega ITHX-SD now and experience unmatched reliability and performance in environmental data logging with web-based monitoring.
