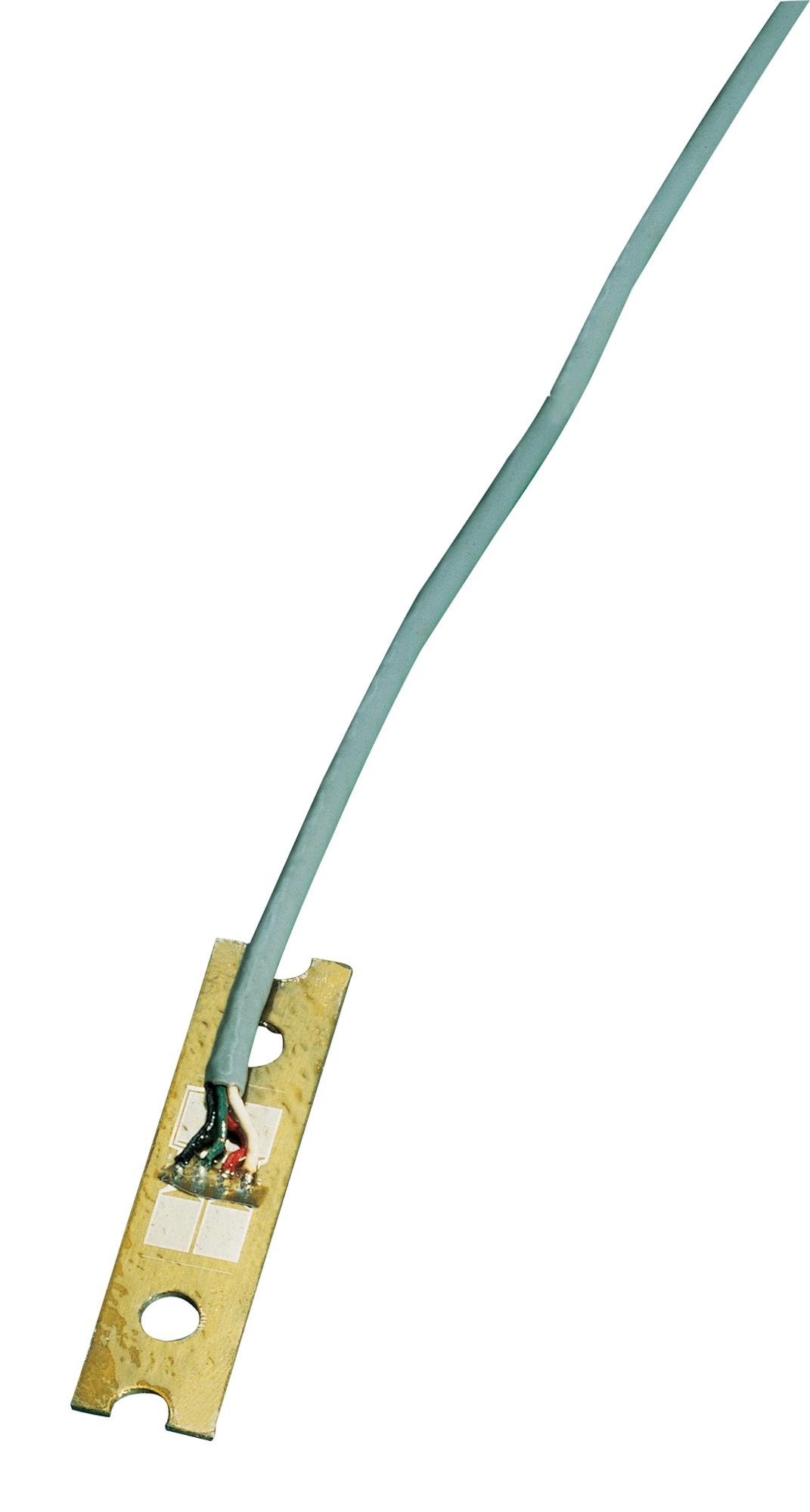

OMEGA LCL005 Force Load Cell
The LCL-005 from Omega is a high-precision, full bridge thin-beam load cell specially designed for accurate force measurement in various industries. It features a thermally matched, fully active strain gauge laminated to the beam, ensuring excellent stability and reliability during frequent small load measurements. Suitable for medical devices, home appliances, robotics, process control, and automotive applications, it supports a capacity of 5 pounds. The load cell operates at up to 12V DC excitation, with a rated output of 2mV/V ±20%, a zero balance of 0.3mV/V, and a temperature range from -54°C to 93°C. Its urethane-coated seal and shielded PVC lead wire guarantee durability and consistent performance in demanding environments.
OMEGA LCL005 Force Load Cell Specifications:
- Excitation: 5 Vdc, 12V max
- Rated Output: 2 mV/V ±20%
- Zero Balance: 0.3 mV/V
- Combined Error: 0.25% FS
- Operating Temperature: -54°C to 93°C (-65°F to 200°F)
- Compensated Temperature: -7°C to 49°C (20°F to 120°F)
- Resistance (Input and Output): 1200 +300 Ω
- Insulation Resistance: 1000 MΩ @ 50 Vdc
- Seal: Urethane coated
- Safe Overload: 150% FS
- Full Scale Deflection: 0.25 to 1.27 mm (0.010 to 0.050 inches)
- Lead Wire: 9-inch shielded PVC 4-conductor 30 AWG
- Material: >816 gf (2 lb): 301 SS, <816 gf (2 lb): Beryllium copper
- Capacity: 2.27 kgf (5 lb)
Buy the Omega LCL005 – Reliable Force Measurement for Industrial Applications
Purchase the Omega LCL005 load cell online today to enjoy reliable, high-precision force measurement suited for medical instrumentation, industrial automation, robotics, or automotive testing. This durable, full-bridge thin-beam design offers excellent stability and stability, operating effectively across a broad temperature range. Its urethane-coated seal and 9-inch shielded PVC lead wire ensure durability and consistent performance. Ideal for high-volume applications, this load cell supports capacities up to 5 pounds with a rated output of 2mV/V. Order now for fast delivery and seamless integration into your measurement systems.
Buy Omega LCL005 load cell now and ensure precise, durable force measurement in your industrial, medical, or robotic equipment.
Frequently Asked Questions
Where can I buy OMEGA LCL005?
You can click on the BUY or RFQ button to purchase LCL005 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LCL005?
You can download the LCL005 datasheet or visit the OMEGA website for support.
Who is the manufacturer of LCL005?
OMEGA
