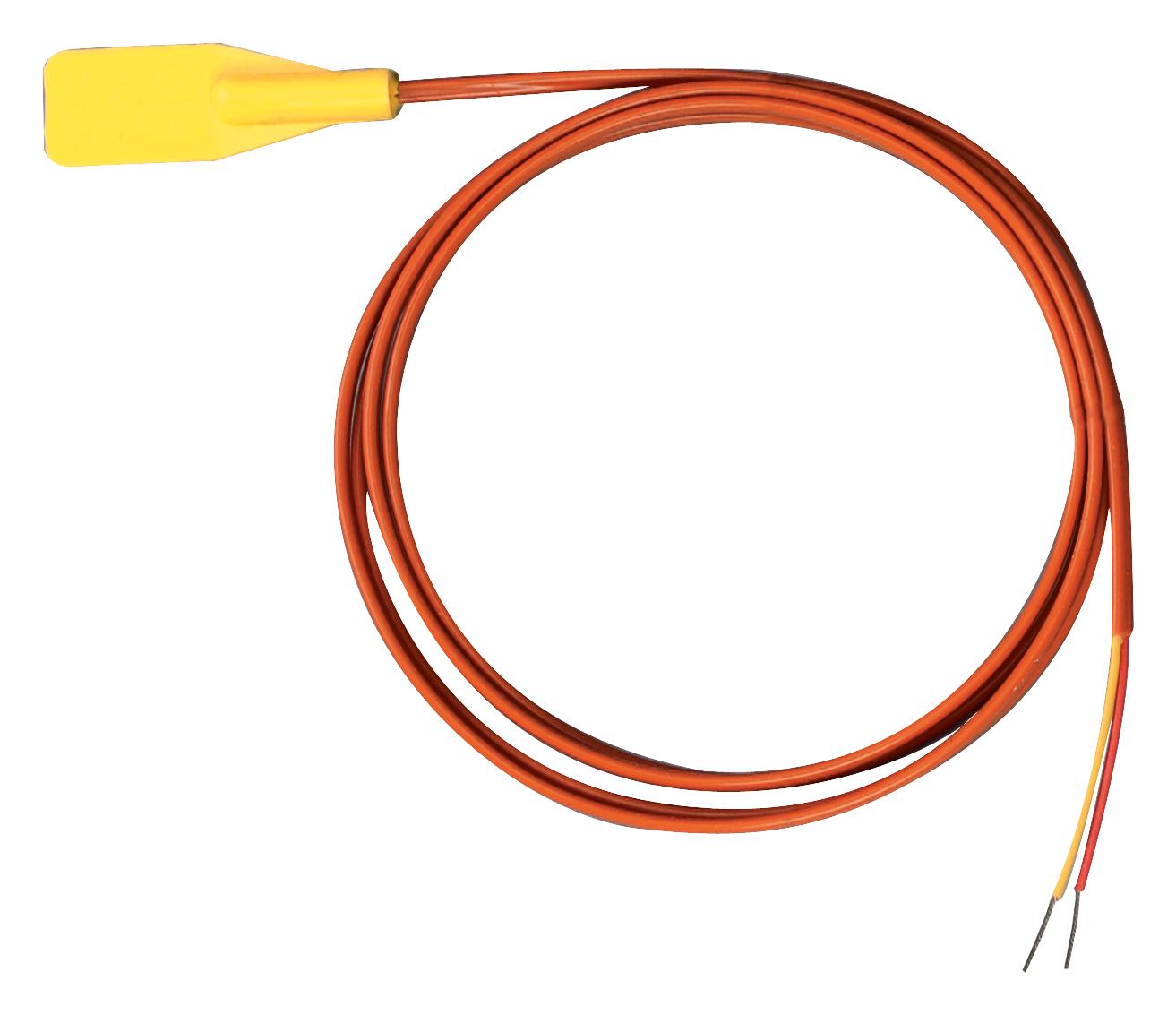

OMEGA SA2FK120 Silicone Surface Thermocouple
The Self-Adhesive Thermocouples are molded silicone sensors designed for both curved and flat surface applications, offering ultra-slim profiles and quick response times due to self-adhesive foil backing. Available in styles for flat or curved surfaces, these sensors feature thermocouple-grade stranded lead wires in various lengths and types (J, K, T, E). They are chemically resistant, flexible, and can be customized with different connectors, including ultimate mini male connectors. Ideal for temperature measurements in industrial environments, ensuring durability and fast readings on diverse surfaces.
OMEGA SA2FK120 Silicone Surface Thermocouple Specifications:
- Temperature Range: -50 to 200°C (-58 to 392°F)
- Thermocouple Types: J, K, T, E
- Lead Wire Dimensions: 24 AWG stranded thermocouple-grade wire
- Sensor Dimensions: SA2C - 15 x 50 x 2.5mm; SA2F - 35 x 12 x 2.5mm
- Lead Wire Lengths: 1 m (40"), 2 m (80"), 3 m (120")
- Connector Options: OSTW-CC, SMPW-CC, with optional male straight or right-angled M8/M12 plugs
- Sensor Material: Molded silicone with self-adhesive aluminum foil backing
- Chemical Resistance: Resistant to a variety of chemicals and oils
- Mounting Styles: For flat and curved surfaces, bonding onto inner surfaces with quick response
- Color Coding: E-Color for M8/M12 connectors
Buy the Innovative Series Thermocouples SA2F-K: SA2FK120
Order the Silicone Surface Thermocouple SA2FK120 online today for reliable, rapid, and accurate temperature monitoring in industrial environments. Its self-adhesive silicone design ensures fast installation on flat and curved surfaces, providing precise readings across a temperature range of -50°C to 200°C. Featuring options for various connector types, including ultimate mini male connectors, and multiple lead wire lengths up to 3 meters, this sensor is ideal for demanding applications requiring durability, chemical resistance, and quick response times. Shop now for dependable temperature sensing solutions.
Get Thermocouples SA2FK120 today—built for precision, flexibility, and rapid temperature detection on various surfaces.
Frequently Asked Questions
Where can I buy OMEGA SA2FK120?
You can click on the BUY or RFQ button to purchase SA2FK120 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part SA2FK120?
You can download the SA2FK120 datasheet or visit the OMEGA website for support.
Who is the manufacturer of SA2FK120?
OMEGA
