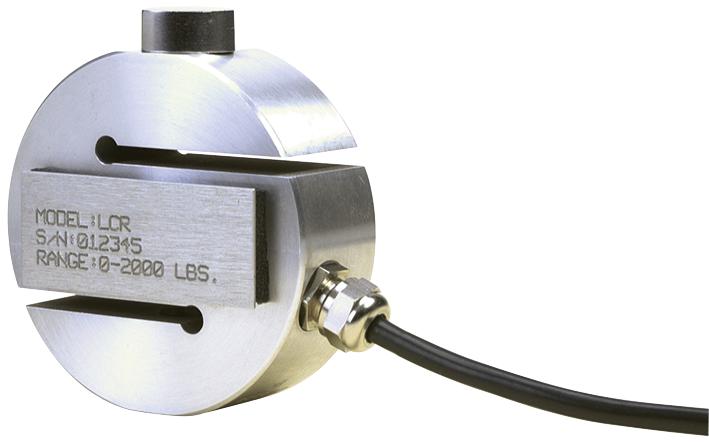

OMEGA LCR200 S-Beam Load Cell
The LCR Series S-Beam Load Cells are rugged, high-accuracy sensors designed for industrial applications requiring precise tension and compression measurements. Crafted with lightweight aluminum for ranges up to 1000 lb and stainless steel for higher capacities, these load cells feature 5-point NIST traceable calibration, excellent linearity (+0.03%), low hysteresis (+0.02%), and rapid repeatability (+0.01%). They operate with 10 Vdc excitation, have a 3 mV/V output, and are protected to IP55. Suitable for dynamic and static weighing, they include load buttons and rod ends for versatile mounting, ensuring durability and consistent performance under demanding conditions.
OMEGA LCR200 S-Beam Load Cell Specifications:
- Excitation: 10 Vdc, 15 V max
- Output: 3 mV/V ±0.25%
- Linearity: +0.03%
- Hysteresis: +0.02%
- Repeatability: +0.01%
- Creep (20 min): +0.03%
- Operating Temperature: -18 to 71°C (0 to 150°F)
- Compensated Temperature: 17 to 71°C (60 to 160°F)
- Zero Temp Effect: +0.0027% FS/°C
- Span Temp Effect: +0.0015% rdg/°C
- Safe Overload: 150% of capacity
- Ultimate Overload: 300% of capacity
- Bridge Resistance: 350 Q nominal
- Material: Aluminum for ranges up to 1000 lb, 17-4 PH stainless steel for higher ranges
- Electrical Connection: 6 m (20') cable
- Wiring: Red (+) Excitation, Black (-) Excitation, Green (+) Output, White (-) Output
- Protection Level: IP55
Buy the Industrial Sensor 200Lb – Reliable S-Beam Load Cell for Industrial Applications
Discover the rugged and highly accurate S-Beam Load Cells designed for industrial environments. Featuring NIST traceable calibration, IP55 protection, and versatile mounting options, these load sensors deliver reliable tension and compression measurements for dynamic and static weighing tasks. Engineered with lightweight aluminum and stainless steel, they offer durability under tough conditions. Easily connect with compatible meters and accessories for optimal performance. Order online now and ensure precise load measurement in your industrial processes with this dependable, high-quality load cell designed for demanding applications.
Get LCR200 today—built for precision and long-lasting durability in industrial weighing and measurement applications.
