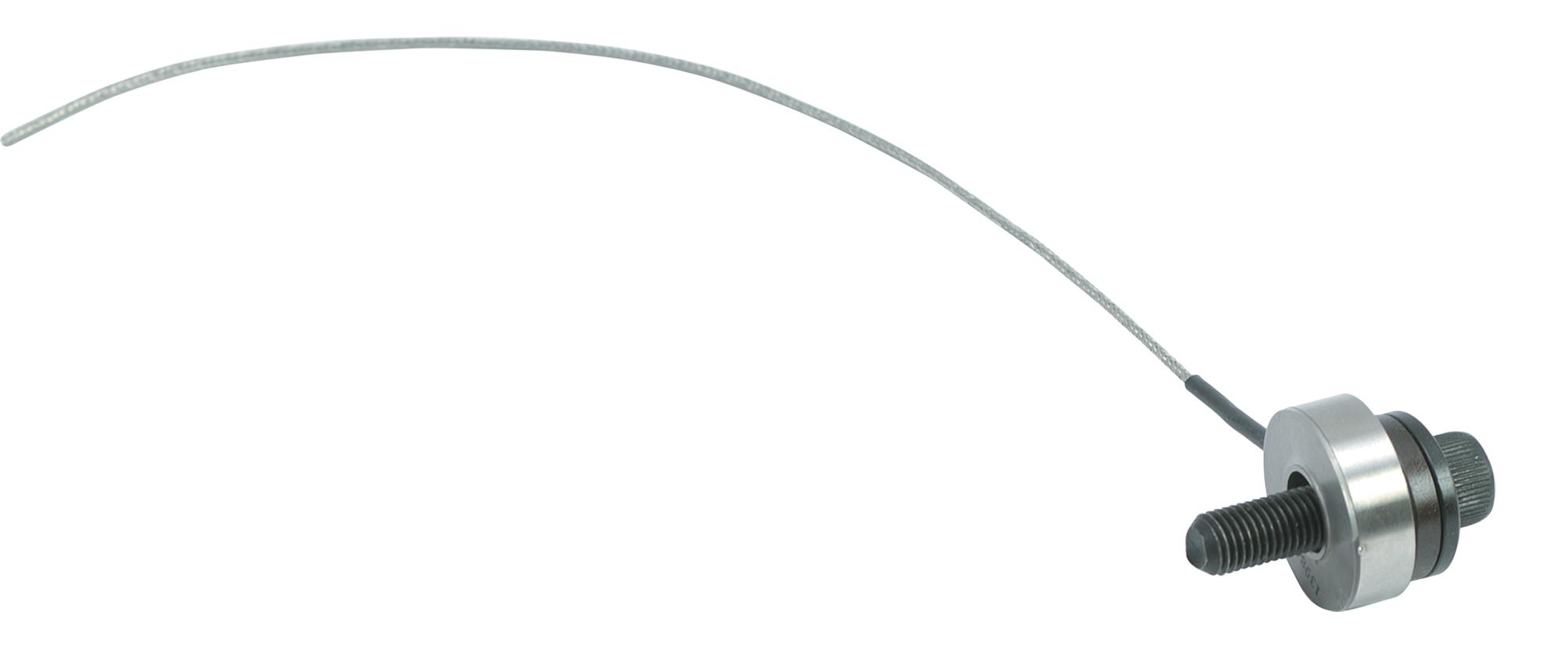

OMEGA LCWD500 Load Washer
The Omega LCWD-500 is a stainless steel load washer designed for measuring bolt compressional forces. With a capacity of 500 lb (2224 N), it includes spherical washers and load buttons for compatibility with compression load cells. It operates with up to 15 VDC excitation, providing a nominal output of 2 mV/V and accuracy within ±0.5%. The unit withstands overloads up to 120% capacity, with a full-scale deflection of about 0.001 inches. The compact design suits various industrial testing applications, with calibration and shunt data included for precise measurements. It ensures safety and reliability during force measurement tasks.
OMEGA LCWD500 Load Washer Specifications:
- Capacity: 500 lb (2224 N)
- Material: Stainless Steel
- Operating Voltage: Up to 15 VDC
- Output: 2 mV/V nominal
- Accuracy: ±0.5% BFSL including hysteresis and repeatability
- Zero Balance: ±4.0% FSO
- Operating Temperature: -40°C to 127°C
- Full-scale Deflection: About 0.001 inches
- Overload Limit: 120% of capacity, ultimate 200%
- Cable Length: 1.5 meters (5 feet), insulated, shielded
- Includes spherical washers, load buttons, calibration, and shunt data
- Constructed from stainless steel for durability
- Not field serviceable; tampering voids warranty
Buy the Omega Series Load Washer: LCWD-500
Purchase the Omega LCWD-500 load washer online today to secure accurate and reliable measurement of bolt compressional forces. This stainless steel device includes spherical washers and load buttons, providing a capacity of 500 lb. With calibration certification and a durable shielded cable, it guarantees consistent performance in demanding industrial environments. Ideal for use with compatible load cell meters such as DP41-S, DP25B-S, and DPiS, the LCWD-500 offers superior accuracy, safety, and ease of integration, making it an essential tool for force measurement applications.
Order your Omega Series LCWD-500 load washer today and ensure precise bolt force measurement with reliable stainless steel construction and comprehensive calibration.
