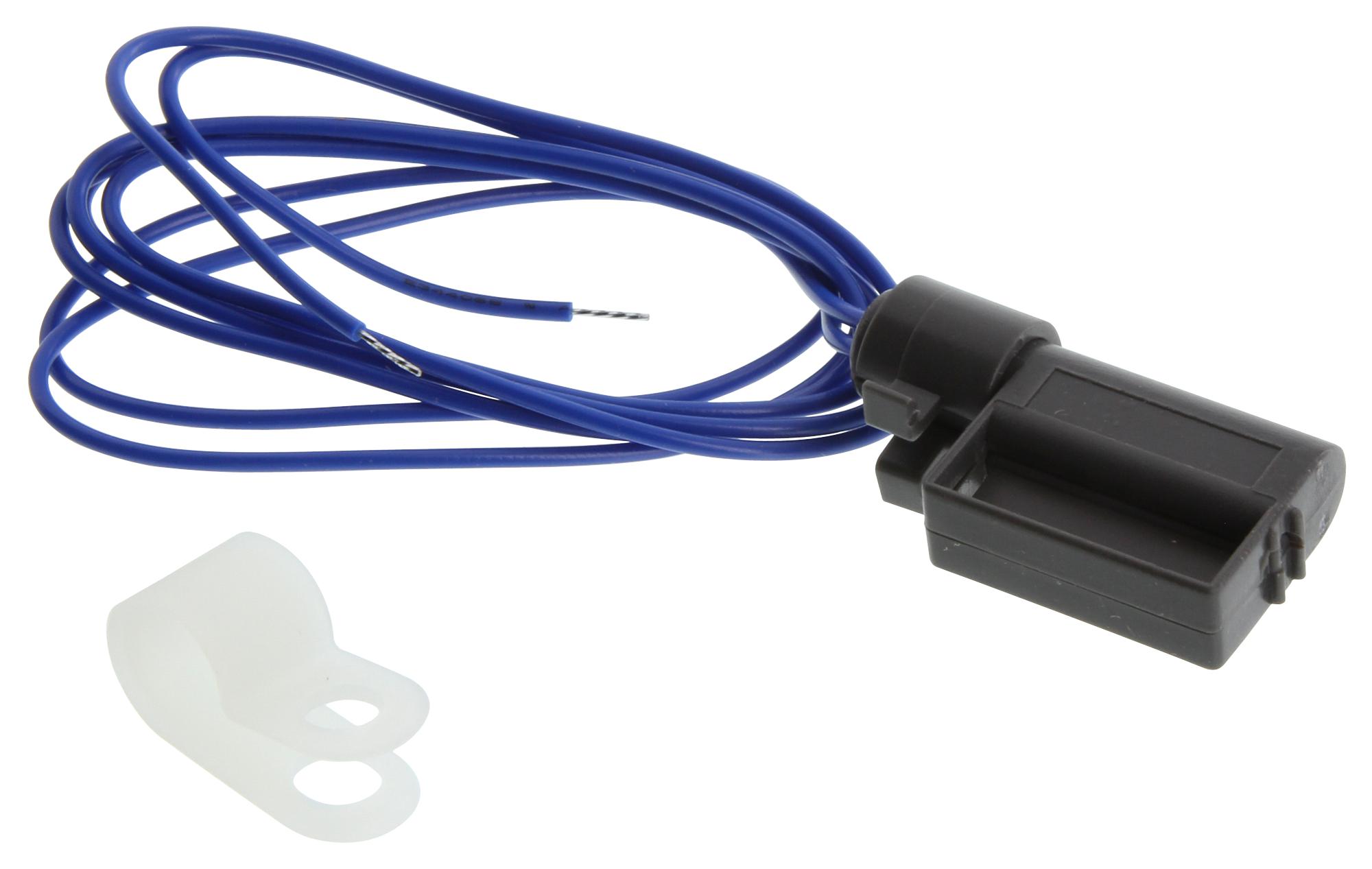

OMEGA FSW802B Air Flow Switch
This compact fan and filter air flow monitor offers a reliable mechanical reed/magnet switch contact with normally open configuration. It features easy installation via clip or clamp, small size, and cost-effectiveness, making it suitable for diverse applications. The device detects air flow below 8.2 ft/s, activating electrical signaling devices for proper airflow monitoring in ventilation and cooling systems. Its robust construction ensures a service life over 100,000 cycles, and it operates reliably within a temperature range of -20°C to 50°C. The unit includes a plastic housing, mounting clips, and detailed operator manual for straightforward setup and maintenance.
OMEGA FSW802B Air Flow Switch Specifications:
- Contact Type: Reed/magnet contact
- Normally Open (NO): Contact closed with air flow
- Switching Threshold of Air Flow Speed: >8.2 ft/s (2.5 m/s)
- Hysteresis: 0.3 ft/s (1 m/s)
- Contact Resistance: 370 mΩ (including wire)
- Service Life: >100,000 cycles
- Maximum Switching Capacity: 10 W (resistive load)
- Maximum Switching Voltage: AC/DC 240 V / DC 60 V
- Maximum Switching Current: DC 500 mA / DC 170 mA
- Operating Temperature: -20°C to 50°C (-4°F to 122°F)
- Storage Temperature: -20°C to 80°C (-4°F to 176°F)
- Protection: NEMA 1 (IP 20)
- Connection: 2 x single strand AWG 26, 500 mm (20") length, tinned tips
- Housing Material: Plastic, black
- Dimensions: 34 x 17.5 x 7.5 mm (1.3 x 0.7 x 0.3")
- Mounting: Clip and/or clamp, integrated in protective grill
Buy the Omega Series FS80 Air Flow Monitor: FSW802B
Purchase the Omega FS80 Series air flow switch FSW802B online today for proven reliability in airflow monitoring. Its compact size, easy mounting options, and long-lasting durability make it ideal for varied industrial and commercial ventilation applications. This device ensures accurate detection when air flow drops below 8.2 ft/s, activating signaling devices. Its robust construction with a service life exceeding 100,000 cycles guarantees consistent performance. Order now for fast delivery and enhance your system's airflow management with this dependable switch, designed for easy setup and maintenance.
Get Omega FS80 air flow monitor FSW802B today—designed for reliable airflow detection and easy installation in ventilation systems.
Frequently Asked Questions
Where can I buy OMEGA FSW802B?
You can click on the BUY or RFQ button to purchase FSW802B from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part FSW802B?
You can download the FSW802B datasheet or visit the OMEGA website for support.
Who is the manufacturer of FSW802B?
OMEGA
