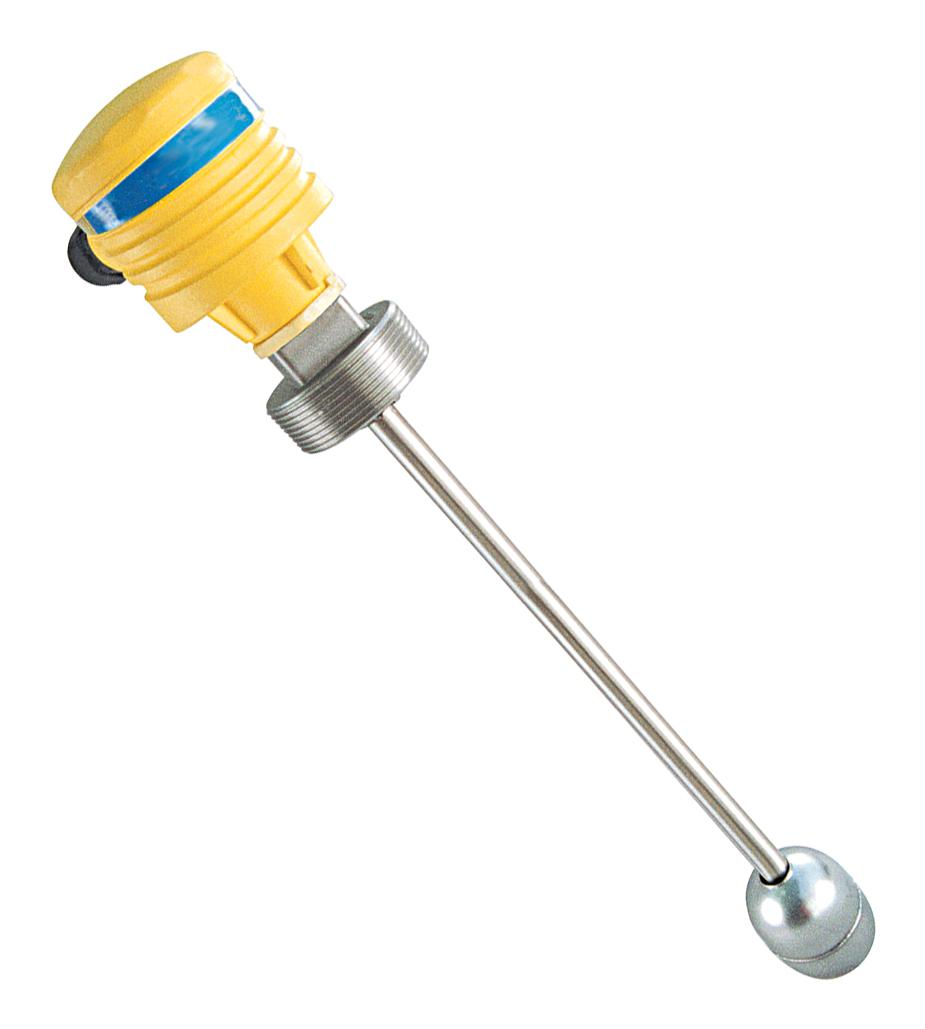

OMEGA LVR542 Float Level Transmitter
The float level transmitter from the LVR500 series offers reliable continuous level measurement up to 2 meters, ideal for high-pressure and high-temperature environments. Constructed with a rugged 316 stainless steel float and guide, it is suitable for clean liquids such as water, diluted chemicals, and light oils. Equipped with a Polypropylene junction box rated NEMA 4X (IP65), it features a 4 to 20 mA signal output, making it compatible with process control systems. Suitable for boiler and vessel applications, it operates across a temperature range of -40 to 85°C and pressure up to 200 psi. It includes process mounting, conduit connections, and precise set points for accurate level measurement.
OMEGA LVR542 Float Level Transmitter Specifications:
- Range: 41 to 1222 cm (16 to 48 inches)
- Accuracy: 0.25% span in water
- Operating Temperature: -40 to 85°C (-40 to 185°F)
- Process Pressure: Up to 200 psi (13.8 bar)
- Enclosure: Polypropylene Junction Box, NEMA 4X (IP65), with conduit port
- Guide Material: 316 stainless steel
- Process Mount: 2 NPT
- Signal Output: 4 to 20 mA, two-wire
- Loop Resistance: 600 Ω @ 24 Vdc
- Supply Voltage: 10 to 30 Vdc
- Dimension Length Options: 16 to 48 inches (standard), longer lengths available upon request
- Guide Diameter: 52 mm (2.1 inches)
- Ambient Temp Range: -40 to 60°C (-40 to 140°F)
- Protection Class: CE compliance
Buy the Omega LVR542 – Reliable Level Measurement for Industrial Applications
Purchase the Omega LVR542 float level transmitter online today to enjoy accurate, continuous level measurement in high-pressure or high-temperature tanks. Featuring a rugged stainless steel float and polypropylene junction box, it offers a 4 to 20 mA output suitable for process control systems. Easy to install with NEMA 4X rated enclosure and standard NPT mounting, this transmitter is ideal for boiler, vessel, and chemical applications. Get dependable performance and fast delivery online for your industrial level measurement needs.
Order your Omega LVR542 float level transmitter today and ensure precise, reliable level monitoring in high-pressure and high-temperature environments.
Frequently Asked Questions
Where can I buy OMEGA LVR542?
You can click on the BUY or RFQ button to purchase LVR542 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LVR542?
You can download the LVR542 datasheet or visit the OMEGA website for support.
Who is the manufacturer of LVR542?
OMEGA
