OMEGA SMPWJF Miniature Connector
The SMPWJF miniature connector features a glass-filled nylon construction designed for high-temperature applications with service temperatures ranging from -29°C to 180°C. It offers a quick connect contact system, color-coded for ANSI and IEC standards, and includes captive cover screws for secure connections. Suitable for stranded or solid wire up to 20 AWG, it incorporates removable/reversible write-on windows, internal wire dividers, and comes with optional quick connect washers. This rugged, environmentally friendly connector is ideal for precision thermocouple and electrical connections in demanding industrial environments.
OMEGA SMPWJF Miniature Connector Specifications:
- Material: Glass-filled nylon for high durability and temperature resistance
- Service Temperature Range: -29°C to 180°C (-20°F to 356°F)
- Wire Compatibility: Accepts stranded or solid wire up to 20 AWG
- Construction: Heavy-duty with captive cover screws and internal wire divider
- Colors: ANSI and IEC color codes for easy identification
- Connectors: Male and female types, available in sizes for 0.020 to 0.125 inches diameter probes
- Additional Features: Reversible write-on windows, quick connect washers, crimp-style brass and stainless steel bushings
- Environmental Notes: Minor discoloration possible between 150°C and 180°C, electrical performance unaffected
- Certifications: Meets industrial standards for reliable electrical connections
- Extras: Optional cable clamp with ferrite core for EMI protection, available in various configurations

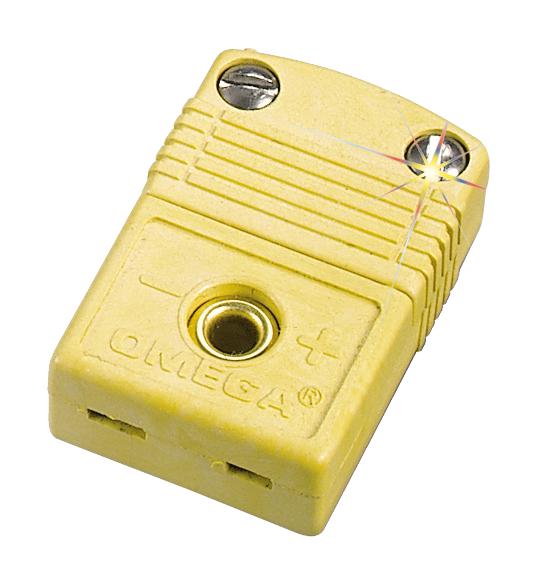

Buy the Omega Series SMPWJF Glass-Filled Nylon Connector: SMPWJF
Upgrade your electrical assembly with the Omega Series SMPWJF miniature connector, offering high-temperature performance up to 180°C, quick connect features, and reliable wiring options. Its durable glass-filled nylon body withstands tough industrial conditions, while the color-coded and write-on windows facilitate easy identification and installation. Perfect for thermocouple connections, it accepts up to 20 AWG wire, includes captive screws, and provides EMI protection with optional cable clamps. Buy online now to enhance your project's reliability and efficiency with this versatile, environmentally friendly connector.
Order your Omega Series SMPWJF high-temp miniature connector today and ensure reliable, secure electrical connections in demanding industrial environments.
Frequently Asked Questions
Where can I buy OMEGA SMPWJF?
You can click on the BUY or RFQ button to purchase SMPWJF from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part SMPWJF?
You can download the SMPWJF datasheet or visit the OMEGA website for support.
Who is the manufacturer of SMPWJF?
OMEGA
