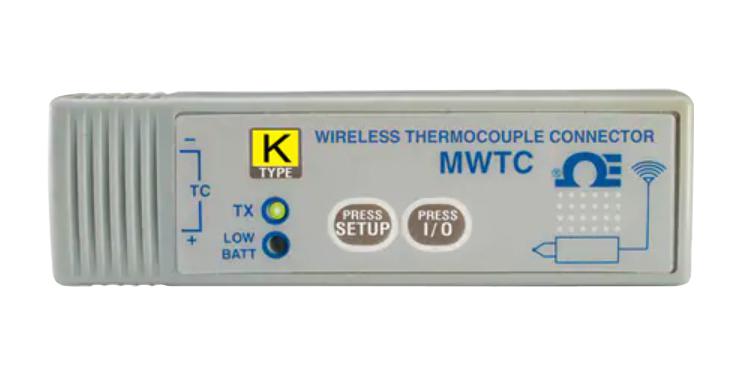

OMEGA MWTCDK915 Wireless Thermocouple Connector
The wireless thermocouple connector series offers reliable temperature data transmission and recording for industrial applications. Featuring built-in cold junction compensation and linearization, these compact and battery-powered devices can transmit or record temperature data from various thermocouple types including J, K, T, E, R, S, B, C, and N. They support multi-channel setups with up to 48 transmitters communicating wirelessly with a receiver up to 90 meters away. Data points, including process and ambient temperatures, can be stored and downloaded easily via USB. Ideal for precise, remote temperature monitoring in industrial environments.
OMEGA MWTCDK915 Wireless Thermocouple Connector Specifications:
- Thermocouple Types: J, K, T, E, R, S, B, C, N (factory set)
- PC Interface: USB (one cable included)
- Modes of Operation: Transmit, transmit and record, or record only, set by software
- Memory: 65,400 process readings, or 32,700 process and ambient readings
- Data Logging Start Time: At power-up or pre-set date and time
- Logging/Transmit Interval: 2 sec to 2 minutes, set by software
- Radio Frequency: ISM 915 MHz or ISM 868 MHz
- RF Power Output: Less than 5 mW (7 dBm)
- Range: Outdoor line of sight 90 m (300 ft), indoor/urban 39 m (130 ft)
- Battery: AAA size, 1.5V Lithium (included), compatible with alkaline or 3.6V lithium
- Battery Life: 7.2 months at 1 sample per minute
- Included: Wireless transmitter with 1 m thermocouple, USB cable, mounting bracket, AAA battery; Receiver with manual and software CD
Buy the Innovative MWTCDK915 U+2013 Reliable Wireless Temperature Monitoring for Industrial Applications
Order the Newport wireless thermocouple connector now to enhance your industrial temperature monitoring. This reliable, multi-channel device transmits and records temperature data wirelessly from various thermocouple types like J, K, T, and more. Easily set up to transmit, record, or both, with data stored up to 65,400 points. Download data effortlessly via USB. Ideal for remote, precise temperature measurements in industrial environments, ensuring operational efficiency and safety with state-of-the-art wireless technology. Buy online today for seamless integration into your process control systems!
Get Newport wireless thermocouple connector today—designed for precise temperature data transmission and long-lasting industrial durability.
Frequently Asked Questions
Where can I buy OMEGA MWTCDK915?
You can click on the BUY or RFQ button to purchase MWTCDK915 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part MWTCDK915?
You can download the MWTCDK915 datasheet or visit the OMEGA website for support.
Who is the manufacturer of MWTCDK915?
OMEGA
