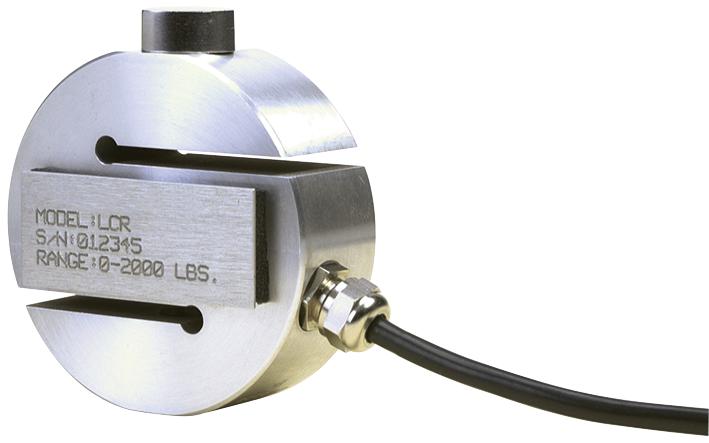

OMEGA LCR3K Industrial Load Cell
The LCR series S-Beam load cells are rugged, high-accuracy weighing sensors designed for industrial applications. Constructed with lightweight aluminum for lower capacities and stainless steel for higher capacities, they offer exceptional linearity, hysteresis, and repeatability. These load cells feature 5-point calibration in tension, overload protection up to 150%, and an operating temperature range of -18 to 71°C. They include 6-meter electrical cables and are compatible with strain meters. Ideal for precise force measurement in manufacturing, testing, and automation environments.
OMEGA LCR3K Industrial Load Cell Specifications:
- Excitation: 10 Vdc, 15 V max
- Output: 3 mV/V 40.25%
- Calibration: 5 point in tension (0%, 50%, 100%, 50%, 0%)
- Linearity: +0.03%
- Hysteresis: +0.02%
- Repeatability: +0.01%
- Creep (20 min): +0.03%
- Operating Temperature: -18 to 71°C (0 to 150°F)
- Compensated Temperature: 17 to 71°C (60 to 160°F)
- Zero Temperature Effect: +0.0027% FS/°C
- Span Temperature Effect: +0.0015% rdg/°C
- Safe Overload: 150% of capacity
- Ultimate Overload: 300% of capacity
- Bridge Resistance: 350 Q nominal
- Materials: Aluminum for ranges up to 1000 Ib, 17-4 PH stainless steel above 1000 Ib
- Electrical Connection: 6 m (20') cable
- Wiring: Red (+) excitation, Black (-) excitation, Green (+) output, White (-) output
Buy the Buy Rugged Load Cell Part Number LCR3K Online
Order the rugged industrial load cell LCR3K online today to ensure precise, reliable force measurement in demanding environments. Designed for accuracy, durability, and a wide temperature range, this load cell's high-quality materials and 5-point tension calibration make it ideal for manufacturing, automation, and testing applications. Easy to install with standard wiring and a robust 6-meter cable, it guarantees long-lasting performance and precise data. Enhance your measurement system by purchasing this top-tier load cell directly online for fast delivery and excellent support.
Buy Rugged Load Cell LCR3K now and experience unmatched reliability and performance in industrial force measurement.
