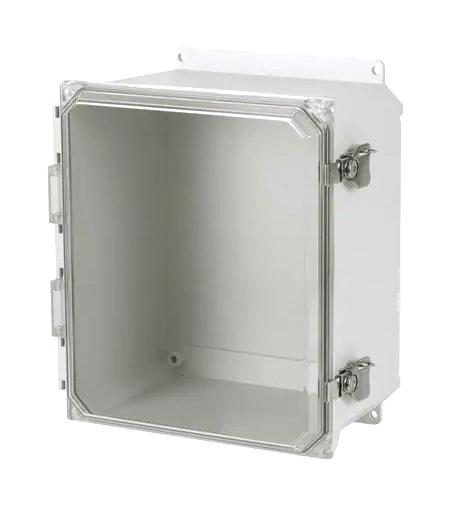

OMEGA OMAMU1206TCCF Fiberglass Enclosure
The OM-AMU series non-metallic fiberglass enclosures are designed for both indoor and outdoor electrical protection, especially for high-temperature and corrosive environments. These NEMA 4X (IP66) rated junction boxes feature molded-in hinges with stainless steel pins, various cover options including clear or raised polycarbonate, and factory-installed mounting flanges. Constructed from fiberglass reinforced polyester with neoprene seals, they ensure durability and protection against harsh conditions. Available with multiple closure styles, they are ideal for controlling electrical components securely and reliably outdoors or indoors.
OMEGA OMAMU1206TCCF Fiberglass Enclosure Specifications:
- Material: Fiberglass reinforced polyester
- Seals: Tongue and Grove, Closed Cell Neoprene
- Service Temperature: -35 to 130°C (-31 to 266°F)
- Rating: NEMA 4X, UL Types 1, 2, 3, 4, 4X, 12, 13; IEC IP66
- Hardware: 304 Stainless steel hardware
- Hinges: Molded-in with removable stainless steel pins
- Cover Options: Raised, clear polycarbonate, with various latch styles
- Construction: UV stabilized, flame rating UL 94V-0
- Dimensions: Ranging from approximately 6x6x4 inches to 20x16x10 inches depending on model
- Mounting: Factory installed flanges or optional stainless steel mounting feet
- Temperature Range: -35°C to 130°C
- Standards: UL, CSA, NEMA, IEC
Buy the Buy OM AMU Series Fiberglass Enclosure Part Number OMAMU1206TCCF Online
Secure your electrical controls with the OM-AMU Series fiberglass enclosure. This rugged, non-metallic enclosure features NEMA 4X/IP66 protection, molded-in hinges, stainless steel hardware, and options for clear polycarbonate covers. Designed for high-temperature and corrosive environments, it ensures reliable outdoor or indoor electrical control protection. Easy to install with factory-installed flanges or optional stainless steel feet, these enclosures are UV stabilized, flame-rated, and meet UL, CSA, and IEC standards. Perfect for demanding industrial applications requiring durability and safety.
Order your OM-AMU Series OMAMU1206TCCF fiberglass enclosure today and enhance your outdoor electrical protection with durable, corrosion-resistant packaging.
Frequently Asked Questions
Where can I buy OMEGA OMAMU1206TCCF?
You can click on the BUY or RFQ button to purchase OMAMU1206TCCF from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part OMAMU1206TCCF?
You can download the OMAMU1206TCCF datasheet or visit the OMEGA website for support.
Who is the manufacturer of OMAMU1206TCCF?
OMEGA
