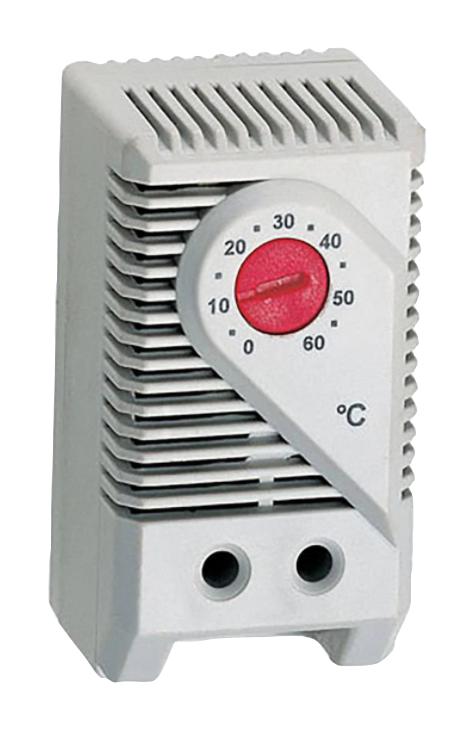

OMEGA KT011469 Thermostat
The KT011469 thermostats are compact, DIN rail-mounted devices with a wide adjustment range. Featuring a bi-metal sensor, they switch on or off at set temperatures with high durability of 100,000 cycles. They are available with color-coded dials—red for NC (open on rise) and blue for NO (close on rise)—and have a switching capacity of 15 A resistive at 120 Vac. Designed for versatile industrial and HVAC applications, these thermostats are housed in UL94V-0 plastic enclosures, offering reliability with a simple clip mounting and protection level of NEMA 2 (IP20).
OMEGA KT011469 Thermostat Specifications:
- Sensor Element: Thermostatic bi-metal
- Maximum Tolerance: +7°F (4K)
- Switching Difference (Hysteresis): 12.6°F +5.4°F (7°C +3K)
- Service Life: 100,000 cycles
- Switching Capacity (Max Load): 15 A resistive at 120 Vac, 10 A resistive at 250 Vac, DC 30W
- Minimum Load: 20 mA at all voltages
- Connections: 2-pole terminal for AWG 14 max (2.5 mm²)
- Mounting: Clip for 35 mm DIN rail (EN 50022)
- Dimensions: 60 H x 33 W x 43 mm D (2.4 x 1.3 x 1.7 inches)
- Housing: Plastic, UL94V-0
- Weight: 40 g (1.4 oz)
- Protection Type: NEMA 2 (IP20)
- Operating Temperature Range: 45 to 70°C
- Storage Temperature Range: -45 to 70°C
- Model KT011469: NC—opens on rise, 0 to 60°C (32 to 140°F)
Buy the Thermostat Series KT011 Series: NC Thermostat 0 to 60°C
Purchase the KT011469 thermostats online to ensure reliable temperature control in your industrial or HVAC systems. These compact, DIN rail-mountable devices feature bi-metal sensors, offering wide adjustment ranges and high cycle endurance of 100,000 cycles. With UL94V-0 plastic housings for safety and NEMA 2 (IP20) protection, they are easy to install using a clip mount. Available with color-coded dials—red for NC and blue for NO—these thermostats provide dependable operation for temperature regulation across various environments.
Get KT011469 thermostats today—built for precision and long-lasting durability in industrial and HVAC applications.
