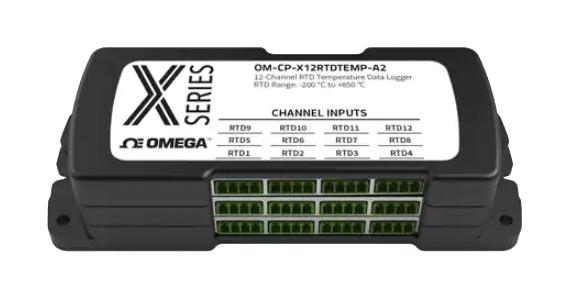

OMEGA OMCPX12RTDTEMPA2 12-Channel RTD Temperature Data Logger
The OM-CP-RTDTempX series is a 12-channel RTD temperature data logger designed for precise temperature measurement with a maximum data rate of 4Hz. It features a high-capacity memory capable of storing up to 232,903 readings per channel and allows users to enable or disable channels to maximize memory usage. Each channel can be named with up to ten characters for easy identification. The device supports real-time operation with an accuracy of ±0.04°C and offers external power options or a user-replaceable 9V lithium battery, which typically lasts 18 months. It includes a NIST-traceable calibration certificate and is housed in a durable black anodized aluminum enclosure measuring 2.70 inches by 7.25 inches by 1.68 inches, weighing approximately 580 grams. The logger employs a pushbutton or programmable start, with a temperature measurement range from -200°C to +850°C (probe-dependent) and a temperature resolution of 0.001°C. Connectivity is via USB-A to Micro USB cable for data transfer to a PC, compatible with Windows XP SP3, 7, 8, and 10. Data can be viewed graphically, tabularly, or statistically, and exported to Excel for further analysis. The device operates with a temperature coefficient of approximately 2ppm/°C and features flexible data collection intervals from 4Hz to once every 24 hours.
OMEGA OMCPX12RTDTEMPA2 12-Channel RTD Temperature Data Logger Specifications:
- Temperature Range: -200°C to +850°C (probe dependent)
- Resolution: 0.001°C
- Accuracy: ±0.04°C at 25°C
- Memory: 232,903 readings per channel
- Channels: 12, each with a 10-character name
- Sampling Rate: Up to 4Hz
- Power: External or 9V lithium battery (18 months typical)
- Physical Dimensions: 2.70 in x 7.25 in x 1.68 in
- Weight: 20 oz (580 g)
- Enclosure: Black anodized aluminum
- Connectivity: USB-A to Micro USB cable
- Calibration: NIST-traceable certificate included
- Operating Temp: 0°C to 60°C
- Humidity: 0% to 95% RH non-condensing
- Software Compatibility: Windows XP SP3/7/8/10
- Start Modes: Programmable or immediate start
- Data Export: Excel®, graphical, tabular, statistical views
Buy the Omega 12-Channel RTD Data Logger – Reliable Temperature Monitoring for Industrial Applications
Order the Omega 12-Channel RTD Temperature Data Logger online today to benefit from precise temperature measurements, high memory capacity, and flexible logging options. This rugged device features a user-friendly interface, NIST traceable calibration, and durable aluminum housing, making it ideal for various industrial and laboratory applications. Its ability to log data at up to 4Hz, combined with remote start functions and customized channel naming, ensures optimal monitoring and data analysis. Get yours now for dependable performance and easy integration into your temperature measurement systems.
Buy Omega 12-channel RTD data logger now and experience reliable high-precision temperature measurement with flexible data logging capabilities.
