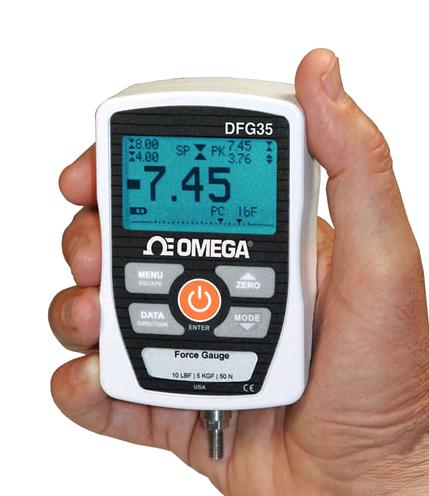

OMEGA DFG3550 Digital Force Gauge
The DFG35-50 is an economical digital force gauge from the DFG35 Series designed for tension and compression force measurements across various applications. It features a backlit graphic LCD that displays large, clear characters and offers a menu for easy access to its functions and configurable parameters. The device includes a USB output for data collection, setpoint indicators for pass/fail testing, and a live load bar graph with set point markers. It supports peak readings and setpoints that are always visible, and offers configurable audio alarms and key tones for user convenience. The package includes a 50 lb digital force gauge with US style plug, carrying case, AC adapter, extension rod, various test attachments (cone, chisel, V-groove, flat, hook), USB cable and CD with drivers, and an operator’s manual.
OMEGA DFG3550 Digital Force Gauge Specifications:
- Accuracy: 0.3% of full scale + 1 digit
- Power: Rechargeable battery or AC using adaptor (batteries and adaptor included)
- Battery Life: Up to 7 hours continuous use with backlight on or 24 hours with backlight off
- Measurement Units: IbF, gF, kgF, N (depending on model)
- Safe Overload: 150% of full scale (shows OVER at 110% and above)
- Full Scale Deflection: 0.25 mm (0.01") except DFG35-0.12 which is 0.13 mm (0.05")
- Dimensions: 99.1 H x 64.3 W x 38.1 mm D (3.90 x 2.53 x 1.50")
- Display: Backlit graphic LCD with large characters
- Sample Rate: 2000 Hz
- Selectable Units: IbF, gF, kgF, N
- Configurable Settings: Digital filters, USB output, auto shutoff, default weight settings, key tones, audio alarms
- Max Load: 50 lb (22.7 kg)
- Overload Limit: 150%
- Includes: Carrying case, AC adaptor with US plug, extension rod, various test attachments, USB cable, CD with drivers, manual
Buy the Omega Series DFG35 Force Gauge: DFG3550
Order the Omega DFG35-50 Digital Force Gauge online today to enjoy high precision tension and compression measurement, advanced configurable features, and comprehensive testing attachments. This Economical model offers large, easy-to-read backlit LCD displays, USB data output for seamless data collection, and adjustable setpoints for pass/fail testing. The device is ideal for multiple applications, providing accurate readings up to 50 lb with a quick response rate. A complete package includes a carrying case, various test attachments, AC adaptor, USB cable, and detailed manual for straightforward operation.
Buy Omega DFG35-50 force gauge now and experience unmatched reliability, high accuracy, and versatile tension and compression testing features.
Frequently Asked Questions
Where can I buy OMEGA DFG3550?
You can click on the BUY or RFQ button to purchase DFG3550 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DFG3550?
You can download the DFG3550 datasheet or visit the OMEGA website for support.
Who is the manufacturer of DFG3550?
OMEGA
