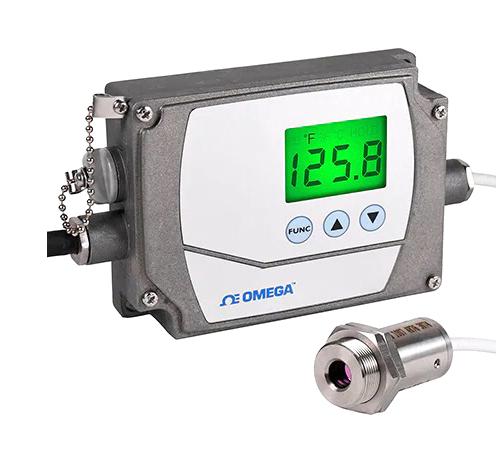

OMEGA OSAO50151TC Infrared Temperature Sensor
The OSAO-Series offers high-performance fixed IR sensors designed for precise temperature measurement in industrial environments. These sensors feature adjustable emissivity, fast response times, and multiple field of view options up to 80:1, supporting temperatures up to 1800°C depending on model. Equipped with built-in LCD displays, laser targeting, and versatile analog/digital outputs, they are suitable for applications like thermal monitoring, process control, and material testing. Optional accessories include water cooling jackets, air purge units, and adjustable mounts, ensuring flexible installation and reliable operation in demanding settings.
OMEGA OSAO50151TC Infrared Temperature Sensor Specifications:
- Model: OSAO-Series
- Temperature Range: 0°C to 1800°C depending on model
- Spectral Response: 8-14 um or 1.6 um for InGaAs detector
- Field of View (FOV): 2:1, 15:1, 20:1, 40:1, 80:1 options
- Response Time: as fast as 2 msec, adjustable up to 10 sec
- Emissivity: 0.1 to 1.2 or 1.0 adjustable
- Accuracy: ±1°C or 3% of measured value below 1500°C, ±0.3% or 2°C above 1500°C
- Repeatability: ±1°C
- Outputs: 0-20mA, 4-20mA, 0-10V, Thermocouple K/J, USB 2.0, RS-232/RS-485
- Operating Temperature Range: electronic box up to 70°C, sensor head up to 180°C
- Housing: stainless steel, zinc steel options; IP65 protection
- Power Supply: 12-28V DC, max 2.5 W
- Water cooling, air purge, and adjustable mounts available
- Accessories include water jacket, air purge, communication PCB, and converter modules
Buy the Omega Series Infrared Sensors: OSAO50151TC
Purchase the Omega Infrared Temperature Sensor today for reliable high-temperature measurement solutions. Featuring adjustable emissivity, fast response times, multiple viewing options, digital and analog outputs, and optional accessories like water cooling jackets and air purge units, this sensor ensures accurate results in industrial environments. Easy to install with built-in LCD display and laser targeting, it caters to thermal monitoring, process control, and testing needs. Order now and enhance your thermal measurement capabilities with durable, high-performance technology designed for long-term reliability.
Get Omega OSAO50151TC today—built for precise thermal measurement with fast response times and versatile options for demanding industrial applications.
Frequently Asked Questions
Where can I buy OMEGA OSAO50151TC?
You can click on the BUY or RFQ button to purchase OSAO50151TC from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part OSAO50151TC?
You can download the OSAO50151TC datasheet or visit the OMEGA website for support.
Who is the manufacturer of OSAO50151TC?
OMEGA
