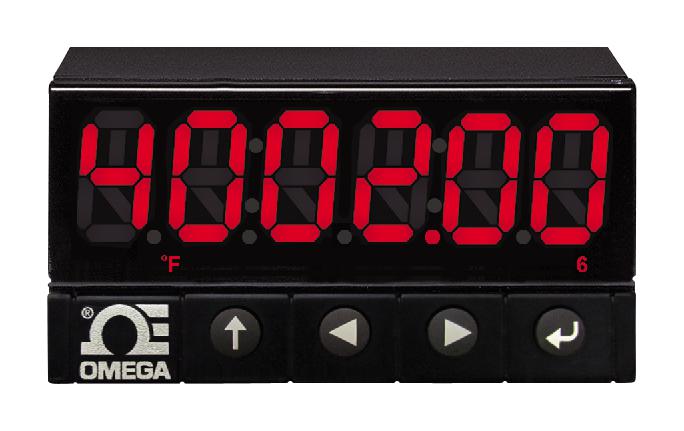

OMEGA CN8DPT305006EIP Process Controller
The CN8DPT305006EIP is a versatile temperature, process, and strain controller from the Platinum Series. It features a 4-digit, bright, three-color LED display with wide viewing angles and firmware-configurable inputs including thermocouples, RTDs, thermistors, voltage, current, and strain. The device offers multiple control modes such as PID, ON/OFF, and adaptive fuzzy logic, with up to 99 programmable ramp/soak programs, alarms, and various outputs, including isolated analog and DC pulses. Communication options include USB, Ethernet, and serial interfaces, making it suitable for industrial automation and research applications.
OMEGA CN8DPT305006EIP Process Controller Specifications:
- Display: 4-digit, 9-segment LED, wide viewing angle
- Input Types: Thermocouple, RTD, thermistor, voltage, current, strain
- Thermocouple Types: J, K, T, E, R, S, B, C, N
- RTD: 100/500/1000 Q, 2-, 3-, or 4-wire, curves IST 90
- Thermistor: 2252 Q, 5K Q, 10K Q
- Voltage Input: -100 to 100 mV, -1 to 1 V, -10 to 10 Vde
- Current Input: 4 to 20 mA, scalable 0-24 mA
- Control Modes: ON/OFF, PID, adaptive fuzzy logic
- Ramp/Soak Programs: Up to 99, with 16 segments each
- Outputs: 2 to 6 programmable, including DC pulse, SSR, relay, analog voltage/current, isolated analog
- Communication: USB, optional Ethernet, RS232/485 with MODBUS
- Power Supply: 12-36 Vdc, low voltage option, or 90-240 Vac, line voltage
- Environmental: 0 to 50°C, 90% RH non-condensing
- Certifications: UL, cUL, CE
Buy the Buy Platinum Temperature Process Strain Controller Part Number CN8DPT305006EIP Online
Purchase the Platinum Series CN8DPT305006EIP online today and experience superior control performance for temperature, process, and strain applications. This highly versatile controller features a bright LED display, multiple input options including thermocouples, RTDs, thermistors, and industry-standard communication interfaces such as USB and Ethernet. Its advanced PID, auto-tune, and fuzzy logic adaptive control deliver precise temperature regulation. With up to 99 programmable ramp and soak programs, multiple alarms, and flexible output configurations, it’s ideal for demanding industrial automation, research, and manufacturing environments. Get reliable performance now.
Get Platinum CN8DPT305006EIP today—built for precision and long-lasting durability in industrial and laboratory environments.
Frequently Asked Questions
Where can I buy OMEGA CN8DPT305006EIP?
You can click on the BUY or RFQ button to purchase CN8DPT305006EIP from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part CN8DPT305006EIP?
You can download the CN8DPT305006EIP datasheet or visit the OMEGA website for support.
Who is the manufacturer of CN8DPT305006EIP?
OMEGA
