OMEGA OSTWCCKF Thermocouple Connector

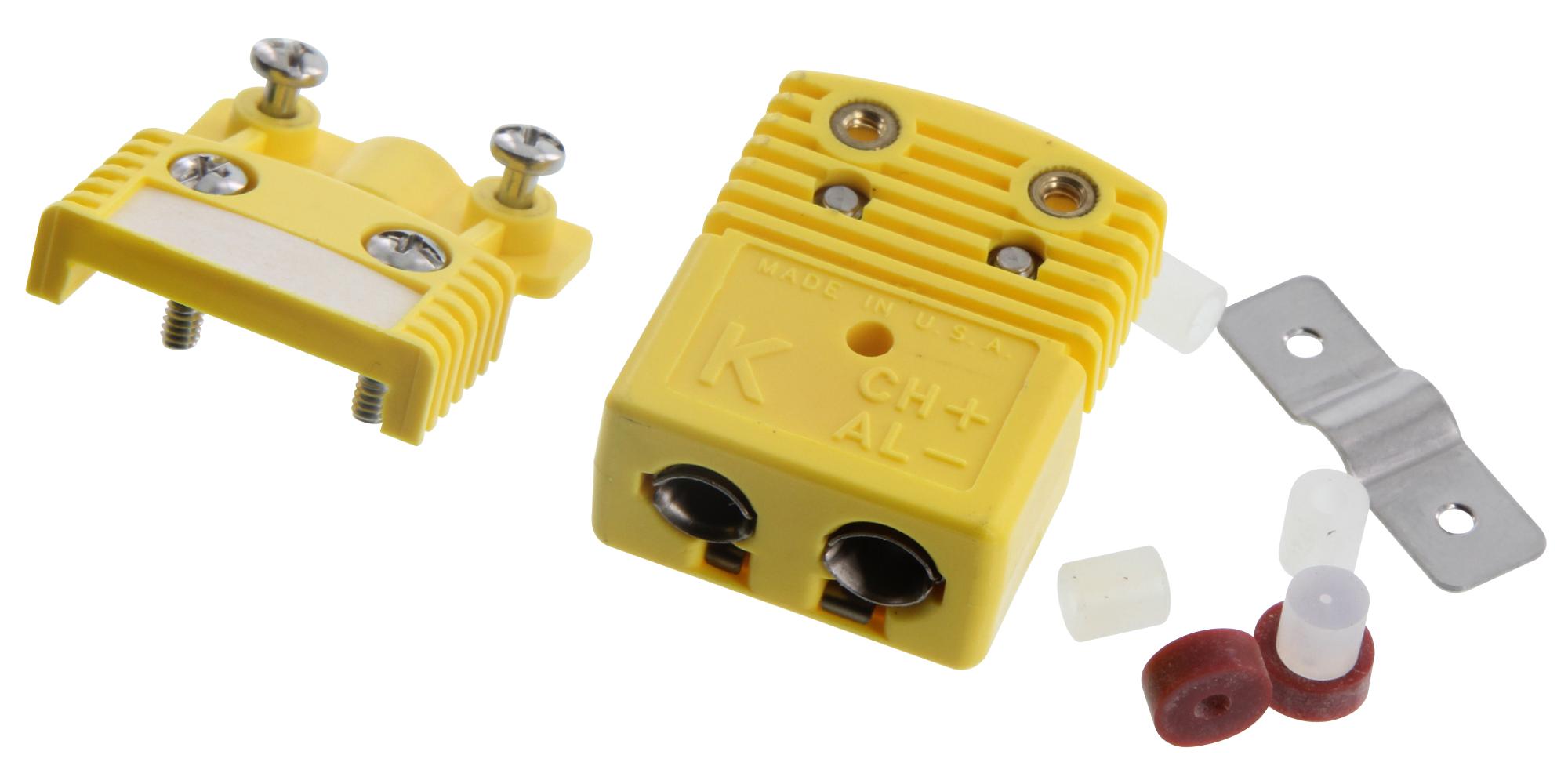

The OSTWCCKF is a high-quality K-type female thermocouple connector designed for reliable connection of thermocouple wires and temperature sensors. Constructed from durable, glass-filled nylon, it withstands temperatures from -29°C to 180°C. Its standard round 2-pole design features a yellow shell, compatible with various wire types including stranded, solid, TWSH, overbraid, or RSC coil wires. Equipped with quick connect washers, internal wire dividers, and a cable clamp cap, it ensures secure wiring and strain relief for process automation and temperature control applications.
OMEGA OSTWCCKF Thermocouple Connector Specifications:
- Material: Glass-filled nylon
- Temperature Range: -29°C to 180°C
- Wire Compatibility: Up to 14 AWG, stranded, solid, TWSH, overbraid, or RSC coil wires
- Design: Standard round 2-pole connector, yellow shell
- Features: Internal wire divider, quick connect contact washers, write-on window, integral cable clamp cap
- Dimensions: Diameter approximately 45.64 mm (1.80 inch)
- Back Plate: Supplied 4 inch, optional 14 inch opens to 8.2 mm (0.325 inch) OD
Buy the Buy Ultimate Connector Part Number OSTWCCKF Online
Enhance your temperature measurement setup with this reliable thermocouple connector, designed for durability and ease of installation. Made from glass-filled nylon, it operates efficiently from -29°C to 180°C. Its standardized round 2-pole configuration in a yellow shell offers compatibility with various wire types including stranded and solid wires up to 14 AWG. Features like internal wire dividers, quick connect washers, and an integral cable clamp cap ensure secure wiring, strain relief, and easy maintenance. Ideal for process control, automation, and temperature sensing applications, available for online purchase today.
Order your Ultimate Connector Series OSTWCCKF today and ensure secure, high-temperature sensor connections with strain relief and quick wiring features.
