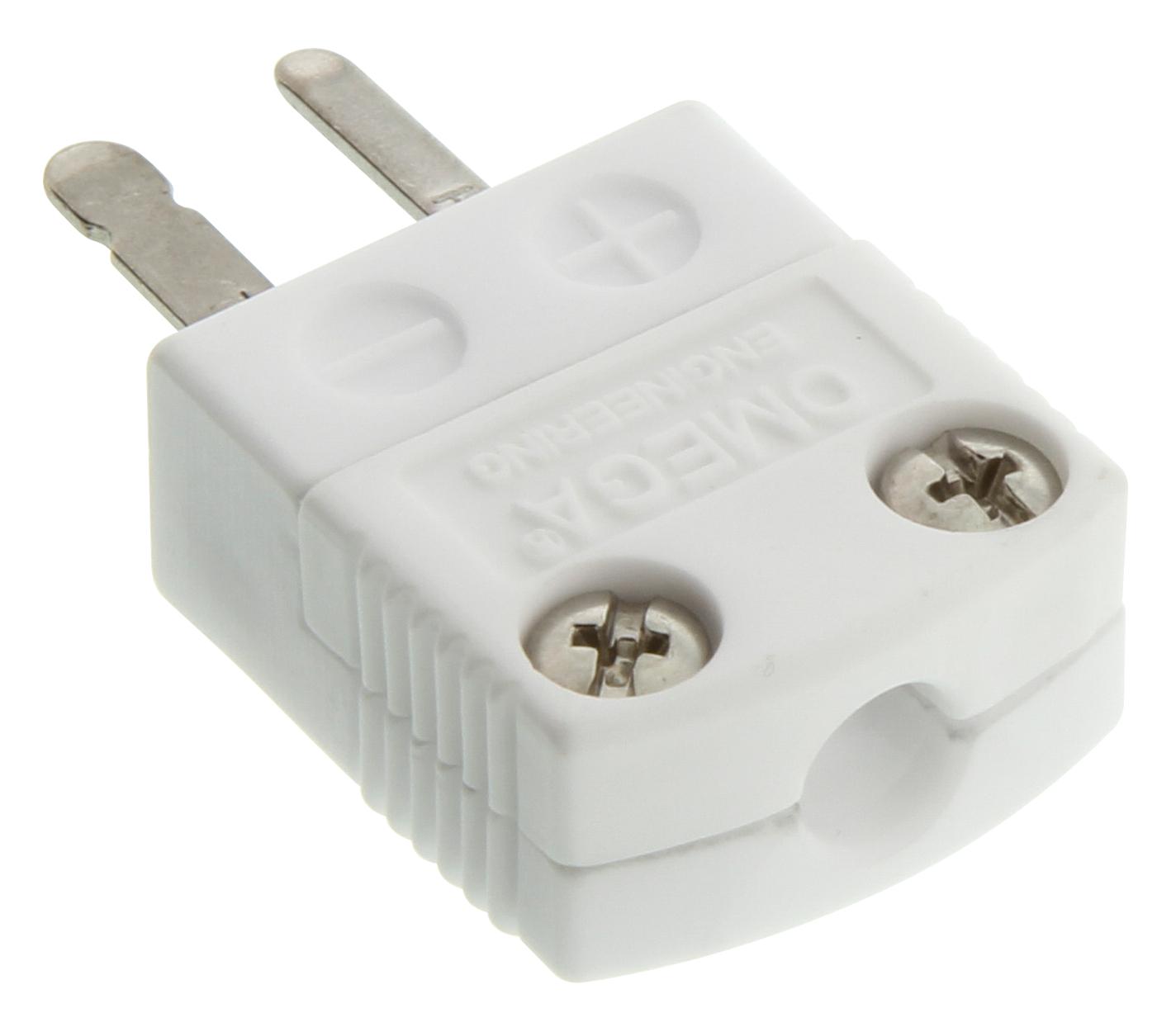

OMEGA USHXKM Ceramic Thermocouple Connector
The USHXKM connector is a high-temperature ceramic miniature connector designed for use with thermocouple wires in demanding environments. Made from high purity alumina, it offers exceptional durability with a one-piece ceramic construction, oversized terminal screws for easy wiring, and a removable color-coded dot conforming to ANSI and OMEGA standards. Suitable for applications up to 650°C, it features a removable cap for maintenance, accepts stranded or solid wires up to 20 AWG, and is available in glazed or unglazed models. Ideal for vacuum furnaces and precision temperature monitoring.
OMEGA USHXKM Ceramic Thermocouple Connector Specifications:
- Material: High purity alumina ceramic
- Temperature Rating: Up to 650°C (1200°F)
- Wire Range: Accepts stranded or solid wire up to 20 AWG
- Construction: One-piece ceramic body with removable cap
- Screws: Oversized terminal screws for easy wiring, Phillips/Slot combination
- Color-coding: Removable dot conforming to ANSI and OMEGA standards
- Models: Glazed and unglazed types available
- Connector Size: Approximately 4.93 mm (0.19 inch) wire access hole
- Compatibility: Suitable for fine gage thermocouple wires, high vacuum furnaces
- Application: High-temperature thermocouple connections, contamination-sensitive environments
Buy the Omega USHXKM – Reliable Ceramic Thermocouple Connector for Industrial Applications
Purchase your Omega USHXKM ceramic thermocouple connector online today to guarantee dependable temperature measurement in high-heat and vacuum environments. Designed with high purity alumina ceramic, it provides excellent durability and thermal stability up to 650°C. The connector features oversized terminal screws for easy wiring, and accepts wires up to 20 AWG. Available in glazed or unglazed models, it is ideal for sensitive processes where contamination must be avoided. Secure your order now for fast delivery and consistent quality.
Order your Omega USHXKM ceramic miniature thermocouple connector today and ensure your high-temperature measurement systems perform reliably and accurately.
