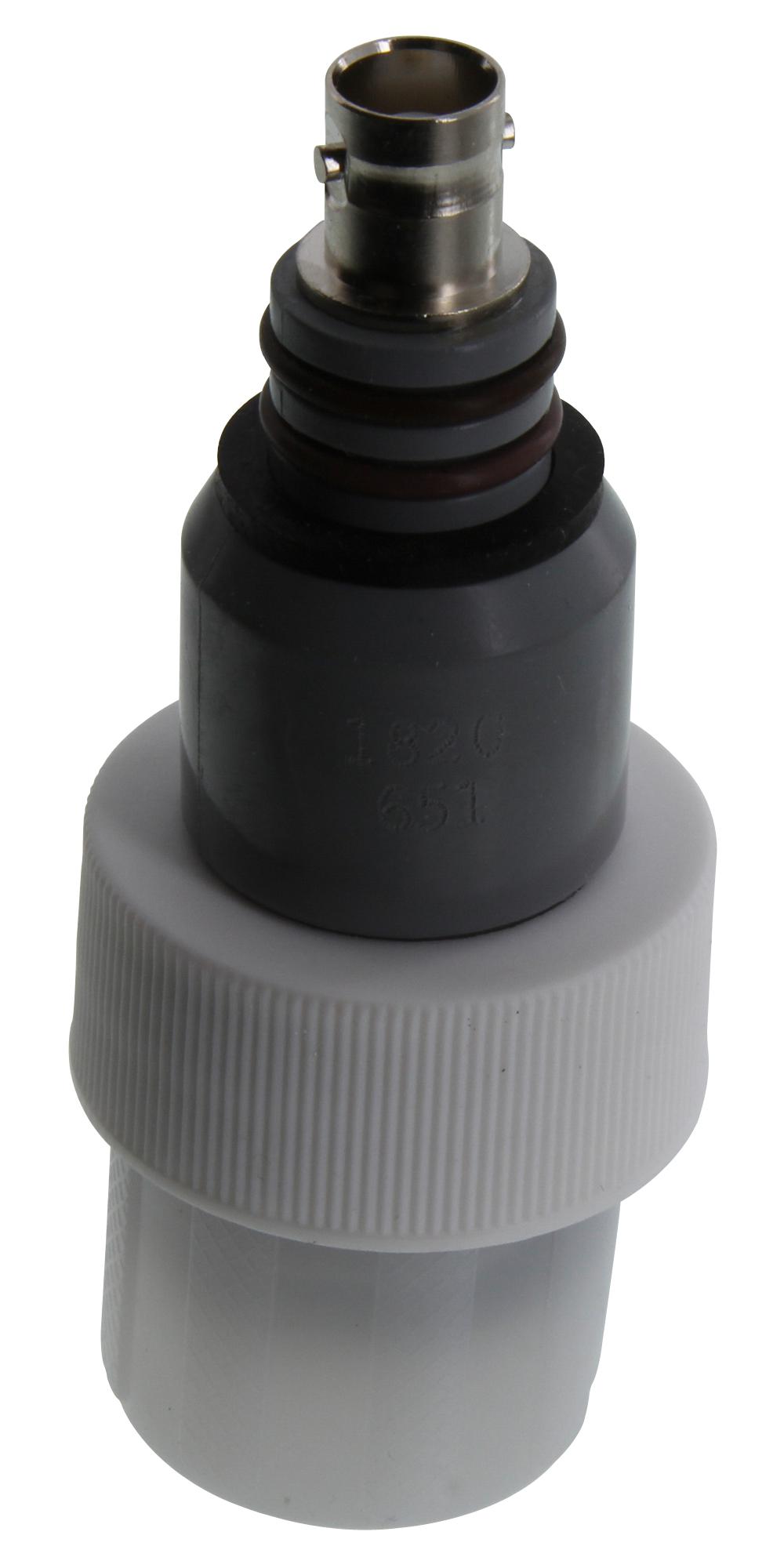

OMEGA PHE6510B Submersion pH Electrode
The CPVC submersion pH electrode is designed for accurate pH measurement in tanks, flumes, and streams. It features a quick disconnect mechanism that allows for easy installation and removal with a simple quarter-turn. The flat sensing surface is surrounded by a porous polyethylene reference junction, minimizing fouling. Suitable for high suspended solids and flocculation operations, it can be mounted at a 45° angle for increased scrubbing. Options include fluoride resistance and low conductivity variants, with maximum temperatures up to 87°C or 100°C depending on construction.
OMEGA PHE6510B Submersion pH Electrode Specifications:
- Maximum Temperature: 87°C (190°F) CPVC body, 100°C (212°F) PVDF body
- Construction: CPVC or PVDF
- Sensing Surface: Flat, designed for high solids environments
- Reference Junction: Porous polyethylene to minimize fouling
- Mounting: Quick disconnect with quarter-turn removal
- Cable Length: Standard 3 meters, expandable up to 16 meters
- Thread: NPT gasket connection
- Material: CPVC or PVDF
- Options: HF resistant, Low conductivity, Ground loop
- Temperature Compensation: Not required for ORP electrodes
- Applicable in: Tanks, streams, flumes, and high suspended solids applications
Buy the Omega PHE-6510B – Reliable pH Sensor for Industrial Applications
Order the Omega PHE-6510B submersion pH electrode today for precise pH measurement in tanks, streams, and flumes. Featuring easy quick disconnect mounting and fouling-resistant surface, it simplifies maintenance and ensures durability. Ideal for high suspended solids environments, available with options for fluoride resistance or low conductivity. Compatible with mounting assemblies, it offers flexible cable lengths up to 16 meters. Invest in this reliable sensor to ensure accurate and consistent pH readings essential for industrial and water treatment applications.
Buy Omega PHE-6510B submersion pH electrode now and experience accurate readings and reliable performance in challenging environments.
