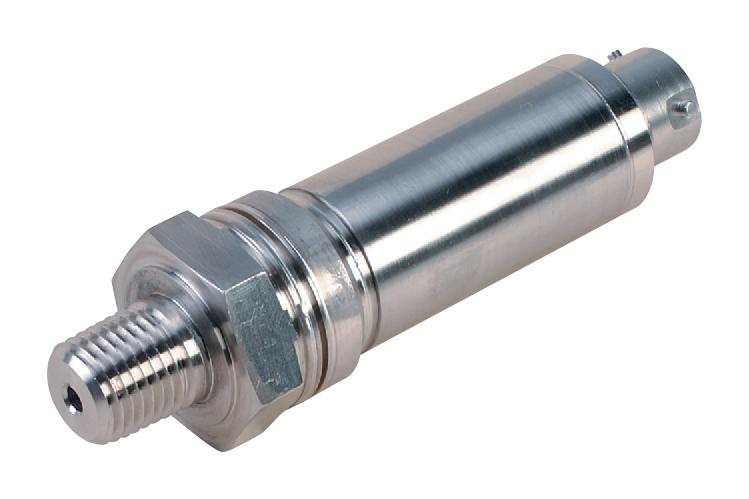

OMEGA PX429030A5V Pressure Transducer
High accuracy piezoresistive pressure transducer designed for industrial, aerospace, and automotive applications, offering 0.08% BSL accuracy, broad temperature compensation from -29 to 85°C, and digital thermal compensation. Featuring solid-state reliability, stainless steel wetted parts, and options for gage or absolute pressure, these transducers include 5-point NIST traceable calibration, fast response time, and rugged construction with secondary containment. Suitable for high performance measurement in demanding environments across pressure ranges from 10 in-H₂O to 5000 psi, with outputs including mV/V, 0-5 V, 0-10 V, and 4-20 mA.
OMEGA PX429030A5V Pressure Transducer Specifications:
- Accuracy: 0.08% BSL including linearity, hysteresis, and repeatability
- Temperature Range: -29°C to 85°C (-20°F to 185°F)
- Calibration: 5-Point NIST Traceable
- Output Options: mV/V, 0-5 V, 0-10 V, 4-20 mA
- Pressure Range: 10 in-H₂O to 5000 psi
- Wetted Parts: All stainless steel (316 SS)
- Response Time: <1 ms
- Electrical Protection: Reverse polarity, EMC, fluctuation protection
- Overpressure Limits: 10x span for gage pressure, 6x for absolute pressure
- Environmental: IP67 (PX409), IP65 (PX419), IP67 (PX409C), Twist lock, Mini-DIN optional
- Vibration: 5-2000 Hz, 30 min cycle; Shock: 50g, 11 ms half sine
- Bandwidth: DC to 1 kHz
- Construction: Solid-state piezoresistive with silicon wafer technology
Buy the OMEGA PX429 Series – Reliable Pressure Transducer for Industrial Applications
Purchase the OMEGA PX429 high accuracy pressure transducer online today and enhance your measurement systems with dependable performance. Ideal for industrial, aerospace, and automotive uses, this transducer offers excellent stability, fast response, and broad temperature compensation. Equipped with a 5-point NIST traceable calibration, stainless steel wetted parts, and multiple outputs including mV/V, voltage, and 4-20 mA, it ensures precise readings across a wide pressure range from 10 in-H2O to 5000 psi. Easy to install, rugged, and reliable for critical applications.
Order your OMEGA series PX429 pressure transducer today and ensure high-precision, durable measurement in demanding industrial environments.
