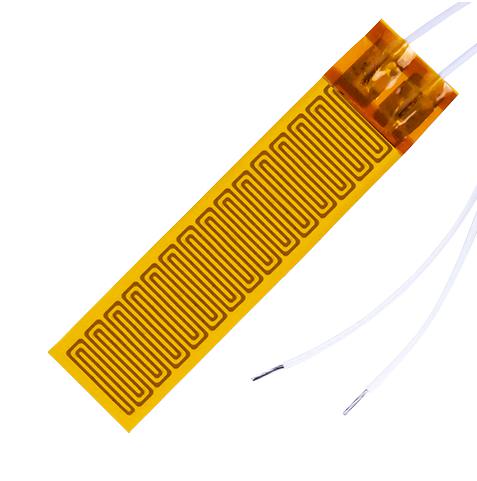

OMEGA PLMLV20210 Polyimide Flexible Heater
The PLM-Series polyimide flexible heaters by OMEGA are versatile heating solutions designed for varied surface shapes and installation needs. These heaters feature chemically resistant polyimide insulation, are flexible for application on rounded surfaces, and are available with optional pressure-sensitive adhesive to simplify installation. Capable of operating across a temperature range from -57°C to 232°C, these heaters provide customizable watt densities up to 10 W/in². Their non-magnetic, self-regulating design makes them suitable for a wide range of industrial and laboratory applications, ensuring reliable, efficient heat transfer and easy installation in tight spaces.
OMEGA PLMLV20210 Polyimide Flexible Heater Specifications:
- Operating Temperature: -57°C to 232°C for non-adhesive, -40°C to 149°C with adhesive
- Maximum Thickness: 0.01 inches, strain relief up to 0.08 inches
- Watt Density options: 2.5 W/in², 5 W/in², 10 W/in²
- Leads: 22 AWG, PTFE Insulated, Length: 12 inches +0.4 inches
- Dielectric Strength: 1250 VAC
- Minimum Bending Radius: 0.032 inches
- Maximum Operating Voltage: 28V, 115V, or 230V
- Model widths range from 0.5 inches to 10 inches, lengths from 1 to 12 inches
- Features include non-magnetic heating elements and optional pressure-sensitive adhesive
- Wattages vary per model, accommodating different heating requirements.
Buy the Omega Series PLM Polyimide Heater: PLMLV20210
Enhance your project with the Omega Series Polyimide Flexible Heater, model PLMLV20210. Designed for versatility and efficiency, this heater operates up to 28V with a power density of 10 W/in², ideal for precise temperature control. Its flexible, chemically resistant polyimide construction ensures easy installation on curved surfaces, while optional adhesive simplifies mounting. With a temperature range from -57°C to 232°C, it provides reliable heat for industrial, laboratory, and maintenance applications. Order online now for fast delivery and dependable heating performance.
Order your Omega Series PLM polyimide heater today and enjoy reliable, flexible heating performance for your industrial and laboratory projects.
