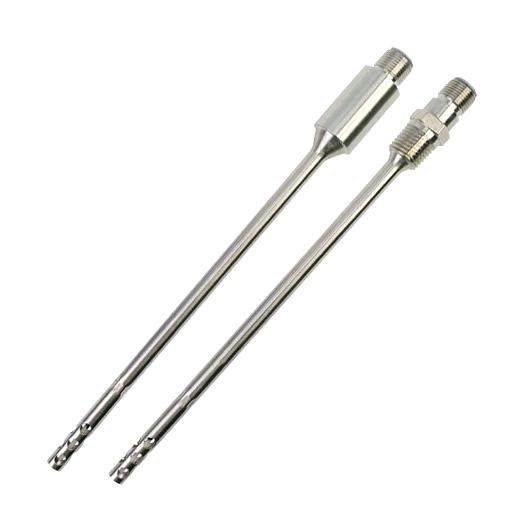

OMEGA PR25APA06000M12 Air Temperature RTD Probe
The PR-25AP Series air temperature RTD probe offers precise temperature measurement in industrial environments, featuring a Pt100 element with Class A accuracy. Encased in 316L stainless steel with vent holes, it withstands up to 400 psi and operates across -100 to 250°C. The M12, 4-pin A-coded connector simplifies installation, while the perforated sheath protects the sensing element from debris for fast, reliable responses. Optional mounts include NPT threads, making it adaptable for varied airflow and process conditions. Compatible with a range of accessories, this probe ensures accurate air temperature monitoring in demanding settings.
OMEGA PR25APA06000M12 Air Temperature RTD Probe Specifications:
- Sensor Type: Pt100 RTD with Class A Accuracy
- Material: 316L stainless steel with vent holes
- Temperature Range: -100 to 250°C (-148 to 500°F)
- Connection: M12, 4-pin, A-coded plug
- Maximum Pressure: 400 psi (27.6 bar)
- Probe Diameter: 0.66 inches (16.8 mm)
- Probe Lengths: 6 inches, 12 inches, 18 inches options
- Mounting Options: No threads or NPT threads (1/4, 3/8, 1/2 inch)
- Design Features: Perforated sheath over sensing element, debris protection
- Operating Environment: Suitable for airflow and ambient air measurement
Buy the Omega PR-25AP Series U+2013 Reliable Air Temperature Measurement Sensors for Industrial Applications
Enhance your industrial temperature monitoring with the Omega PR-25AP air temperature RTD probe. Featuring a Pt100 element with Class A accuracy, stainless steel construction, and versatile mounting options, it ensures precise, fast responses across a wide temperature range. The M12 connector simplifies setup, while vent holes protect the sensing element from debris. Whether for airflow or ambient air measurement, this robust probe offers reliability and performance in demanding environments. Order now to optimize your process control systems with this high-quality sensor.
Buy Omega PR-25AP Series air temperature RTD probe now and experience unmatched accuracy, durability, and flexible installation options for your industrial processes.
