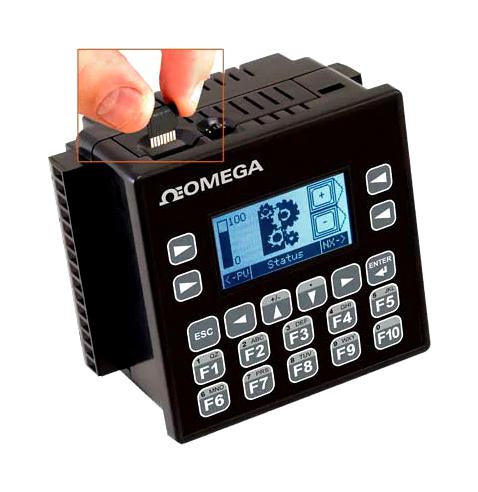

OMEGA HEXT102 Industrial Controller
A programmable logic controller integrated with an operator interface, featuring a sunlight-readable 160 x 128 touchscreen, built-in I/O, networking, and removable MicroSD storage. It includes four high-speed counting digital inputs, six relay outputs rated at 3A, and four configurable analog inputs for versatile process control. This compact, all-in-one device supports Ethernet, serial communications, and optional modem connectivity, making it suitable for industrial automation, machine control, and remote monitoring applications. It employs the industry-standard Cscape™ software for programming and configuration, ensuring ease of use and scalability.
OMEGA HEXT102 Industrial Controller Specifications:
- Display: 160 x 128 daylight readable touchscreen
- Controller memory: 256 KB
- Logic scan rate: 1.2 mS/K
- Digital Inputs: 12, including 4 high-speed counter inputs
- Relay Outputs: 6, rated at 3A each
- Analog Inputs: 4, configurable between 0-10 V or 4-20 mA
- Power Supply: 12V/24V DC compatible
- Networking: Ethernet (optional), serial ports, modem (optional)
- MicroSD Card Slot: Yes, up to 2 GB supported
- Dimensions: 95.1 mm height, 95.1 mm width, 63.9 mm depth
- Weight: 0.354 kg
- Environmental: 0 to 50°C (~32 to 122°F), NEMA 4X (IP66) rated for washdown environments
- Communication Ports: 2 serial ports, Ethernet (optional), CAN network (via expansion)
Buy the Omega Series XL6 Temperature Control: HEXT102
Enhance your automation projects with the Omega Series XL6 controller, featuring a bright sunlight-readable touchscreen, built-in I/O, advanced networking options, and removable MicroSD storage. Ideal for machine control, temperature regulation, remote monitoring, and process automation, this compact unit supports high-speed counters, configurable analog inputs, and flexible communication protocols. Easy to program with Cscape™ software, it offers reliability and scalability for industrial applications. Purchase online today for efficient, reliable control solutions.
Get Omega XL6 series HEXT102 today—optimized for industrial control with touchscreen and robust networking capabilities.
