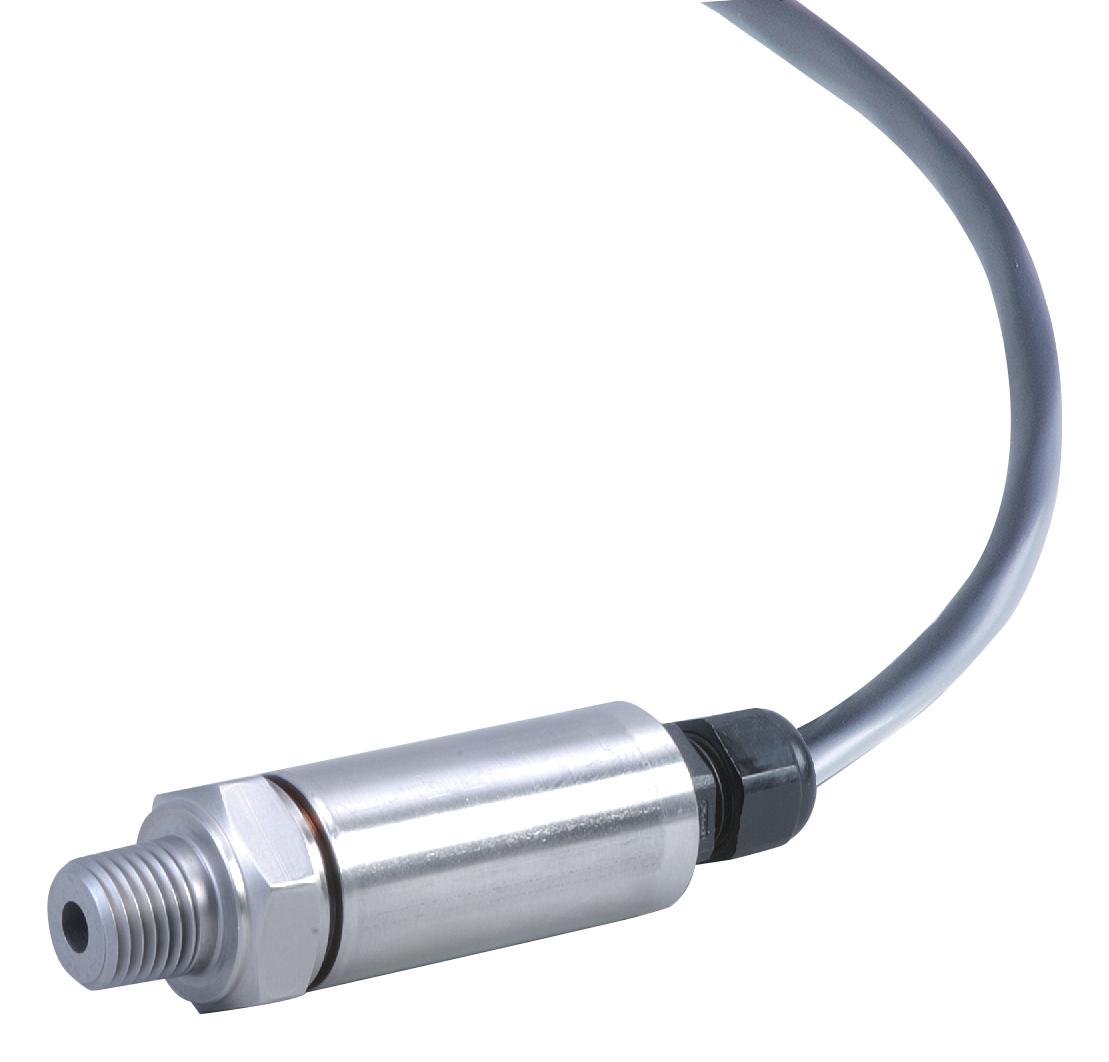

OMEGA PX309015G5V Pressure Transducer
The PX309 series high-performance pressure transducer offers precise and reliable measurements with ±0.25% accuracy, utilizing advanced silicon technology. Constructed entirely from stainless steel, it provides excellent durability and stability across a broad temperature range from -40°C to 85°C. Ideal for industrial applications, it measures gauge pressure from 0 to 15 psi and outputs a 0-5V DC signal, compatible with multimedia systems. Its rugged design includes IP65 protection, long-term stability, and resistance to vacuum conditions at higher units. The transducer is supplied with a 1.5-meter cable and a NIST calibration report, making it suitable for demanding environments requiring precise pressure monitoring.
OMEGA PX309015G5V Pressure Transducer Specifications:
- Excitation: 9 to 30 Vdc (<10 mA), reverse polarity and overvoltage protected
- Output: 0 to 5 Vde
- Accuracy: ±0.25% FS BSL at 25°C, includes linearity, hysteresis, and repeatability
- Zero Offset: +2% FSO; +4% for 1 and 2 psi ranges
- Span Setting: +2% FSO; +4% for 1 and 2 psi ranges
- Total Error Band: +2% FSO, includes various errors excluding some ranges
- Long-Term Stability: ±0.25% over one year
- Operating Temperature: -40°C to 85°C (-40°F to 185°F)
- Pressure Port: %-18 MNPT
- Cable: 1.5 m (5') long, includes pressure transducer and calibration report
- Material: All stainless steel wetted parts for durability
- Proof Pressure: 3x capacity or 20 psi for <50 psig, 2x capacity at 2100 psi
- Burst Pressure: 5x capacity or 25 psi, whichever is greater
- Response Time: <1 ms
- Shock Vibration: 50 g, +20 g vibration tolerance
- Temperature Compensation: -20°C to 85°C for >5 psi, and 0°C to 50°C for <5 psi
- Pressure Range: 0 to 15 psi (0 to 1 bar)
- Connectors: 3-conductor cable with mini DIN, twist-lock, or other options
- Weight: 155 g (5.4 oz)
Buy the All Stainless Steel PX309 – Reliable Pressure Transducer for Industrial Applications
Order the PX309 pressure transducer online today and ensure reliable pressure monitoring in industrial environments. Featuring all stainless steel construction, 0-15 psi range, 0-5V output, and IP65 protection, it offers superior durability and precision. Whether for process control or instrumentation, this rugged, high-stability transducer provides accurate readings with long-term stability, making it an ideal choice for demanding applications. Take advantage of fast delivery, calibration certification, and expert support by purchasing directly online today.
Buy PX309 high-accuracy stainless steel pressure transducer now and experience unmatched durability and precision for industrial pressure measurement tasks.
