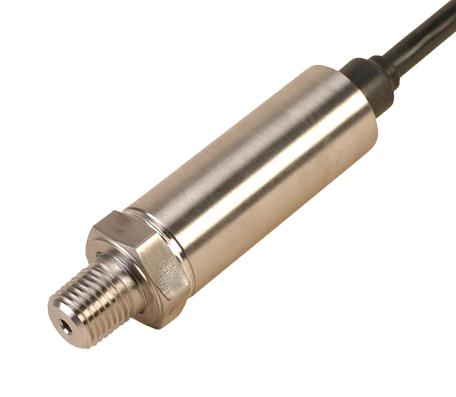

OMEGA PX459005GI Pressure Transducer
The PX459005GI is a high-accuracy silicon wafer-based pressure transducer designed for industrial, aerospace, and automotive applications. It features a solid-state piezoresistive design with high temperature performance, broad temperature compensation from -29°C to 85°C, and a 0.08% static accuracy including linearity, hysteresis, and repeatability. Equipped with digital thermal compensation, stainless steel wetted parts, and custom calibration options, it offers reliable and stable measurements for gage, absolute, and differential pressure ranges from 10 in H2O to 5000 psi. Encased for durability and protected against environmental factors, the PX459 delivers exceptional performance in demanding environments.
OMEGA PX459005GI Pressure Transducer Specifications:
- Pressure Range: 10 inH2O to 5000 psi
- Accuracy: 0.08% BSL including linearity, hysteresis, and repeatability
- Temperature Range: -29°C to 85°C (-20°F to 185°F)
- Sensor Type: Solid-state piezoresistive with silicon wafer
- Output Options: mV/V, 0-5 Vdc, 0-10 Vdc, 4-20 mA
- Wetted Parts: 316 stainless steel
- Response Time: <1 ms
- Protection Class: IP65/IP67 depending on configuration
- Electrical Protection: Reverse polarity, EMC, power fluctuation
- Calibration: 5-point NIST traceable
- Pressure Cycles: Minimum 1 million
- Long-term Stability: ±0.1% FS per year
- Overpressure Limit: 1.5 x maximum range
- Environmental: Shock 50 g, vibration 5-2000 Hz, ESD IEC61000-4-2
- Construction: Glass to metal seals, sealed chamber with secondary containment
- Response: Digital dynamic thermal compensation across temperature and pressure
Buy the Omega PX459005GI – Reliable Pressure Transducer for Industrial Applications
Discover the Omega PX459005GI pressure transducer, engineered for precision and durability in industrial, aerospace, and automotive settings. Featuring a solid-state design with high temperature performance, it offers broad measurement ranges from 10 inH2O to 5000 psi. Its exceptional accuracy of 0.08% BSL, coupled with NIST traceable calibration and digital thermal compensation, ensures consistent, reliable readings. Built with stainless steel wetted parts and IP65/IP67 protection, it withstands harsh environments, making it the ideal choice for critical applications demanding precision and stability.
Order your Omega PX459005GI high-accuracy pressure transducer today and equip your projects with dependable, stable measurements in demanding environments.
Frequently Asked Questions
Where can I buy OMEGA PX459005GI?
You can click on the BUY or RFQ button to purchase PX459005GI from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part PX459005GI?
You can download the PX459005GI datasheet or visit the OMEGA website for support.
Who is the manufacturer of PX459005GI?
OMEGA
