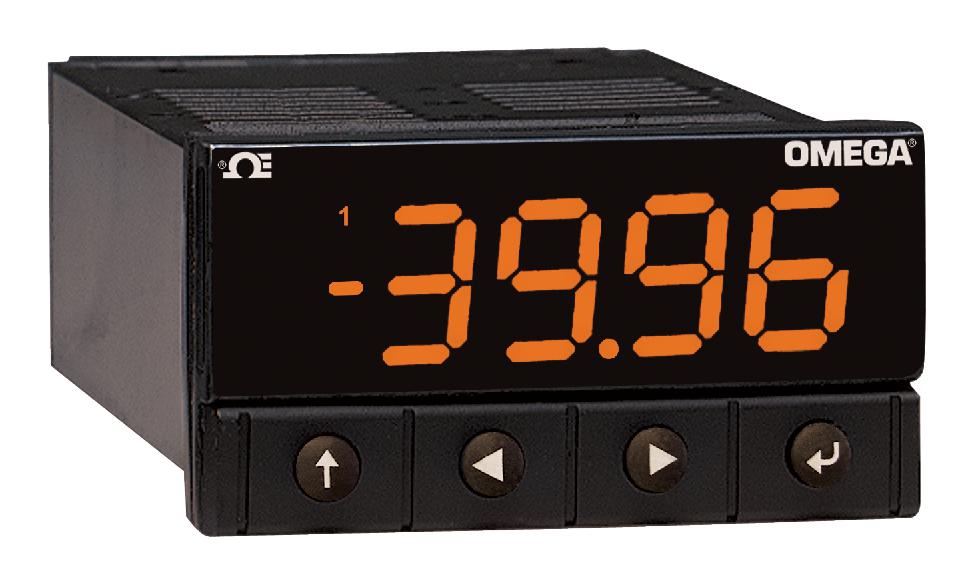

OMEGA CN32PT145 Process Controller
The CN32PT145 is a high-performance temperature and process controller featuring a large three-color LED display, versatile universal inputs including thermocouples, RTDs, thermistors, and analog signals. It offers customizable control modes like PID with auto-tune and fuzzy logic, up to 99 programs with ramp/soak segments, and multiple alarm configurations for precise process automation. Its advanced communication options include standard USB, optional Ethernet and serial interfaces, and robust isolation for safety. Designed for industrial and scientific applications, it delivers exceptional flexibility, accuracy, and ease of use in compact DIN-sized enclosures.
OMEGA CN32PT145 Process Controller Specifications:
- Display: 4-digit, 9-segment LED, 42 mm width, wide viewing angle
- Control Modes: PID with auto-tune and fuzzy logic, on/off, proportional, PID
- Inputs: Thermocouple types J, K, T, E, R, S, B, C, N; RTDs 100/500/1000 Ω; thermistors 2252 Q, 5K Q, 10K Q; analog voltage -100 to 100 mV, -1 to 1 V, -10 to 10 V; current 4 to 20 mA, 0 to 24 mA; strain +50 mV, +100 mV
- Outputs: 2 to 6 programmable control/alarm/retransmission, including DC pulse, SSR, relay, analog voltage/current, isolated analog
- Communication: Standard USB, optional Ethernet (RJ45), RS232/RS485 with MODBUS, TCP/IP, and web server capabilities
- Power: 90-240 Vac, 50-400 Hz; low voltage option 12-36 Vdc, 3-4 W
- Isolation & Certification: UL, cUL, CE, NEMA 4x front bezel, protection against electrical surges, 5-year warranty
- Environmental Conditions: Operating temperature 0 to 50°C, RH 90%, non-condensing, panel mount with IEC and NEMA standards
Buy the Buy OMEGA CN32PT145 Part Number CN32PT145 Online
Secure your OMEGA Series CN32PT145 process controller online today for precise temperature and process management. Featuring universal sensor inputs, multiple control modes including PID with auto-tune and fuzzy logic, and flexible output options, this device simplifies complex automation tasks. Its advanced communication interfaces, including USB, Ethernet, and serial, deliver seamless integration into your systems. Built with a rugged NEMA 4x front bezel and certified safety standards, the CN32PT145 offers outstanding reliability and ease of setup for demanding industrial applications. Order now for dependable control excellence.
Order your OMEGA Series CN32PT145 temperature controller today and experience reliable precision for your industrial and scientific measuring needs.
Frequently Asked Questions
Where can I buy OMEGA CN32PT145?
You can click on the BUY or RFQ button to purchase CN32PT145 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part CN32PT145?
You can download the CN32PT145 datasheet or visit the OMEGA website for support.
Who is the manufacturer of CN32PT145?
OMEGA
