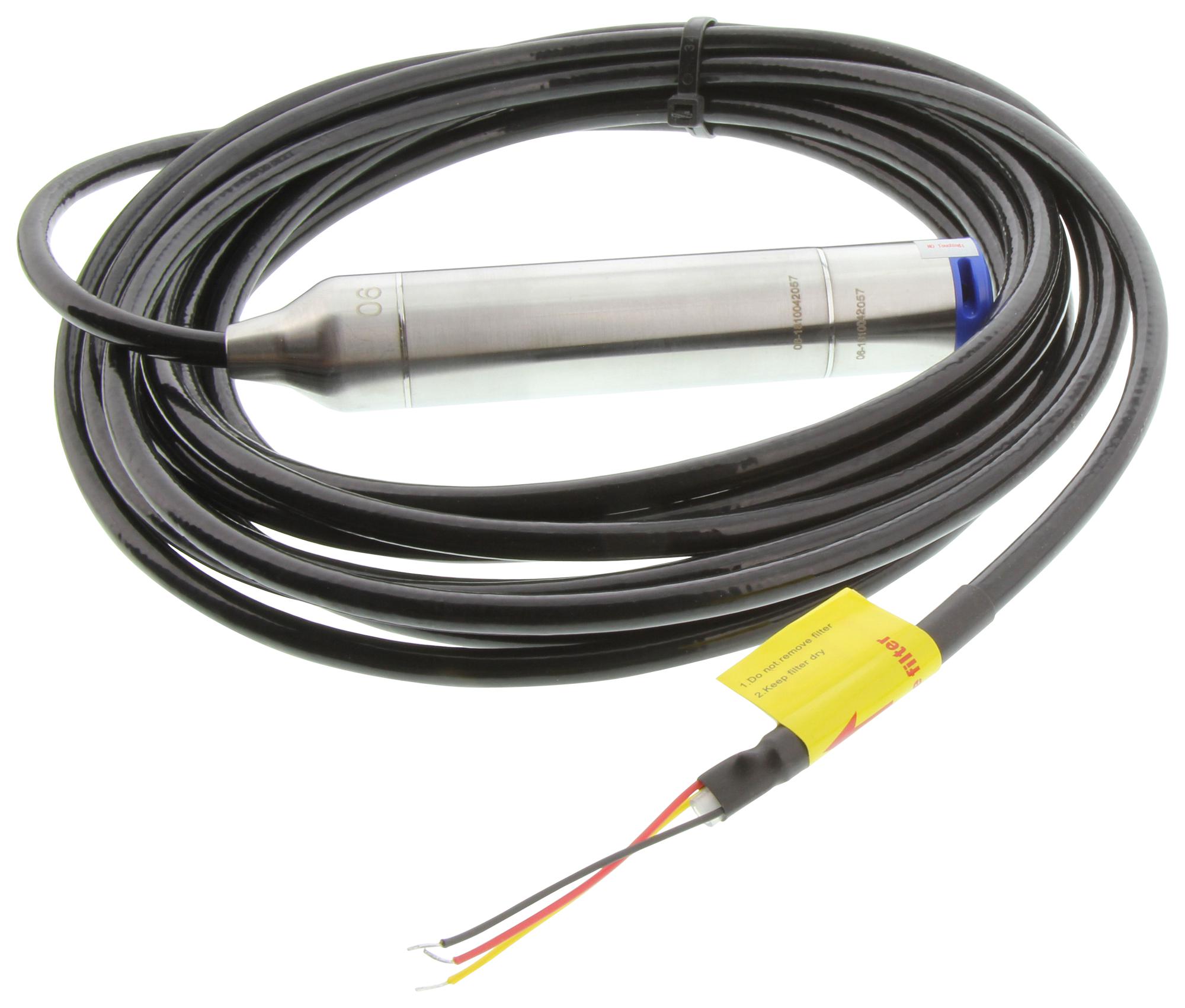

OMEGA PX633A1100GI Submersible Level Transmitter
The PX633 Submersible Level Transmitter offers high-precision, fully submersible level measurement suitable for demanding environments. Featuring advanced microprocessor technology, comprehensive linear and temperature error compensation, and a rugged stainless steel body, it ensures long-term reliability and stability. Equipped with transient voltage protection, an inverted cone seal for durability in turbulent media, and a unique water-tight cable seal system, it excels in applications requiring accurate and stable liquid level monitoring. Suitable for various industries, it guarantees high static accuracy, repeatability, and temperature compensation for reliable operation.
OMEGA PX633A1100GI Submersible Level Transmitter Specifications:
- Accuracy: PX633A1-0.01% FS NLHR, PX633A2-0.25% FS NLHR, PX633A5-0.50% FS NLHR
- Long Term Stability: +0.2% FS per year
- Temperature Effects: 40.2% FS/10K from 20°C to 80°C
- Power Supply: 10.5 to 55VDC
- Output Signal: 4 to 20mA DC
- Maximum Current: 20.8mA
- Transmission Distance: Less than 1000m
- Protection Class: IP68
- Operating Temperature: -10°C to 70°C
- Storage Temperature: -30°C to 80°C
- Electrical Connection: PUR cable, diameter 7.5±0.2mm
- Diaphragm Material: 316 SS
- Fill Fluid: Silicon oil
- Sensor Seal: O-ring, FMK
- Side Cover: 316 SS, 28mm diameter
- Vibration Resistance: 20g (5-2000Hz), <0.1% FS effects
- Certifications: CE, EMC compliant
Buy the Omega Series PX633 Submersible Level Transmitter: PX633A1100GI
Enhance your liquid level measurement systems with the Omega PX633 submersible level transmitter, designed for high accuracy, durability, and long-term stability. It features advanced microprocessor technology, comprehensive error compensation, and a rugged stainless steel body for reliable performance in harsh environments. The sealed cable system and high protection class IP68 ensure water-tight integrity even in turbulent media. Suitable for industrial applications, it offers precise readings, stable operation, and easy integration. Purchase online today to ensure reliable and accurate level monitoring in demanding conditions.
Buy Omega PX633 submersible level transmitter now and experience unmatched reliability and performance in demanding liquid level measurement environments.
