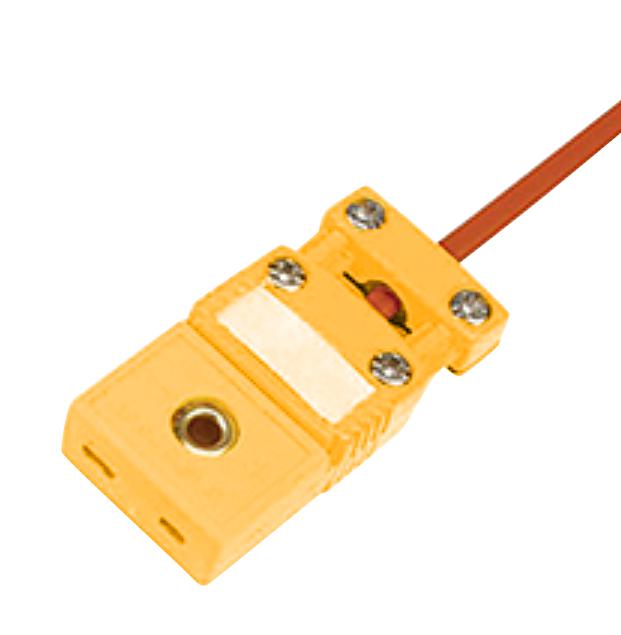

OMEGA SMPWCCNIF Miniature Connector
The SMPW-CC Series miniature connector with integral cable clamp cap offers easy straight wire termination without the need for a wire loop. Designed for quick assembly, it features captive screws, strain relief via grommet, and accepts stranded or solid wires from 40 AWG up to 20 AWG. Constructed from glass-filled nylon rated from -29 to 180°C, it is suitable for various electrical and industrial applications. Sold individually or in bulk, the connector ensures reliable, secure connections with minimal disassembly effort, making it ideal for tight spaces and precise wiring tasks.
OMEGA SMPWCCNIF Miniature Connector Specifications:
- Material: Glass Filled Nylon
- Temperature Rating: -29°C to 180°C (-20°F to 356°F)
- Clamp Capacity: Accepts 40 AWG up to 20 AWG wire
- Cable Clamp Cap: Integral with strain relief and grommet
- Screw Type: Combination Phillips/slot, captive screws
- Screw Size: 0.22 inches OD
- Back Plate: Included
- Wire Access: 3.17 mm (0.13 inch)
- Rated for: Straight wire termination, no wire loop required
- Connector Size: 12.7 mm (0.5 inch) diameter
- Compatibility: Stranded or solid wire, soft or armored cable
- Packaging: Single or bulk packs of 5, 50, 100
- Operating Temp Range: -29°C to 180°C
- Additional components: Grommets, strain relief silicone grommet available separately
Buy the Buy Omega SMPW-CC Series Connector Part Number SMPWCCNIF Online
Purchase the Omega SMPW-CC Series miniature connector online today. Designed for easy straight wire termination, it features integral strain relief with grommet, captive screws, and accepts wires from 40 to 20 AWG. The high-temperature rated nylon construction ensures durability from -29°C to 180°C, making it suitable for industrial, electrical, or automation applications. Available in single units or bulk packs of 5, 50, or 100. Secure your wiring needs with this reliable, easy-to-assemble connector designed for precision and long-lasting durability.
Get Omega SMPW-CC Series connector today—designed for quick installation and high-temperature performance, ideal for secure electrical connections in demanding environments.
Frequently Asked Questions
Where can I buy OMEGA SMPWCCNIF?
You can click on the BUY or RFQ button to purchase SMPWCCNIF from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part SMPWCCNIF?
You can download the SMPWCCNIF datasheet or visit the OMEGA website for support.
Who is the manufacturer of SMPWCCNIF?
OMEGA
