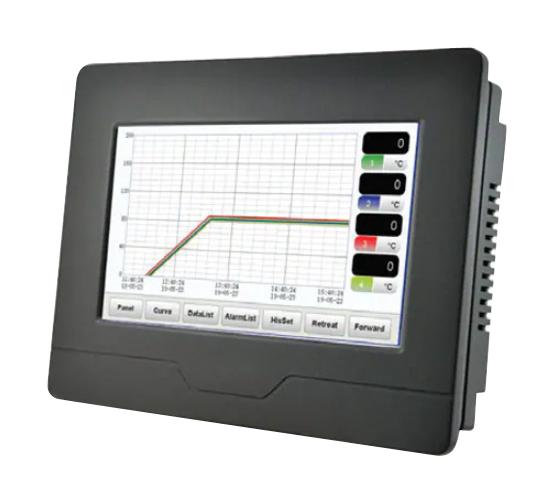

OMEGA RDA760TC Paperless Data Logger
The RDA paperless recorder series by Omega is a cost-effective, large-format data logger with a 7-inch color TFT touch screen. It combines measurement, display, alarms, and data logging in a slim, easy-to-install device that requires no external HMI. Featuring two isolated inputs for thermocouples or RTDs per channel, it supports independent configurations with functions like square-root, multiplication, addition, and subtraction. Internal filtering and digital adjustment enhance measurement accuracy of 0.2% FS. Real-time trend and bar graphs display historical and alarm data, accessible internally or via USB export, with a maximum sample rate of 1Hz. Weighing 0.7kg, it has a compact depth of 40mm, suitable for space-constrained environments, with a powerful yet low power consumption of ≤5W, making it ideal for industrial data logging and process monitoring.
OMEGA RDA760TC Paperless Data Logger Specifications:
- Display Size: 7 inches (177.8mm)
- Resolution: 800x480
- Input Type: Two isolated thermocouple or RTD per channel
- Channels Supported: 2 inputs for RDA-520, 4 for RDA-740, 6 for RDA-760
- Measurement Accuracy: 0.2% FS ± 1 digit
- Input Types Supported: Pt100, Cu50, K, S, R, E, J, T, B, N, etc.
- Response Time: ≤1.5 seconds
- Memory: 150MB internal storage
- Sampling Rate: Max 1Hz
- Power Supply: 100-240VAC, -15%, +10%, 50-60Hz
- Power Consumption: ≤5W
- Operating Temperature: -10°C to +60°C
- Dimensions: 7.99 x 6.10 x 1.57 inches
- Weight: 0.7kg (1.54 lbs)
- Exterior Depth: 40mm
- Certification: IEC61000-4-4, IEC61000-4-5
- Isolation Voltage: 2300VDC (power, relay, signal), 600V (electroweak terminals)
- Environment: Humidity 90% RH, natural air cooling
Buy the Buy Omega RDA Series Part Number RDA760TC Online
Purchase the Omega RDA760TC paperless data logger online today. This advanced industrial device combines a large 7-inch color touch screen, high measurement accuracy, and versatile input options supporting thermocouple and RTD sensors. Its compact, slim design with only 40mm depth makes it ideal for space-limited environments. Featuring internal storage of 150MB, real-time trend plotting, data export via USB, and low power consumption, it ensures reliable and efficient process monitoring. Upgrade your measurement system now with this robust, easy-to-install recording solution designed for long-lasting performance.
Get Omega RDA760TC today—built for precision and long-lasting durability in industrial data logging applications.
Frequently Asked Questions
Where can I buy OMEGA RDA760TC?
You can click on the BUY or RFQ button to purchase RDA760TC from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part RDA760TC?
You can download the RDA760TC datasheet or visit the OMEGA website for support.
Who is the manufacturer of RDA760TC?
OMEGA
