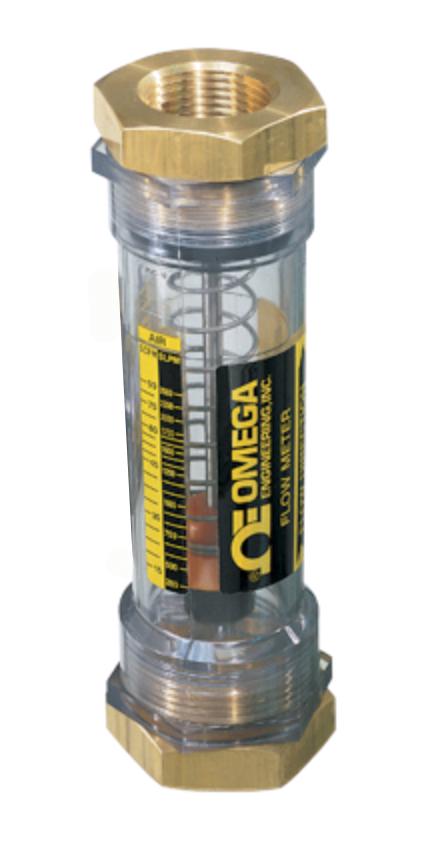

OMEGA FL510BSPT Inline Flowmeter
The FL-500 Series inline flowmeters are designed for accurate measurement of water and air flow in various industrial applications. Made with durable materials like PVC, brass, and stainless steel, these flowmeters feature easy installation and maintenance. They provide direct-reading flow rates with scale options for water and air, suitable for pressures up to 200 psig and temperatures up to 66°C (150°F). With a construction designed for ease of cleaning and versatile mounting, they are ideal for controlling and monitoring fluid flow accurately in laboratory, manufacturing, and process environments.
OMEGA FL510BSPT Inline Flowmeter Specifications:
- Gas Service: 100 psig @ 21°C (70°F)
- Accuracy: +5% FS
- Maximum Temperature: 66°C (150°F) @ 25 psig
- Flow Tube and Float Material: PVC
- Pressure Drop: 4 psig FS
- Dimensions: 177.8 mm (7") long
- End Fittings: 316 SS, Brass (FL-505 to FL-515), Female NPT
- Seals: FKM
- Inner Wetted Parts: Brass, PVC, 316 SS
- Fluid Service: Water (200 psig @ 21°C), Air (100 psig @ 21°C)
- Flow Range: 4 to 200 GPM for water, 15 to 500 SCFM for air
- Scale for Air and Water, Easy to Clean, Mountable in Any Position
- Optional NIST Traceable Certificate available upon request
- Temperature Rating: Up to 66°C (150°F), Pressure Rating: 200 psig max
Buy the Buy Industry-Grade Flowmeters Part Number FL510BSPT Online
Order the FL-510BSPT inline flowmeter today and experience precise, reliable flow measurement for water and air in your industrial processes. Crafted from durable materials like PVC and stainless steel, it offers easy installation and straightforward calibration. With a maximum pressure of 200 psig and temperature ratings up to 66°C (150°F), this flowmeter is perfect for laboratories, manufacturing, and process control. Enhance your fluid management with this easy-to-maintain, versatile flow measurement solution available for online purchase now.
Get FL-510BSPT flowmeter today—built for quick installation, reliable measurement, and durable performance in water and air applications.
Frequently Asked Questions
Where can I buy OMEGA FL510BSPT?
You can click on the BUY or RFQ button to purchase FL510BSPT from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part FL510BSPT?
You can download the FL510BSPT datasheet or visit the OMEGA website for support.
Who is the manufacturer of FL510BSPT?
OMEGA
