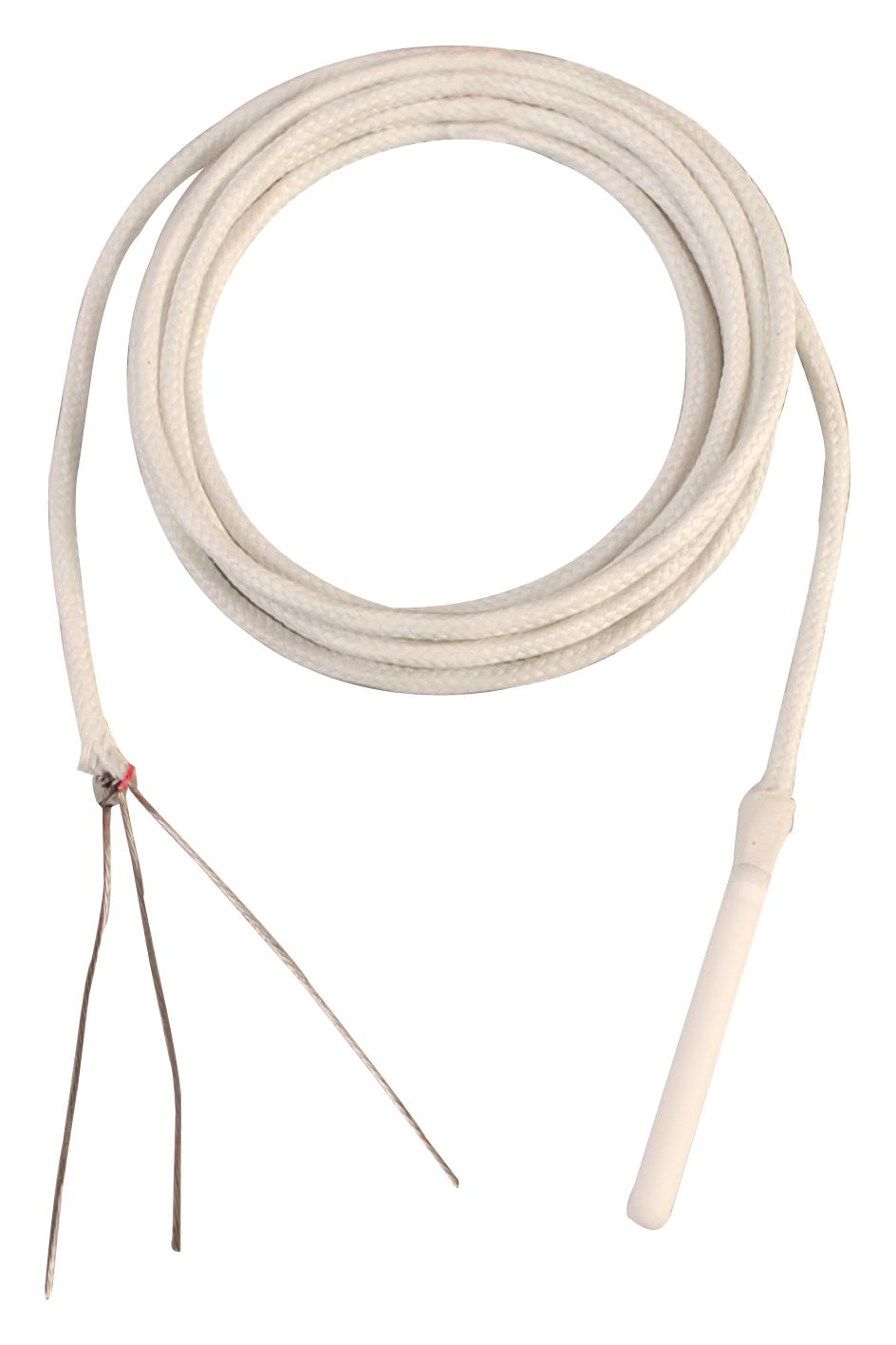

OMEGA RTD21PT100KN252836T Platinum RTD Sensor
This platinum RTD sensor features a thin-film sensing element with high accuracy Class A and % DIN standards, designed for fast response times under 75 ms in flowing water. It operates up to 480°C (900°F), with options for fiberglass or PFA insulated cables, available in multiple sizes and configurations including 2, 3, or 4-wire connections. The sensor offers excellent temperature stability, a broad operating range, and customizable terminations suitable for precise industrial temperature measurement applications.
OMEGA RTD21PT100KN252836T Platinum RTD Sensor Specifications:
- Element Type: Thin-Film Platinum RTD
- Accuracy: Class A, % DIN options available
- Operating Temperature Range: Up to 480°C (900°F)
- Response Time: Less Than 75 Milliseconds in flowing water at 3 feet per second
- Cable Length: 1m (40") standard, customizable
- Cable Material: PFA or fiberglass-insulated, with insulation temperature up to 480°C
- Number of Leads: 2, 3, or 4-wire configurations
- Maximum Temperature: 480°C (900°F)
- Dimensions: 2x2 mm or 4x5 mm sensing elements
- Terminations: Standard connectors, bare wires, LUG, OTP, MTP options
- Construction: Wire-wound elements with ±0.012 Ω accuracy at 0°C
Buy the Omega Series RTD Temperature Sensor: RTD21PT100KN252836T
Order the Omega platinum RTD sensor today and ensure precise temperature monitoring in your industrial processes. With fast response times under 75 milliseconds and operating up to 480°C, this high-accuracy sensor with customizable wiring and termination options provides reliable, accurate readings. Its durable construction and flexible cable options make it suitable for demanding environments. Purchase online now to enjoy fast delivery and expert support, ensuring your temperature measurements are always exact and dependable.
Buy Omega RTD21PT100KN252836T now and experience unmatched reliability and performance with fast response times and high accuracy in industrial temperature measurement.
