OMEGA CN7833 Temperature Controller
The CN7833 is a dual-output temperature controller designed for precision monitoring and control of process applications. It features two 4-digit LED displays for local indication of process value and setpoint, supporting various input types including thermocouples, RTDs, DC voltage, and current. Equipped with relay and pulse outputs, RS485 communication, and programmable alarms, it facilitates flexible and reliable automation. Its compact design, operating at 100-240 Vac, makes it suitable for diverse industrial environments requiring accurate temperature regulation and advanced control features.
OMEGA CN7833 Temperature Controller Specifications:
- Inputs: Thermocouple, RTD, DC voltage or DC current

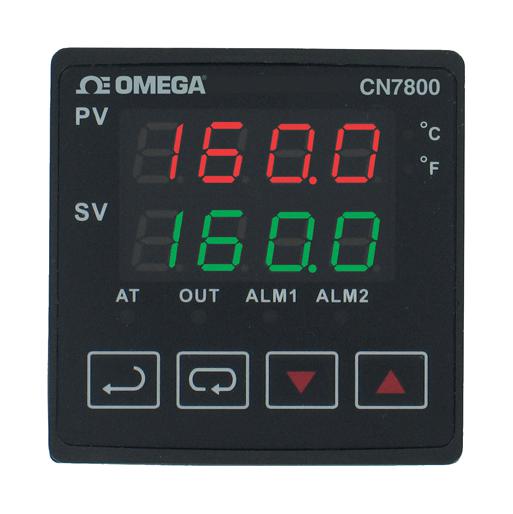

- Display: Two 4-digit, 7 segment LEDs (PV: red, SV: green)
- Resolution: 1.0, 0.1 for thermocouples
- Accuracy: +0.25% span, +1 least significant digit
- Supply Voltage: 100 to 240 Vac, 50/60 Hz
- Power Consumption: 5 VA max
- Operating Temperature: 0 to 50°C (32 to 122°F)
- Control Output Ratings: Relay SPST, 5 A @ 250 Vac resistive; Voltage Pulse 14V, 10 to -20% (max 40 mA); Current 4 to 20 mA
- Alarms: SPST, 3 A @ 250 Vac resistive
- Communication: RS485 MODBUS RTU protocol
- Weight: 114 g (4 oz)
- Panel Cut-Out: 45 mm (1.77 in)
- Maximum Panel Thickness: 9.50 mm (0.375 in)
- Dimensions: Front bezel 48 mm (1.89 in), panel depth 80 mm (3.15 in)
Buy the Buy Omega CN7833 Dual Output Temperature Controller Part Number CN7833 Online
Enhance your industrial automation setup with the Omega CN7833 dual-output controller. Designed for accurate temperature regulation using thermocouples, RTDs, or DC signals, it features dual LED displays, RS485 communication, and programmable alarms. Its flexible relay and pulse outputs support various control schemes. Compact and easy to install, the CN7833 ensures reliable performance in demanding environments. Take advantage of online purchasing for quick delivery and professional support, improving your process efficiency with this advanced control device.
Buy Omega CN7833 dual-output temperature controller now and experience unmatched reliability and precise process control.
