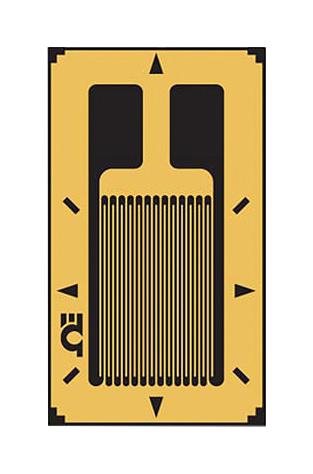

OMEGA SGD10350LY41 Linear Strain Gage
The SGD series precision strain gages are designed for static and dynamic applications, featuring linear patterns etched from constantan foil sealed in a polyimide film carrier. These highly flexible and mechanically robust gages are suitable for stress analysis on steel, aluminum, and other materials, offering various sizes, patterns, and termination styles like ribbon leads or solder pads. They provide accurate strain measurement, with thermal compensation options and easy field trimming, making them ideal for experimental stress analysis and in situ structural monitoring.
OMEGA SGD10350LY41 Linear Strain Gage Specifications:
- Model: SGD-10/350-LY41
- Pattern Type: Linear pattern, stress concentration measurement
- Material: Constantan foil sealed in polyimide film
- Termination: Solder pads or ribbon leads
- Carrier Dimensions: 22 mm length, 10 mm width
- Grid Width: Wide pattern
- Temperature Range: Broad, specific values not provided but suitable for typical stress analysis conditions
- Maximum Bridge Voltages: 350 Vrms (for models 350), 120 Vrms (for models 120)
- Material Compatibility: Steel (ST), Aluminum (AL), Uncompensated (UNC)
- Model Sizes: Common sizes range from 3 mm to 13 mm grid length, various sizes available
- Application: Static and dynamic stress measurement, experimental stress analysis
- Additional Features: Alignment marks, field trimming possible within 0.25 mm, sealed etching for durability
Buy the Omega SGD Series – Reliable Linear Strain Gages for Industrial Applications
Enhance your stress analysis projects with Omega's SGD series linear strain gages, offering exceptional flexibility, durability, and precision. Suitable for static and dynamic applications, these gages are designed with sealed constantan foil patterns in a polyimide carrier, providing excellent mechanical strength and thermal stability. Available in various sizes, grid patterns, and termination styles like ribbon leads and solder pads, they ensure easy installation and field trimming. Perfect for experimental stress analysis, structural monitoring, and materials testing, Omega's strain gages deliver reliable, accurate measurements across a broad temperature range.
Buy Omega SGD series strain gages now and experience unmatched accuracy and durability for static and dynamic stress measurement tasks.
Frequently Asked Questions
Where can I buy OMEGA SGD10350LY41?
You can click on the BUY or RFQ button to purchase SGD10350LY41 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part SGD10350LY41?
You can download the SGD10350LY41 datasheet or visit the OMEGA website for support.
Who is the manufacturer of SGD10350LY41?
OMEGA
