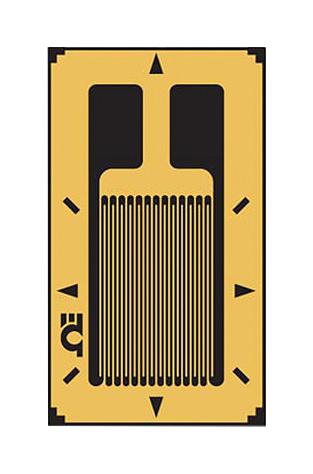

OMEGA SGD3120LY11 Precision Strain Gages
Omega SGD Series precision linear strain gages are designed for static and dynamic applications requiring high accuracy. Made with etching constantan foil sealed in polyimide film, these gages feature small bending radii, broad temperature ranges, and options for ribbon leads or solder pads. Available in various sizes, patterns, and compatible with steel or aluminum, they are suitable for stress analysis in challenging environments, offering flexibility, ruggedness, and precise alignment for reliable measurements.
OMEGA SGD3120LY11 Precision Strain Gages Specifications:
- Gage Pattern: Linear, various sizes from 1.5 mm to 13 mm grid length
- Model No: SGD-3/120-LY11, SGD-6/120-LY11, SGD-10/350-LY11, SGD-13/350-LY11, etc.
- Lead Type: Ribbon Leads or Solder Pads
- Material: Constantan foil sealed in polyimide film
- Temperature Range: Broad, suitable for steel and aluminum applications
- Electrical Resistance: Nominal-resistance strain gages, e.g., 120Ω, 350Ω, 1000Ω
- Dimensions: Pattern length from 1.5 mm to 13 mm, carrier sizes vary, typical lengths 6.5 mm to 13 mm
- Compensation: ST (Steel), AL (Aluminum), UNC (Uncompensated)
- Maximum Bridge Voltage: Varies by model, e.g., 120 Vrms, 350 Vrms, 1000 Vrms
- Sealing: Completely sealed for durability in industrial environments
Buy the Omega SGD Series – Reliable Precision Strain Gages for Industrial Applications
Purchase Omega SGD Series precision strain gages online today for highly accurate static and dynamic stress measurement in industrial settings. These flexible, rugged linear pattern gages feature options for ribbon leads or solder pads, suited for challenging environments and applications in steel, aluminum, or other materials. With various sizes, grid patterns, and high resistance options, they ensure long-term durability and precise alignment. Order now to benefit from fast delivery and expert support for your stress analysis needs.
Get Omega SGD Series precision strain gages today—built for accuracy, durability, and demanding stress measurement tasks.
Frequently Asked Questions
Where can I buy OMEGA SGD3120LY11?
You can click on the BUY or RFQ button to purchase SGD3120LY11 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part SGD3120LY11?
You can download the SGD3120LY11 datasheet or visit the OMEGA website for support.
Who is the manufacturer of SGD3120LY11?
OMEGA
