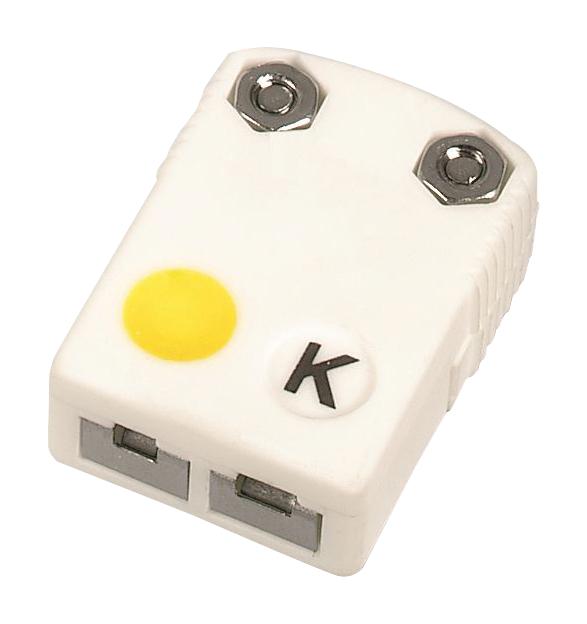

OMEGA SHXRSIF High Temperature Ceramic Connector
The SHX series miniature ceramic connectors are designed for high-temperature applications, rated from -29 to 650°C. Made with a durable ceramic body, these connectors feature a one-piece construction with removable caps, oversized terminal screws for easy wiring, and accept stranded or solid wires up to 20 AWG. Ideal for fine gauge thermocouple wiring in high vacuum furnaces and contamination-sensitive environments, they are dot-coded to ANSI and OMEGA standards, with various options including glazed or unglazed ceramic bodies for versatile industrial applications.
OMEGA SHXRSIF High Temperature Ceramic Connector Specifications:
- Temperature Rating: -29 to 650°C
- Material: Ceramic body with one-piece construction
- Body Type: Glazed or unglazed ceramic
- Wiring Capacity: Accepts stranded or solid wire up to 20 AWG
- Terminal Screws: Oversized, Phillips/Slot combination
- Design: Removable cap with dot-code for ANSI and OMEGA standards
- Type: SHX and USHX rated for high vacuum and contamination-sensitive applications
- Dimensions: 4.93 mm (0.19") wire access hole, actual size miniature connectors
- Application: Thermocouple wiring, high temperature, vacuum furnaces
- Color-Coded Dot: For easy identification and compliance
- Construction: Two-piece ceramic for long life and durability
Buy the Omega Series SHX Ceramic High Temperature Connector: SHXRSIF
Enhance your high-temperature thermocouple wiring setup with Omega Series SHX ceramic connectors. Crafted from durable ceramic, these miniature connectors operate from -29 to 650°C, ensuring consistent performance in high vacuum and contamination-sensitive environments. Featuring a removable cap, oversized terminal screws, and ANSI standards compliance, they're suitable for fine gauge wires up to 20 AWG. Available glazed or unglazed, these long-lasting connectors simplify wiring, promote safety, and improve process accuracy—perfect for industrial furnaces and sophisticated thermal systems.
Buy Omega Series SHXRSIF ceramic high temperature connector now and experience unmatched reliability and precise thermocouple wiring for demanding industrial processes.
Frequently Asked Questions
Where can I buy OMEGA SHXRSIF?
You can click on the BUY or RFQ button to purchase SHXRSIF from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part SHXRSIF?
You can download the SHXRSIF datasheet or visit the OMEGA website for support.
Who is the manufacturer of SHXRSIF?
OMEGA
