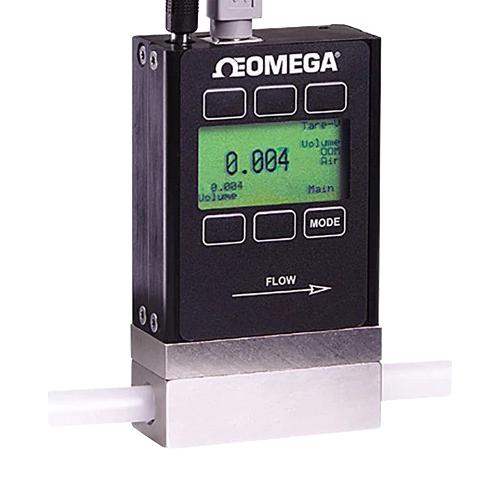

OMEGA FMA1611AV2 Gas Flow Meter
The FMA-1600A series is a highly accurate mass and volumetric flow meter that employs differential pressure within a laminar flow element to precisely measure flow rates in clean gases. It offers a turndown ratio of 200:1, features dual 0-5V analog outputs, and supports RS232 communication with multi-drop capability up to 26 units. This device includes comprehensive calibration for over 130 gases, both pure and mixed, and integrates absolute temperature and pressure sensors to standardize flow readings. It requires no straight pipe runs or warm-up time, making it ideal for various industrial gas applications. The unit includes a 1/2 FNPT connection, a NIST calibration certificate, and comes with a 24 VDC power supply, operator’s manual, and 6-foot cable.
OMEGA FMA1611AV2 Gas Flow Meter Specifications:
- Flow Range: 0.5 SCCM to 3000 SLM, maximum flow rate 250 SLM
- Accuracy: +(0.8% of reading + 0.2% full scale)
- Repeatability: +0.2%
- Turndown Ratio: 200:1
- Response Time: 10 ms, adjustable via RS232
- Output: 0 to 5 V typical, optional 4-20 mA
- Operating Temperature: -10 to 50°C (14 to 122°F)
- Maximum Pressure: 145 psig
- Power Supply: 24 VDC (±10%), 7 to 30 VDC optional
- Wetted Parts: 302/303 stainless steel, FKM, glass, epoxy
- Connection: 1/2 inch FNPT
- Calibration: Over 130 gases, NIST 5-point certificate included
Buy the Omega Series FMA-1600A Gas Flow Meter: FMA1611AV2
Purchase the Omega Series FMA-1600A mass and volumetric flow meter online today. Designed for clean gases, it features laminar flow technology, dual 0-5V outputs, RS232 communication, and extensive calibration for over 130 gases, including pure and mixed. Its 200:1 turndown ratio, rapid response time, and no need for straight pipe runs make it ideal for accurate, efficient gas flow measurement in industrial settings. Comes with power supply, manual, and NIST certification for guaranteed precision.
Order your Omega Series FMA-1600A gas flow meter today and ensure reliable flow measurement for your industrial applications with precise, calibrated performance.
