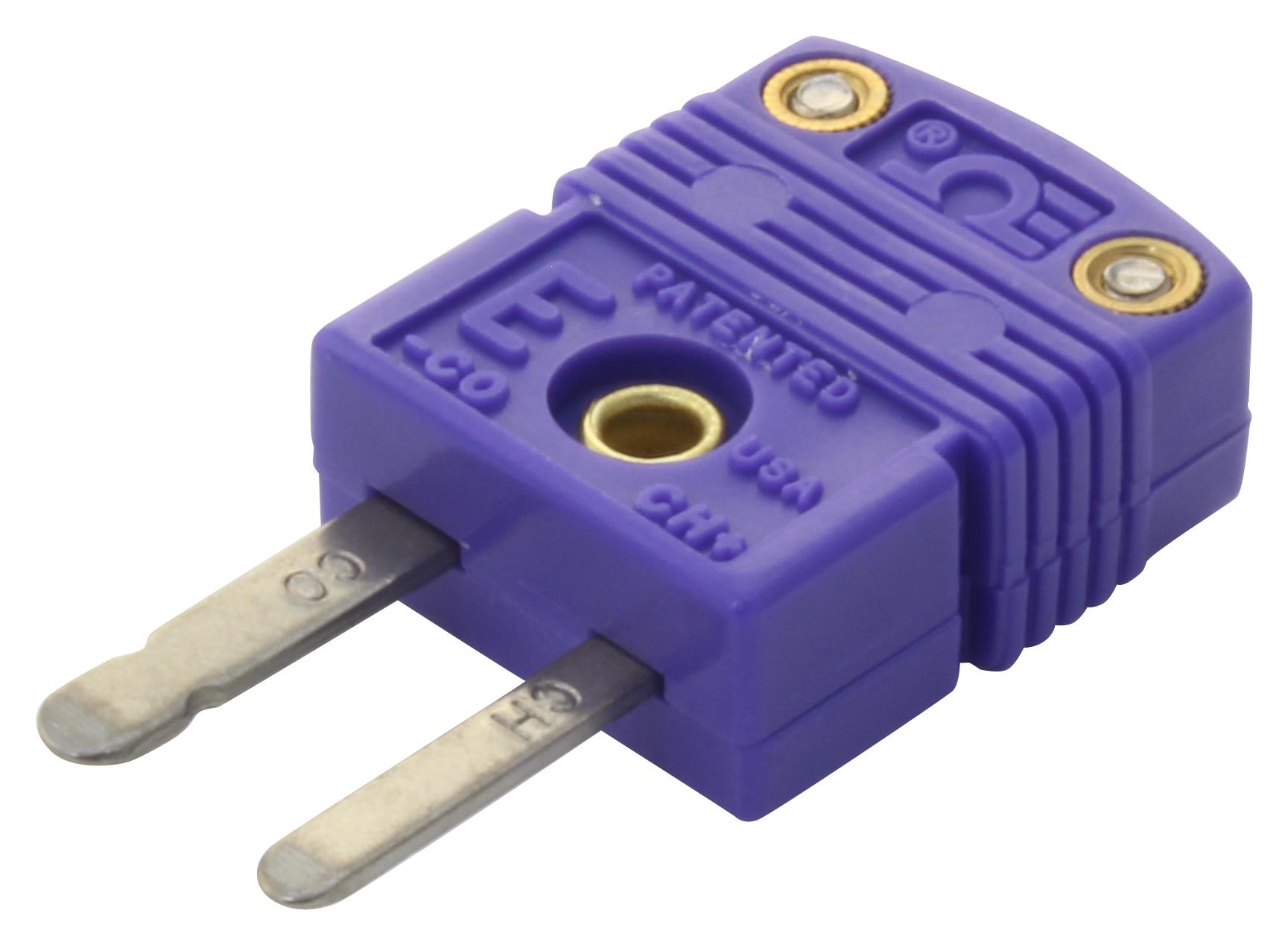

OMEGA SMPWEM Miniature Connector
The SMPWEM miniature connector combines robust construction with high temperature tolerance, suitable for sensor and thermocouple applications. Made from glass-filled nylon (SMPW) or liquid crystal polymer (HMPW), it offers service temperatures from -29°C to 180°C for SMPW and up to 260°C for HMPW. The connector features color-coding, captive screws, quick connect washers, and an internal wire divider for organized wiring. It accepts stranded or solid wires up to 20 AWG, making it ideal for industrial and electronic precision tasks, with corrosion-resistant and environmentally friendly materials ensuring durability.
OMEGA SMPWEM Miniature Connector Specifications:
- Material: Glass-filled nylon (SMPW), Liquid crystal polymer (HMPW)
- Service Temperature: -29°C to 180°C (SMPW), up to 260°C (HMPW)
- Wire Range: Up to 20 AWG (0.020 to 0.125 inch diameter probes)
- Color Coding: ANSI and IEC compliant
- Construction: Heavy-duty with captive cover screws, internal wire divider
- Crimp Style: Brass and stainless steel bushing
- Write-on Windows: Removable/reversible, order WCP-S
- Dimensions: Approximate 7.16 mm (0.28 inch) wire hole, additional size details available
- Temperature Range: -29°C to 180°C for SMPW, withstands minor discoloration between 150°C and 180°C
- Electrical properties: Not affected by minor discoloration
- Additional Features: Quick connect contact washers, cable clamp with ferrite core for EMI protection, optional color-coded models
Buy the Omega Series SMPW Miniature Connector: SMPWEM
Order the Omega SMPWEM miniature connector online today and benefit from high-quality, durable construction suitable for temperatures up to 180°C. Its color-coded design, captive screws, and internal wire divider offer organized wiring solutions ideal for industrial, electronic, and sensor applications. Compatible with stranded or solid wires up to 20 AWG, it ensures a secure connection. With a removable write-on window, quick connect washers, and EMI protection clamp options, this connector provides flexibility, durability, and professional-grade performance—purchase now for reliable wiring solutions.
Buy Omega SMPWEM miniature high-temperature connector now and experience unmatched reliability and performance for your electronic and sensor applications.
