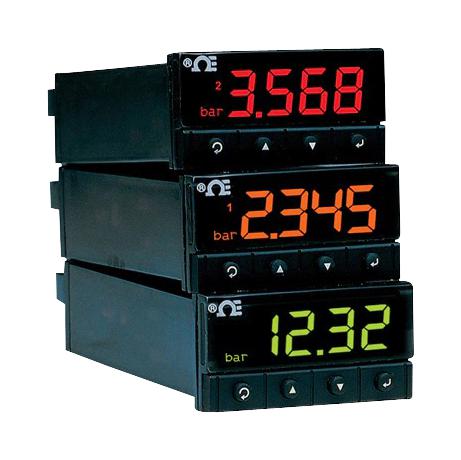

OMEGA DPIS8CC24 Digital Panel Meter
The DPIS8CC24 is a versatile DIN-sized digital panel meter from the Omega iSeries, designed for temperature, process, and strain measurement applications. It features a programmable color display with integrated Ethernet, RS232, RS485 communication options, and supports various sensor inputs including thermocouples, RTDs, voltage, and current signals. Its high accuracy of 0.5°C and 0.03% reading, combined with dual slope A/D conversion and digital filtering, ensures precise data acquisition. Suitable for industrial environments, it offers excellent stability, multiple input types, and embedded internet connectivity for remote monitoring and control.
OMEGA DPIS8CC24 Digital Panel Meter Specifications:
- Accuracy: ±0.5°C, 0.03% reading
- Temperature Stability: RTD 0.04°C/°C, Thermocouple 0.05°C/°C at 25°C
- Input Types: Thermocouple, RTD, analog voltage, current
- Thermocouples: J, K, T, E, R, S, B, C, N, L
- RTD Input: 100/500/1000 ohm, 2-, 3-, 4-wire configurations
- Voltage Input: 0-100 mV, 0-1 V, 0-10 V DC
- Current Input: 0-20 mA
- Display: 4-digit 9-segment LED, programmable color changes
- Communication: Ethernet (TCP/IP), RS232, RS485, RS422
- Power Supply: 90-240 Vac or 12-36 Vdc (low voltage option)
- Dimensions (iSeries models): 48 H x 96 W x 127 D mm for i8; 48 H x 48 W x 127 D mm for i16; 25.4 H x 48 W x 127 D mm for i32
- Panel Cutouts: 45 x 92 mm for i8; 45 mm square for i16; 22.5 x 45 mm for i32
- Environmental Conditions: 0-55°C, 90% RH non-condensing
- Certifications: UL, C-UL, CE
Buy the Omega DPIS8CC24 – Reliable Temperature and Process Meter for Industrial Applications
Purchase your Omega DPIS8CC24 digital panel meter online today to benefit from precise temperature, process, and strain measurements. Equipped with a programmable color display, Ethernet, RS232, and RS485 connectivity options, this DIN-sized instrument provides high accuracy of 0.5°C and features dual slope A/D conversion with programmable digital filtering. Its compatibility with thermocouples, RTDs, voltage, and current signals makes it ideal for industrial environments. With a compact design, reliable performance, and certifications including UL and CE, buy now and ensure your project meets the highest standards of precision and reliability.
Order your Omega DPIS8CC24 digital panel meter today and enhance your industrial measurement accuracy with high-resolution color display and versatile connectivity.
Frequently Asked Questions
Where can I buy OMEGA DPIS8CC24?
You can click on the BUY or RFQ button to purchase DPIS8CC24 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DPIS8CC24?
You can download the DPIS8CC24 datasheet or visit the OMEGA website for support.
Who is the manufacturer of DPIS8CC24?
OMEGA
