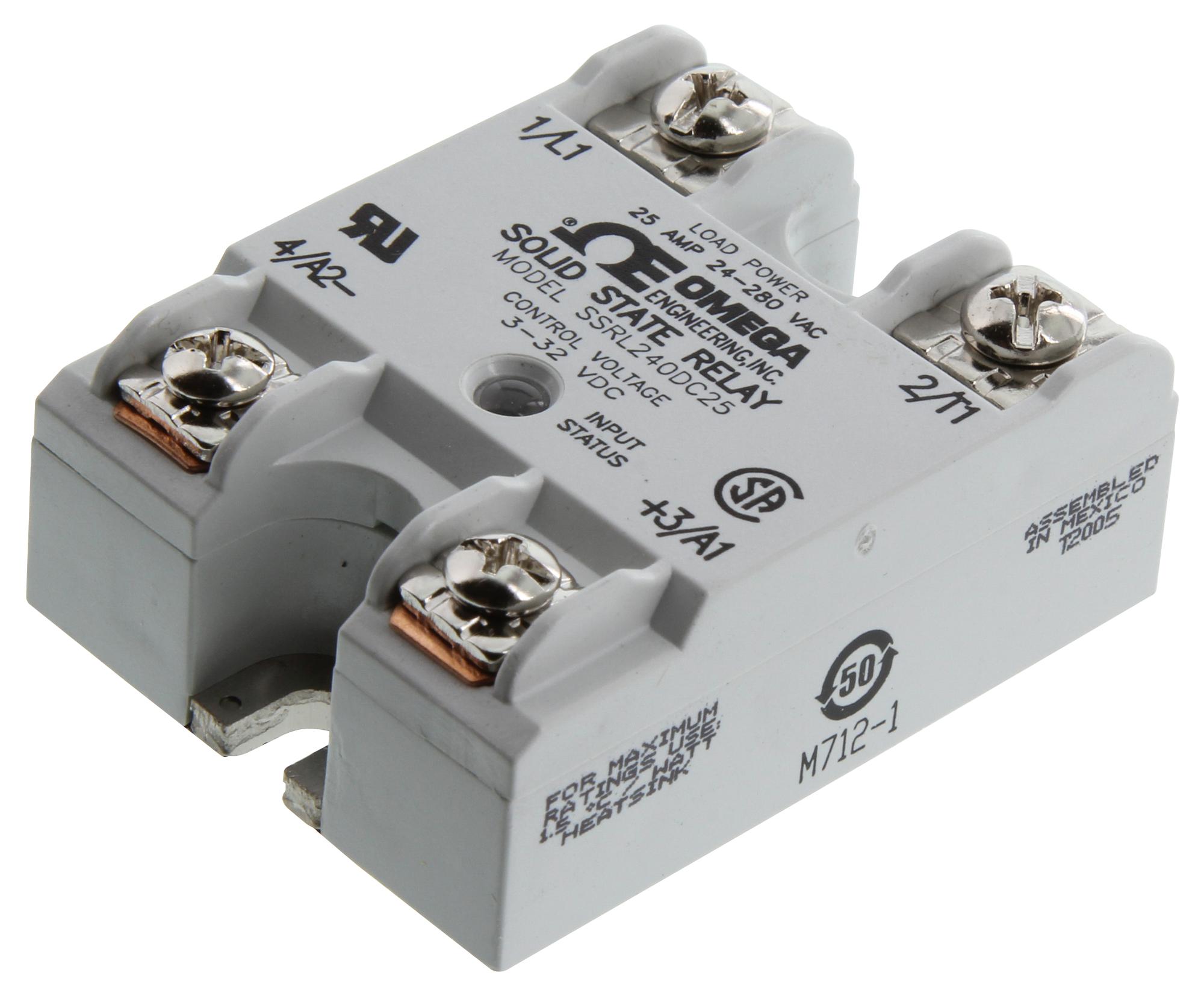

OMEGA SSRL240DC25 Solid State Relay
The SSRL240DC25 is a high-reliability, solid-state relay designed for controlling resistive loads with DC control signals. Featuring a DC control voltage range of 3 to 32 Vde, it can switch up to 25A current at a maximum voltage of 280 Vac. Built with twin SCR technology, it provides a long cycle life of millions of operations and is ideal for applications requiring fast switching, such as temperature controllers and industrial automation systems. The relay includes an LED indicator for status and must be mounted on a finned heat sink to dissipate heat effectively. Its electrical ratings include a maximum surge current of 750A and an off-state leakage current of 1V across the output when open.
OMEGA SSRL240DC25 Solid State Relay Specifications:
- Control Signal: 3 to 32 Vde
- Max On-State Current: 25A
- Maximum Voltage: 280 Vac
- Maximum Surge Current: 750A
- Leakage Current: 1V in open state
- Off-State Current: 0.25 mA
- Isolation: 4000 Vrms input to output
- Max Peak Switching Voltage: 800V
- Thermal Resistance: 2.4°C/W FHS-2 heat sink
- Mounting: Finned heat sink with tapped mounting holes
- Control Type: DC
- Operating Temperature: -20 to 80°C
- Dimensions: 5.50 inches length, 5.00 inches width, 1.81 inches height
- Construction: Twin SCR solid state relay, no moving parts
- Application: Industrial heating, temperature controllers, automation systems
Buy the Buy Omega SSRL240DC25 Online
Order the Omega SSRL240DC25 online today to benefit from its long cycle life, high overload capacity, and reliable performance for industrial resistive load switching. Designed with twin SCR technology and featuring a control voltage of 3-32 Vde, this relay ensures safe, efficient operation on various automation systems. Its compact form and heat sink compatibility facilitate optimal thermal management. Whether for temperature control, industrial heaters, or automation applications, purchasing online guarantees fast delivery, expert support, and genuine product authenticity to meet your technical requirements.
Buy Omega SSRL240DC25 now and experience unmatched reliability and high performance in industrial automation and resistive load control.
Frequently Asked Questions
Where can I buy OMEGA SSRL240DC25?
You can click on the BUY or RFQ button to purchase SSRL240DC25 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part SSRL240DC25?
You can download the SSRL240DC25 datasheet or visit the OMEGA website for support.
Who is the manufacturer of SSRL240DC25?
OMEGA
