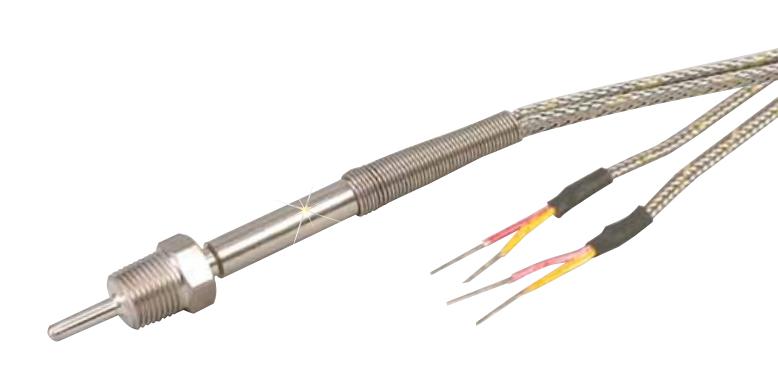

OMEGA TCK18NPTU72 Thermocouple Probe
The rugged thermocouple probe features a stainless steel design with strain relief spring, suitable for vessel applications, pressurized chambers, and pipelines. It supports single or dual elements, with options for grounded, ungrounded, or exposed junctions. The probe withstands pressures up to 2500 psi and temperatures to 650°C (1200°F). Its stainless steel braid over fiberglass leads resist abrasion and cuts, ensuring durability and flexibility. Custom designs, different NPT threads, tip diameters, and flush tips are available, making it versatile for various industrial temperature monitoring applications.
OMEGA TCK18NPTU72 Thermocouple Probe Specifications:
- Material: Stainless steel with fiberglass insulated leads
- Lead Wire: 4 20 AWG, stranded, with stainless steel overbraid
- Maximum Pressure: 2500 psi at ambient temperatures
- Temperature Range: To 650°C (1200°F) for probe, to 480°C (900°F) for cable
- Junction Types: Grounded, ungrounded, or exposed
- Thread Options: NPT including 1/8, 1/4 NPT, custom threads available
- Probe Length: 72 inches (custom lengths available)
- Construction: Strain relief spring, resistance to abrasion and cuts
- Design: Exposed junction for air temperature measurement, suitable for gas streams
- Custom Features: Different tip diameters, tip lengths, flush options available
Buy the Omega Series Thermocouple Probe: TCK18NPTU72
Purchase the Omega Series thermocouple TCK18NPTU72 online today and ensure high-precision temperature monitoring in your industrial setup. This rugged stainless steel design with strain relief spring offers excellent durability, resistance to abrasion, and excellent thermal performance up to 650°C. Its versatile options for junction types and NPT threads enable seamless integration into vessel, pipeline, or pressurized chamber applications. With customizable features like tip length and flush design, this probe is ideal for demanding environments requiring reliable, accurate temperature measurements with easy online ordering and fast delivery.
Order your Omega Series thermocouple probe TCK18NPTU72 today and equip your industrial processes with a durable, customizable temperature sensing solution.
Frequently Asked Questions
Where can I buy OMEGA TCK18NPTU72?
You can click on the BUY or RFQ button to purchase TCK18NPTU72 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part TCK18NPTU72?
You can download the TCK18NPTU72 datasheet or visit the OMEGA website for support.
Who is the manufacturer of TCK18NPTU72?
OMEGA
