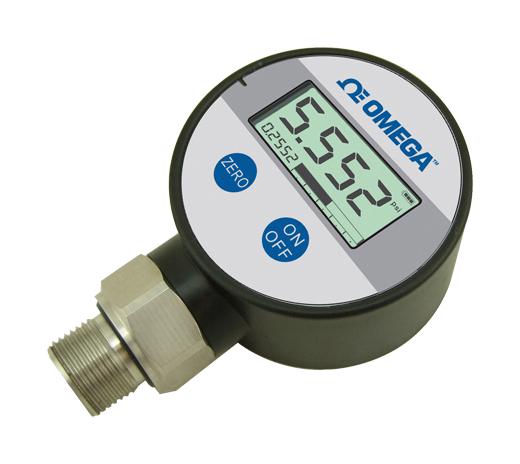

OMEGA DPG108015CG Digital Pressure Gauge
The DPG108 is a battery-powered digital pressure gauge designed for quick and easy on-site installation. Featuring a high-precision piezo-resistive sensor and a low-temperature drift amplifier, it provides accurate readings. The device displays pressure in five engineering units, automatically records maximum values, and offers adjustable auto-shutoff and backlit LCD display. Suitable for use with gases and liquids compatible with stainless steel, its rugged IP65/IP68 casing ensures durability in industrial environments. Its compact, reliable design makes it ideal for hydropower, water, petroleum, chemical, hydraulic, and mechanical industries. Power-efficient with a sampling rate of 4 times per second, it combines precision and usability.
OMEGA DPG108015CG Digital Pressure Gauge Specifications:
- Measuring Range: -0.1-0-100MPa
- Engineering Units: psi, bar, kPa, MPa, kg / cm
- Overload Pressure: 150%~200%
- Pressure Type: G/AID
- Stability: <0.1% FS per year
- Power Supply: unspecified
- Display: 4 Digits
- Accuracy Range: 20.25% for gauge pressure, 40.5% FS for all others including absolute, compound gauge, and vacuum
- IP Rating: IP65 / IP68 with Silicone case
- Sampling Rate: 4 times per second
- Operating Temp: -20°C to 70°C
- Relative Humidity: 290%
- Thread Size: V4.NPT
- Thread Material: SS316
Buy the Omega Series DPG108 Digital Pressure Gauge: 015CG
Order the Omega DPG108 digital pressure gauge online today to enjoy fast delivery and exceptional accuracy. This durable, battery-powered device features a high-resolution LCD, multiple units for versatile measurement, and automatic max-pressure recording. Its IP65/IP68 rated casing provides protection in harsh conditions. Whether used in water, petroleum, or chemical industries, this gauge offers dependable performance with extended battery life—over 2,000 hours—making it ideal for demanding industrial applications. Purchase now for reliable, precise pressure measurements.
Buy Omega DPG108 pressure gauge now and experience unmatched reliability and high-precision pressure measurement in demanding industrial environments.
