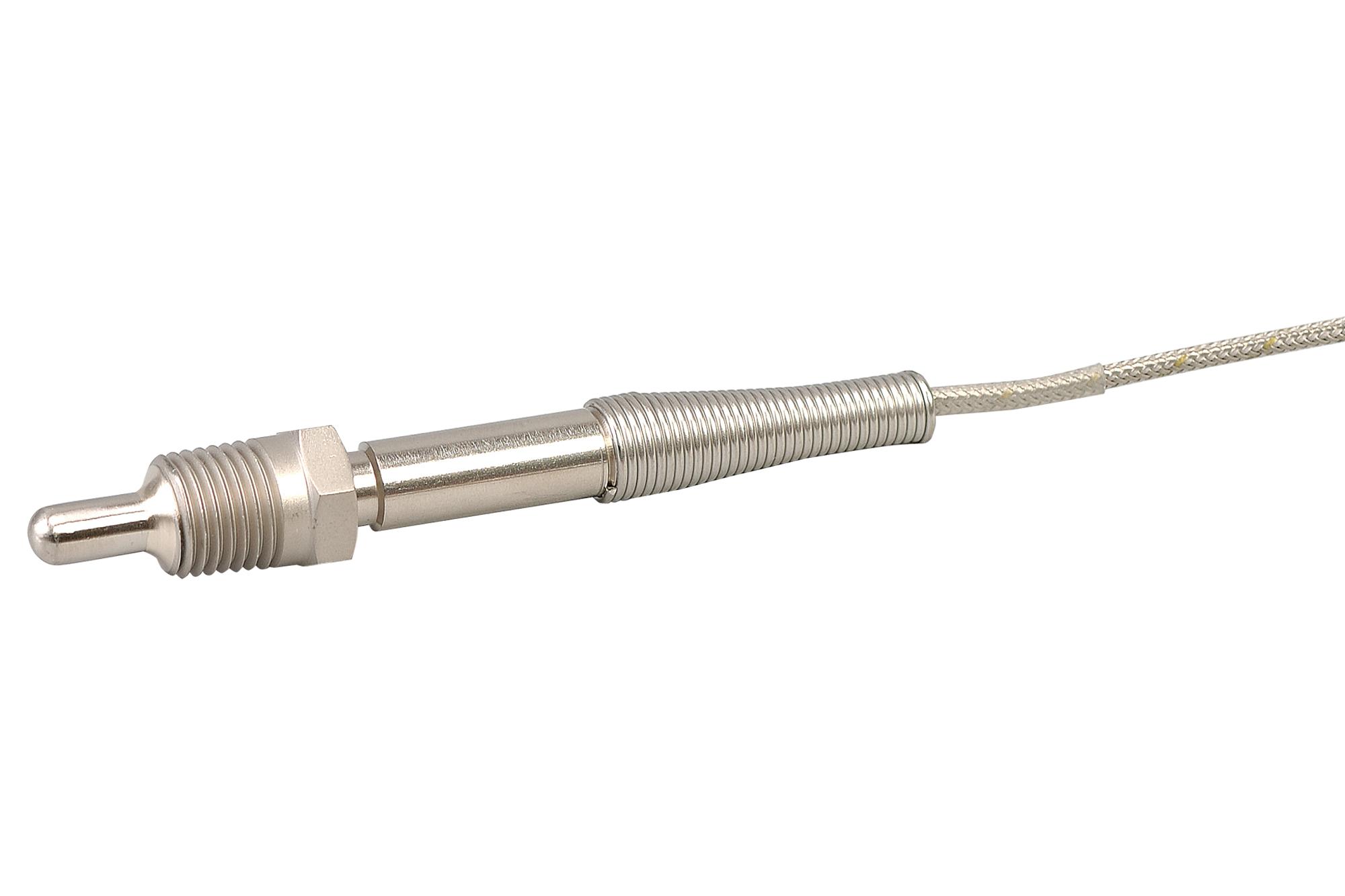

OMEGA TCTNPTG72 Stainless Steel Thermocouple Probe
The Rugged Pipe Plug Thermocouple Probe provides high durability and precise temperature measurement in harsh environments, featuring stainless steel construction, strain relief, and optional configurations. Suitable for vessel, pipeline, and pressurized chamber applications, it supports multiple thermocouple types like J, K, T, and E. With temperature ratings up to 650°C and a transition joint temperature of 480°C, it offers both grounded and ungrounded junctions, with optional custom threads and flush tips, ensuring versatile and reliable performance across demanding industrial settings.
OMEGA TCTNPTG72 Stainless Steel Thermocouple Probe Specifications:
- Material: Stainless Steel 304
- Lead Wire: 4 20 AWG, stranded; 24 AWG, stranded (overbraid resistant to abrasion and cuts)
- Temperature Range: to 650°C (1200°F), transition joint to 480°C (900°F)
- Mounting Thread: 1/8 NPT, 1/4 NPT, or custom
- Junction Type: Grounded, Ungrounded, Exposed
- Design: Strain relief spring, stainless steel overbraid, exposed junction
- Pressure Resistance: Up to 2500 psi at ambient temperature
- Probe Diameter: 0.38 inches (approx. 9.7 mm)
- Finish: Rugged, corrosion-resistant stainless steel construction
- Optional Features: Dual elements, flush tip, custom thread sizes, custom tip lengths
Buy the Buy Omega Thermocouple Probe Part Number TCTNPTG72 Online
Order the Omega Thermocouple Probe TCTNPTG72 online today and ensure accurate temperature monitoring in vessel, pipeline, or pressurized chambers. Designed with rugged stainless steel construction and strain relief for durability, it supports multiple thermocouple types like J, K, T, and E, making it suitable for harsh industrial applications. With high-temperature ratings up to 650°C and a transition joint of 480°C, this probe guarantees reliable performance. Custom options like threads, tips, and junction types are available to meet specific needs, making it the perfect choice for demanding environments.
Buy Omega TCTNPTG72 now and experience unmatched reliability and high-precision temperature measurement in demanding industrial environments.
