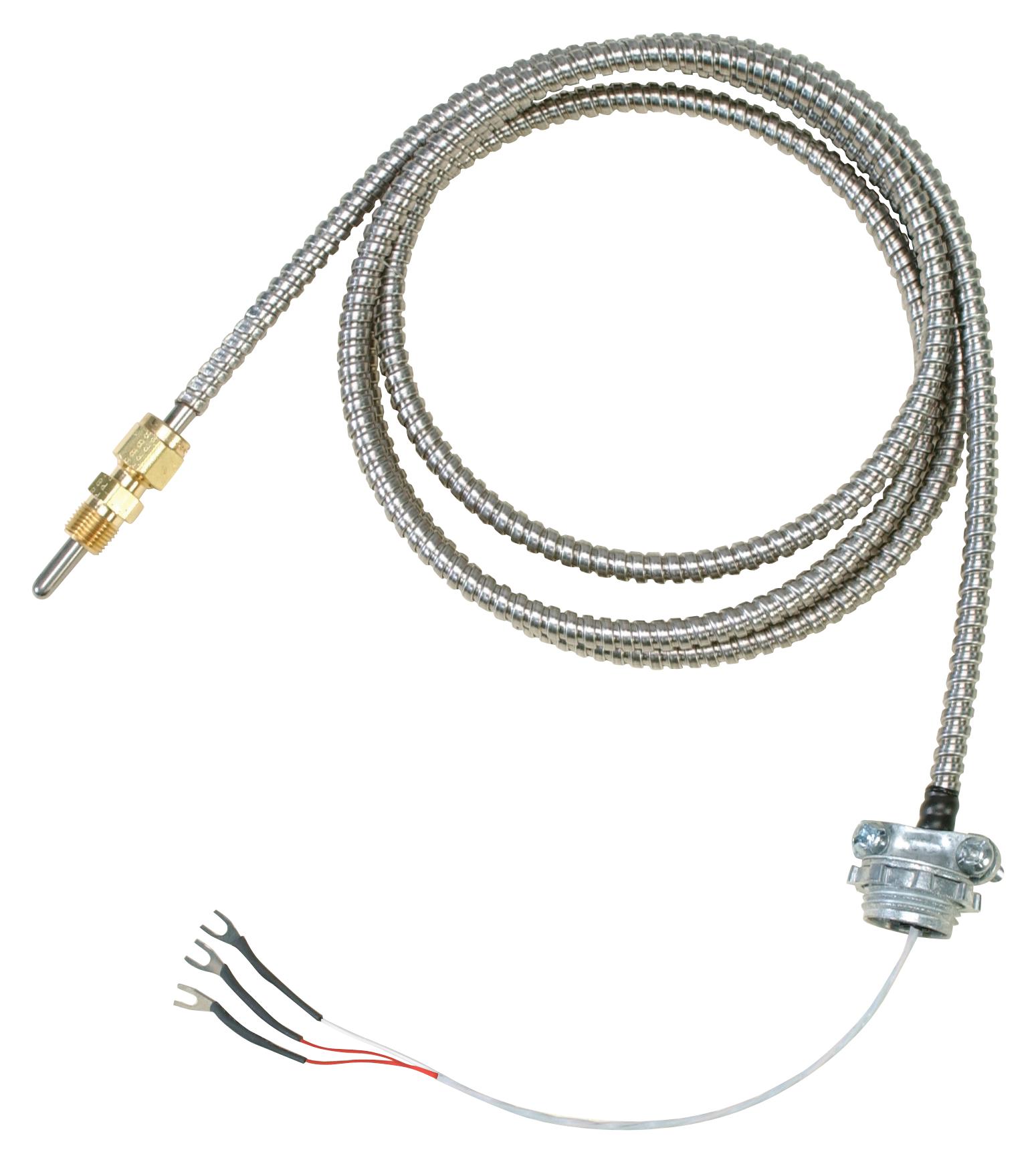

OMEGA CFTF000RTD2601 Industrial RTD Sensor
This RTD temperature sensor features a 3/16 inch diameter stainless steel probe with a brass 1/8-inch NPT compression fitting, designed for rugged environments such as plastic processing equipment. It contains a precision 100-ohm, Class B DIN platinum thin film element in a three-wire configuration, suitable for accurate temperature measurement across a standard range of -50°C to 260°C. The assembly is straight, with termination options including spade lugs and heavy-duty connectors for reliable electrical connections.
OMEGA CFTF000RTD2601 Industrial RTD Sensor Specifications:
- Probe Diameter: 3/16 inch
- Sheath Material: 304 Stainless Steel
- Fitting Type: Brass 1/8-inch NPT compression fitting
- Cable Length: 1.5 meters (60 inches) standard
- Temperature Range: -50°C to 260°C (500°F optional)
- Sensor Element: 100-ohm, Class B DIN platinum thin film
- Wire Configuration: Three-wire
- Termination Options: Spade lugs or OTP connector
- Dimensions: 'A' Dim 50 mm (2 inches) or 100 mm (4 inches) based on model, bend option available
- Compression Fitting Standard: NPT brass
- Cable Construction: 3-wire, color-coded Red/White
- Armor: 4 oz, jacketed with 4 ox armor
- Certifications: Suitable for industrial environments
Buy the Omega CFTF000RTD2601 – Reliable RTD for Industrial Applications
Shop the reliable Omega industrial RTD sensor online today. Featuring a stainless steel probe, brass compression fitting, and precise platinum element, it offers exceptional accuracy and durability. Perfect for plastic processing and rugged environments, it measures temperatures from -50°C to 260°C. With various termination options including spade lugs and OTP connectors, this sensor ensures dependable electrical connections. The 1.5 meter cable, three-wire configuration, and straight assembly make installation straightforward. Trust Omega for high-performance temperature sensing solutions in your industrial applications.
Get Omega CFTF000RTD2601 today—built for precision, durability, and accurate temperature measurement in demanding industrial environments.
Frequently Asked Questions
Where can I buy OMEGA CFTF000RTD2601?
You can click on the BUY or RFQ button to purchase CFTF000RTD2601 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part CFTF000RTD2601?
You can download the CFTF000RTD2601 datasheet or visit the OMEGA website for support.
Who is the manufacturer of CFTF000RTD2601?
OMEGA
