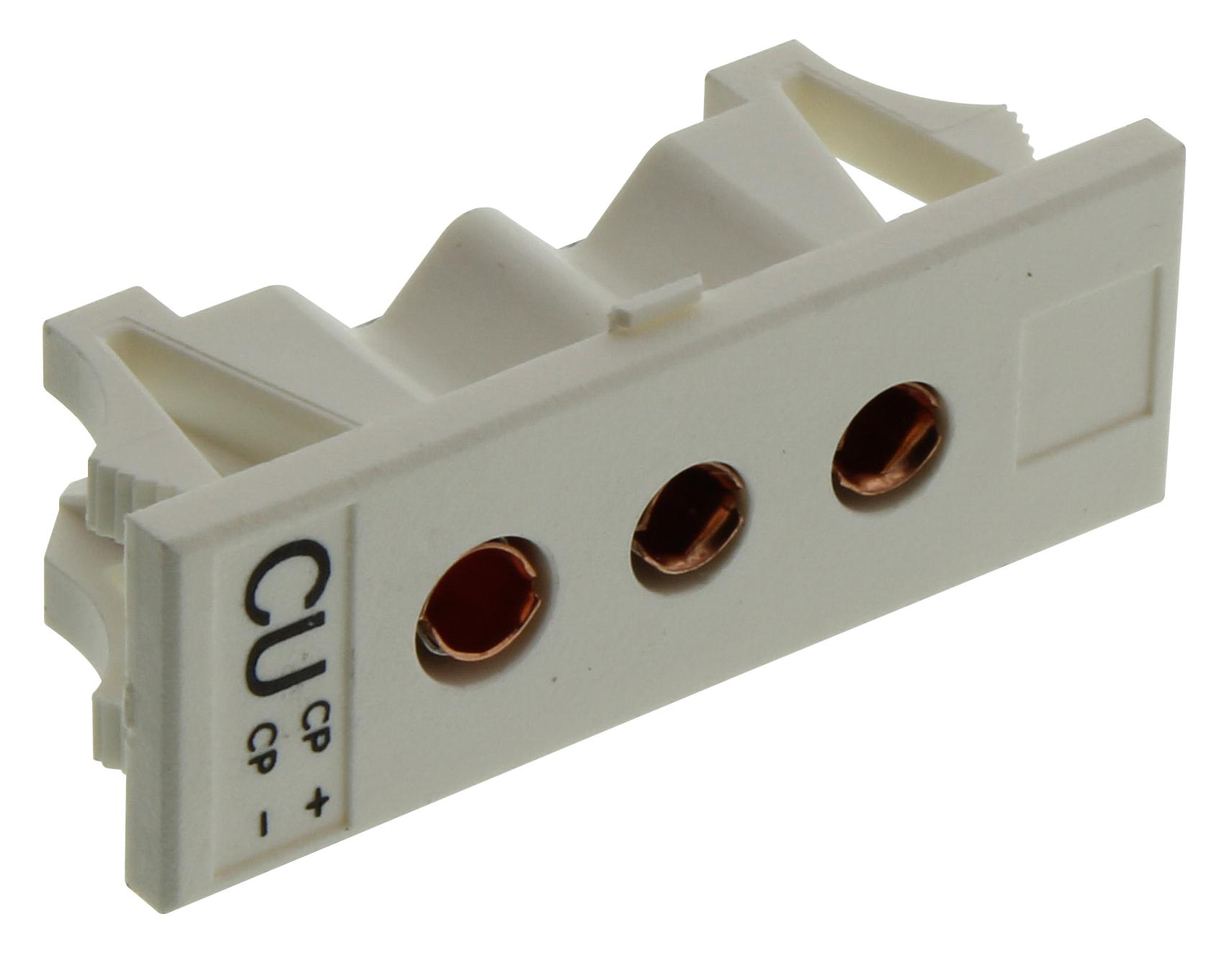

OMEGA TPJUF Panel Jack
The product is a 3-prong snap-in panel jack designed for thermocouples and RTDs, featuring color-coded ANSI calibrations J, K, T, and E as well as uncompensated types for RTDs and thermistors. Made from glass-filled nylon rated from -29 to 180°C (−20 to 356°F), these jacks accept stranded or solid wire up to 14 AWG. They enable quick installation without additional hardware, include spring clips for secure mounting, and offer compatibility with male pins. The design ensures easy maintenance and reliable electrical connections suitable for industrial temperature measurement applications.
OMEGA TPJUF Panel Jack Specifications:
- Material: Glass-filled nylon rated from -29 to 180°C (-20 to 356°F)
- Accepts Wire: Stranded or solid wire up to 14 AWG
- Mounting: Snap-in panel mount with interlocking clips
- Compatibility: Accepts OTP-style 3-prong connectors, ANSI calibrations J, K, T, E, and U
- Dimensions: 55.62 mm (2.19 inches) overall length, panel cutout 16.12 mm (0.635 inches)
- Temperature Resistance: -29°C to 180°C
- Color Coding: Blue (K), Black (J), Purple (E), White (U)
- Construction: Glass-filled nylon body, no additional mounting hardware required
- Electrical Properties: Stable across temperature ranges, minor discoloration at high temps but no impact on conductivity
- Construction Features: Reusable, color-coded, numbered, interlocking, small tab and notch for alignment
Buy the Thermocouple RTD Panel Jack – Reliable Temperature Measurement Connectors for Industrial Applications
Order the panel jack online today for efficient and reliable temperature measurement connections in industrial environments. Designed for quick snap-in installation and compatibile with thermocouples and RTDs, this high-quality connector features color-coding for easy identification, accepts up to 14 AWG wire, and is made from durable nylon rated for temperatures from -29°C to 180°C. Its interlocking clips and compatibility with male pins simplify setup and maintenance, making it ideal for automation systems, control panels, and instrumentation setups requiring precise temperature sensing with reliable electrical connections. Purchase now for enhanced performance and durability.
Get TPJUF today—built for precision with quick snap-in installation and durable material for industrial temperature measurement needs.
