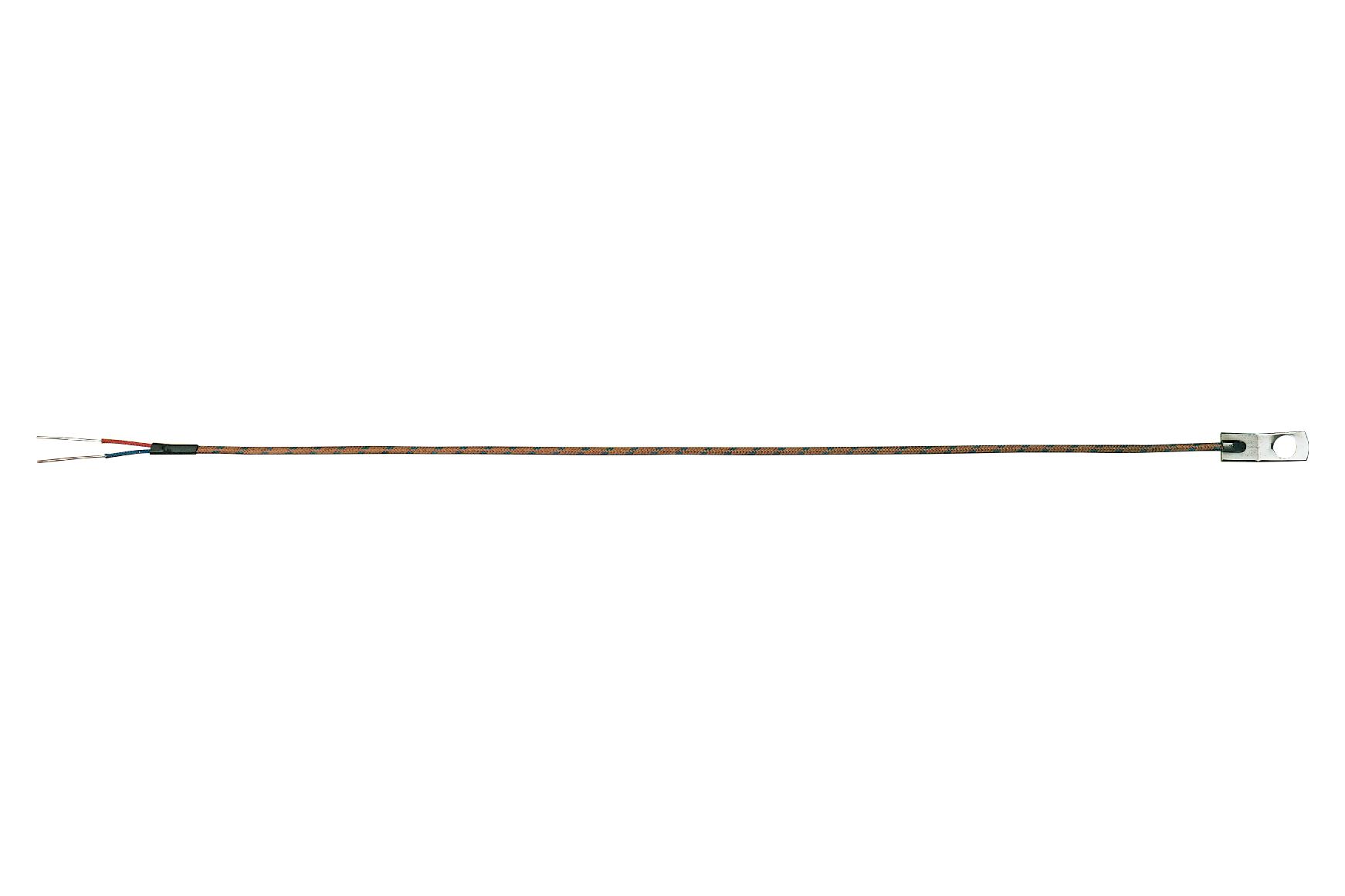

OMEGA WTK624 Surface Temperature Sensor
The WT Series washer thermocouple assemblies are designed for precise surface temperature measurement and easy mounting on various surfaces. Made from 20 AWG solid wire with grounded junctions, these assemblies feature stripped PFA insulation rated to 260°C (500°F) and glass insulation rated to 480°C (900°F). Available in multiple screw sizes and lengths, they support Type J, K, T, or E thermocouples, with options for custom lengths, insulation, and connector types. Rugged construction ensures durability in industrial environments, suitable for applications requiring accurate thermal monitoring.
OMEGA WTK624 Surface Temperature Sensor Specifications:
- Thermocouple Types: J, K, T, E
- Wire Gauge: 20 AWG solid wire
- Insulation: PFA rated to 260°C (500°F), glass rated to 480°C (900°F)
- Screw Sizes: #6, #8, #10, M6 with respective dimensions
- Dimensions: #6 and #8 screws - 6.5 mm W x 22 mm L; #10 and M6 - 9 mm W x 25 mm L
- Lead Lengths: Standard 12, 24, 36, 60 inches, with custom options
- Finish: Grounded junction, stripped leads, rugged design
- Mounting: Easily mounts to various surfaces
- Connection Options: Standard, male and female connectors, custom terminations available
Buy the Omega Series WT Thermocouple Assemblies: WTK624
Order Omega WT Series washer thermocouple assemblies online for reliable, accurate temperature measurements in industrial applications. Crafted with rugged design and customizable options, these assemblies feature high-quality insulation, grounded junctions, and various sizes to suit your specific needs. With quick mounting and durable construction, they are ideal for monitoring surface temperatures in manufacturing, process control, and HVAC systems. Purchase now to ensure precise thermal monitoring and long-lasting performance in demanding environments.
Get Omega WT thermocouple assemblies today—built for durability and precise temperature sensing in industrial environments.
Frequently Asked Questions
Where can I buy OMEGA WTK624?
You can click on the BUY or RFQ button to purchase WTK624 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part WTK624?
You can download the WTK624 datasheet or visit the OMEGA website for support.
Who is the manufacturer of WTK624?
OMEGA
