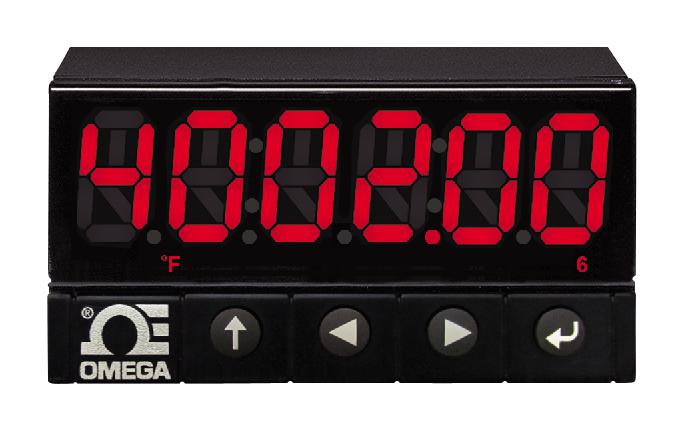

OMEGA CN8DPT225006C24EIP Process Controller
The CN8DPT225006C24EIP is a compact, high-precision process controller designed for industrial applications. It features universal inputs including thermocouples, RTDs, thermistors, and analog voltage/current signals, offering versatile measurement options. The device provides programmable outputs such as relays, DC pulse, and analog signals, with embedded Ethernet, USB, and optional serial interfaces for seamless communication. Its bright, multicolor display ensures clear visual verification, while advanced autotuning and fuzzy logic adaptive control optimize process stability. Suitable for automation, manufacturing, and laboratory environments, it combines robust functionality with user-friendly setup and configuration.
OMEGA CN8DPT225006C24EIP Process Controller Specifications:
- Input Types: Thermocouple, RTD, thermistor, analog voltage/current, strain
- Thermocouple Types: K, J, T, E, R, S, B, C, N
- RTD: 100/500/1000 Q, 2-, 3-, or 4-wire, curves 385, 392, 3916
- Thermistor: 2252 Q, 5K Q, 10K Q
- Voltage Input: -100 to 100 mV, -1 to 1 V, -10 to 10 V
- Current Input: 4 to 20 mA, scalable 0-24 mA
- Display: 4-digit, 9-segment LED with wide viewing angle
- Outputs: 2 to 6 programmable outputs including relays, DC pulse, and analog signals
- Communication: USB, optional Ethernet, RS232/RS485 with MODBUS®
- Power Supply: 90-240 Vac or 12-36 Vdc low voltage option
- Protection: NEMA 4X (IP65) front bezel, UL, CE, cUL certified
- Dimensions: 48 x 48 x 127 mm (1.89 x 1.89 x 5 inches)
- Environmental Conditions: 0 to 50°C, 90% RH, non-condensing
- Certification: UL, cUL, CE, IEC recognized power options
Buy the Platinum Series Process Controller: CN8DPT225006C24EIP
Enhance your industrial automation setup with the Platinum Series process controller, CN8DPT225006C24EIP. This versatile device offers universal thermocouple, RTD, thermistor, voltage, and current inputs, facilitating precise measurement in manufacturing, research, and automation. Its programmable outputs, including relays, DC pulse, and analog signals, support various control schemes. Equipped with Ethernet, USB, and serial interfaces, it allows seamless data transfer and remote management. Its robust construction complies with UL, CE, and cUL certifications, ensuring safety and reliability. Easy to configure via firmware, this controller optimizes process stability and enhances operational efficiency, making it the ideal choice for demanding environments.
Buy Platinum CN8DPT225006C24EIP now and experience unmatched reliability and high-accuracy process control for demanding industrial applications.
