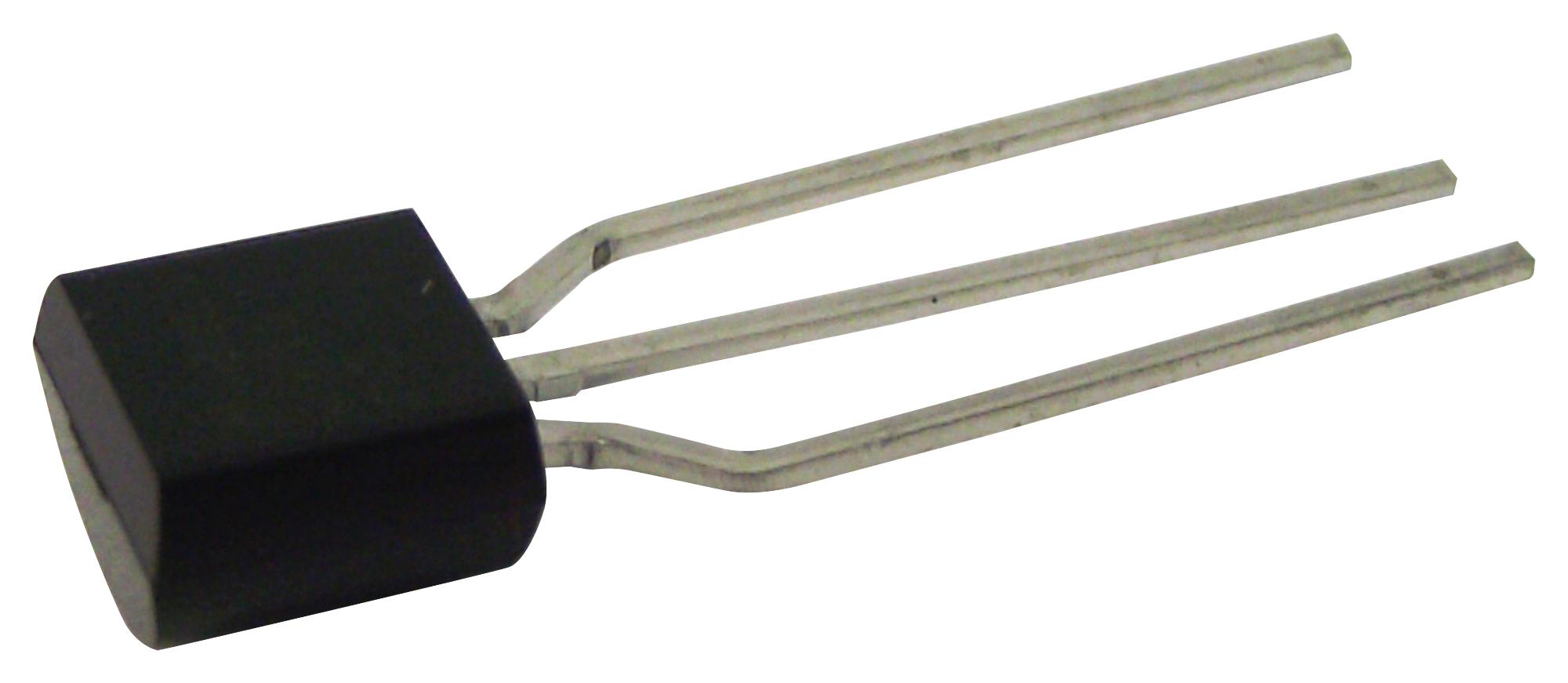

ONSEMI 2N3904TA NPN General-Purpose Amplifier
The ONSEMI 2N3904TA is a general-purpose NPN bipolar junction transistor (BJT) designed for amplifier and switching applications. It exhibits a useful dynamic range, capable of operating as a switch up to 100mA and as an amplifier up to 100MHz. Its versatility makes it suitable for various industrial applications including audio amplification, voltage regulators, and general-purpose switching circuits. The device is characterized by its ease of use and reliable performance, making it a popular choice for both discrete and integrated circuit designs.
ONSEMI 2N3904TA NPN General-Purpose Amplifier Specifications:
- Collector-Emitter Voltage (VCEO): 40 V
- Collector-Base Voltage (VCBO): 60 V
- Emitter-Base Voltage (VEBO): 6.0 V
- Collector Current - Continuous (IC): 200 mA
- Operating and Storage Junction Temperature Range (TJ, TSTG): -55 to 150 °C
- Total Device Dissipation (PD): 625 mW
- Thermal Resistance, Junction to Case (RθJC): 83.3 °C/W
- Thermal Resistance, Junction to Ambient (RθJA): 200 °C/W
- DC Current Gain (hFE): 40-300
- Collector-Emitter Saturation Voltage (VCE(sat)): ≤ 0.3 V
- Base-Emitter Saturation Voltage (VBE(sat)): 0.65 to 0.85 V
- Current Gain - Bandwidth Product (fT): ≥ 300 MHz
- Output Capacitance (Cobo): ≤ 4.0 pF
- Input Capacitance (Cibo): ≤ 8.0 pF
- Noise Figure (NF): ≤ 5.0 dB
- Delay Time (td): ≤ 35 ns
- Rise Time (tr): ≤ 35 ns
- Storage Time (ts): ≤ 200 ns
- Fall Time (tf): ≤ 50 ns
Buy the 2N3904TA ONSEMI NPN General-Purpose Amplifier | myMectronic
Purchase the ONSEMI 2N3904TA NPN General-Purpose Amplifier securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy ONSEMI 2N3904TA?
You can click on the BUY or RFQ button to purchase 2N3904TA from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 2N3904TA?
You can download the 2N3904TA datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 2N3904TA?
ONSEMI
