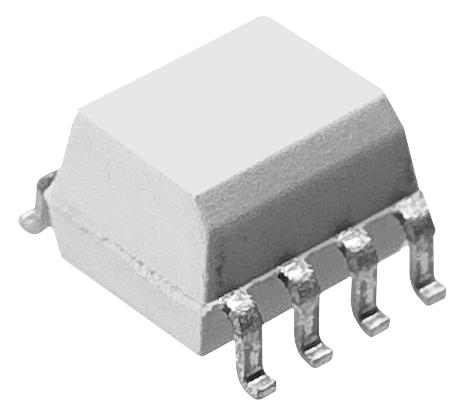

ONSEMI FOD0721R2 Logic Gate Optocoupler
The FOD0721R2 is a high-speed, single-channel 8-pin logic gate optocoupler utilizing Optoplanar® technology and optimized integrated circuit design. It features a high-efficiency AlGaAs LED-driven CMOS detector with an integrated photodiode, transimpedance amplifier, and voltage comparator with output driver. This configuration ensures a minimum of 20 kV/μs common-mode noise rejection (CMR). The device offers fast data transmission with a maximum propagation delay of 40 ns, pulse width distortion of 6 ns, and is compatible with 5V CMOS logic systems. Designed for applications in communications, networking, test and measurement, and industrial automation, it provides reliable electrical isolation and high-speed switching. Market demand has resulted in extended lead times, so delivery dates may fluctuate. This product is exempt from discounts.
ONSEMI FOD0721R2 Logic Gate Optocoupler Specifications:
- Propagation Delay: 40 ns max
- Pulse Width Distortion: 6 ns
- Data Rate: 25 Mbit/sec
- Common Mode Noise Rejection: ≥20 kV/μs
- Isolation Voltage: 3750 VACrms for 1 min
- Operating Temperature Range: -40°C to 100°C
- Supply Voltage: 5V ±0.5V
- Input Voltage: 0 to 6V
- Output Voltage: Vout = 0.1 V min, Vout = 5.0 V max
- Output Current: 9 mA max
- Power Dissipation: 90 mW (input), 70 mW (output)
- Package: 8-pin small outline
- Lead Solder Temperature: 260°C for 10 seconds
- Certifications: UL1577, IEC60747-5-2 pending
Buy the Fairchild Series FOD Family Logic Gate Optocoupler: FOD0721R2
Order the Fairchild FOD0721R2 now to experience superior electrical isolation and high-speed data transfer suited for industrial automation, communication networks, and measurement systems. Designed with Optoplanar® technology, it offers a high common-mode noise rejection of 20kV/μs, a fast 40 ns propagation delay, and compatibility with 5V CMOS logic. Its robust 3750 VACrms isolation voltage ensures safety and reliability. With an 8-pin small outline package, this device guarantees durability, efficiency, and easy integration into your electronic systems. Purchase online today for quick delivery and premium quality assurance.
Get Fairchild FOD0721R2 high-speed optocoupler today—engineered for precise isolation and rapid data transmission in industrial and communication systems.
Frequently Asked Questions
Where can I buy ONSEMI FOD0721R2?
You can click on the BUY or RFQ button to purchase FOD0721R2 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FOD0721R2?
You can download the FOD0721R2 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FOD0721R2?
ONSEMI
